Appendix 1 Note of Fingerprint
Warning
Before you press your finger on the collector, please make sure your finger is clean
without oil or water.
When you record fingerprint, place finger flat at the center of collector.

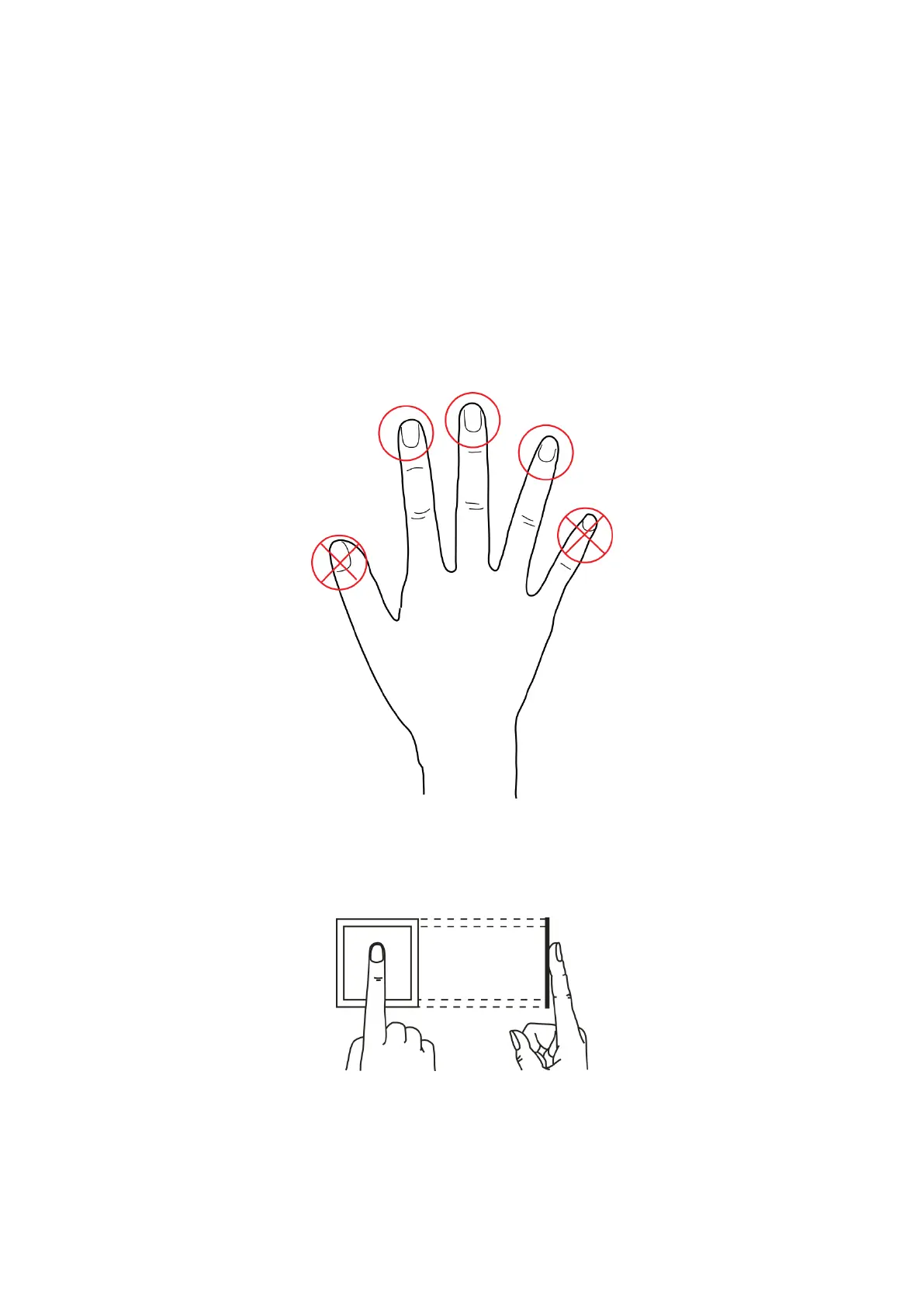

Recommended Fingerprint
Index finger, middle finger and ring finger are recommended.
Figure A-1
How to Press
Correct method
Figure A-2
Wrong method

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology ASA1222E-S and is the answer not in the manual?

Dahua Technology ASA1222E-S Specifications

General IconGeneral
TypeBasic access control reader
CertificationCE, FCC
Product colorBlack
LED indicatorsStatus
Number of users1000 user(s)
Access code reader-
Fingerprint readerYes
Authentication typePassword
Keypad number of keys16
Fingerprint sensor typeOptical
Flash memory0.08 GB
Display typeTFT
Display diagonal2.4 \
Maximum resolution320 x 240 pixels
DC voltage range5 - 5 V
Power consumption1000 mA
Operating temperature (T-T)-10 - 55 °C
Operating relative humidity (H-H)5 - 95 %
Front cameraNo
Weight and Dimensions IconWeight and Dimensions
Depth120 mm
Width175 mm
Height23 mm
Weight350 g
