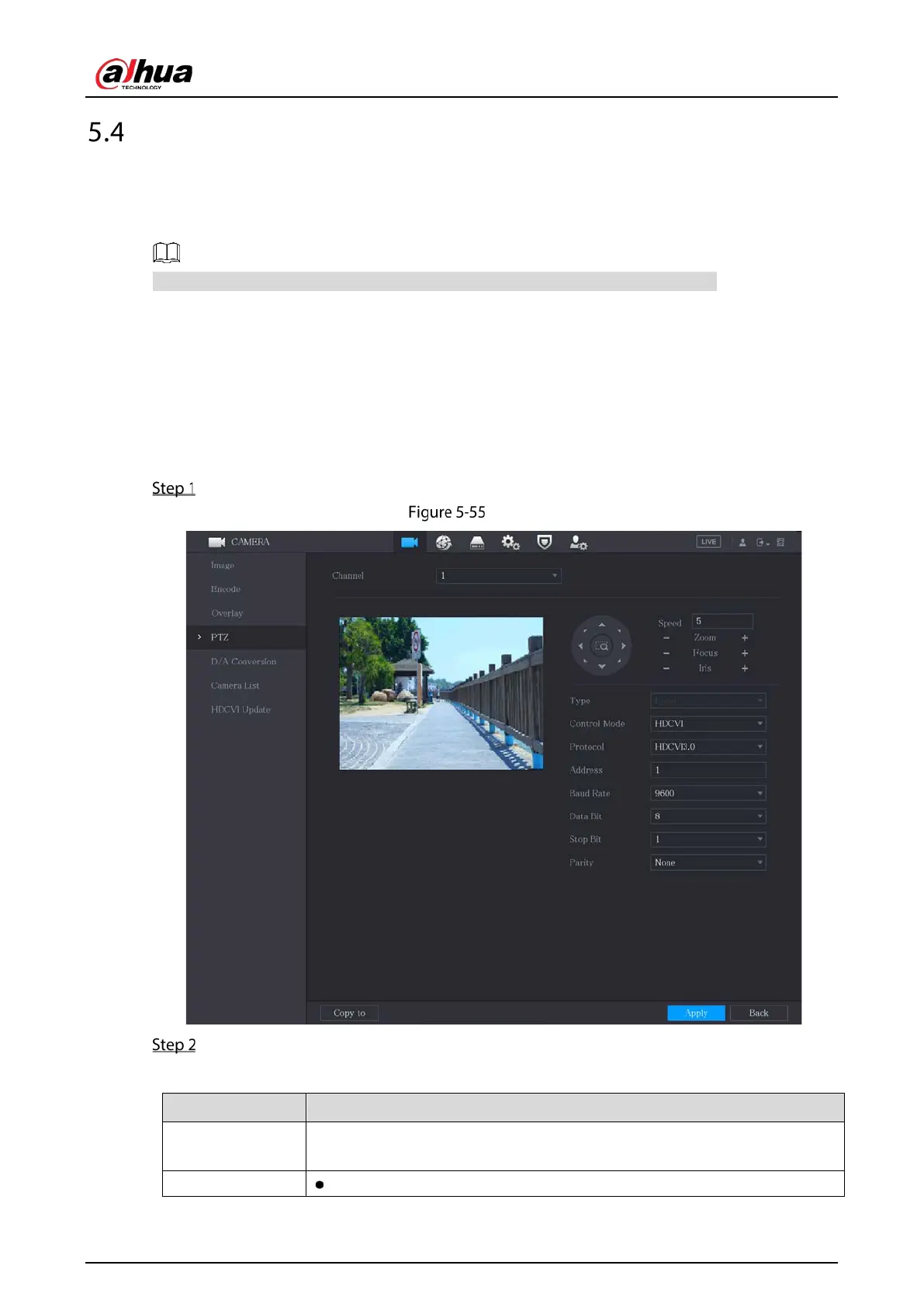

Users Manual
105
Controlling PTZ Cameras
PTZ is a mechanical platform that carries a camera and a protective cover and performs overall control
remotely. A PTZ can move in both horizontal and vertical direction to provide all-around view to the
camera.
Before operating PTZ, ensure the network connection between PTZ and the Device.
5.4.1 Configuring PTZ Connection Settings
You need to configure the PTZ connection settings before use.
Local connection: RS-485 Port for connecting speed dome or coaxial cable for connecting coaxial
camera.
Remote connection: local area network.
Select Main Menu > CAMERA > PTZ.
PTZ
Configure the settings for the PTZ connection parameters.
Table 5-21 PTZ parameters
Parameter
Description
Channel
In the
Channel
list, select the channel that you want to connect the PTZ
camera to.
Type Local: Connect through RS-485 port or coaxial cable.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B04H and is the answer not in the manual?

Dahua Technology DH-XVR1B04H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity8 channels
Multi-display modes4, 8
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported1920×1080, 1280×1024, 1280×720
BNC input ports8
BNC output ports1
USB 2.0 ports quantity2
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
Weight and Dimensions IconWeight and Dimensions
Depth192 mm
Width197 mm
Height41 mm
Weight540 g
