Dahua Technology DH-XVR1B04H User Manual

User’s Manual
100
Select channels
Click OK.

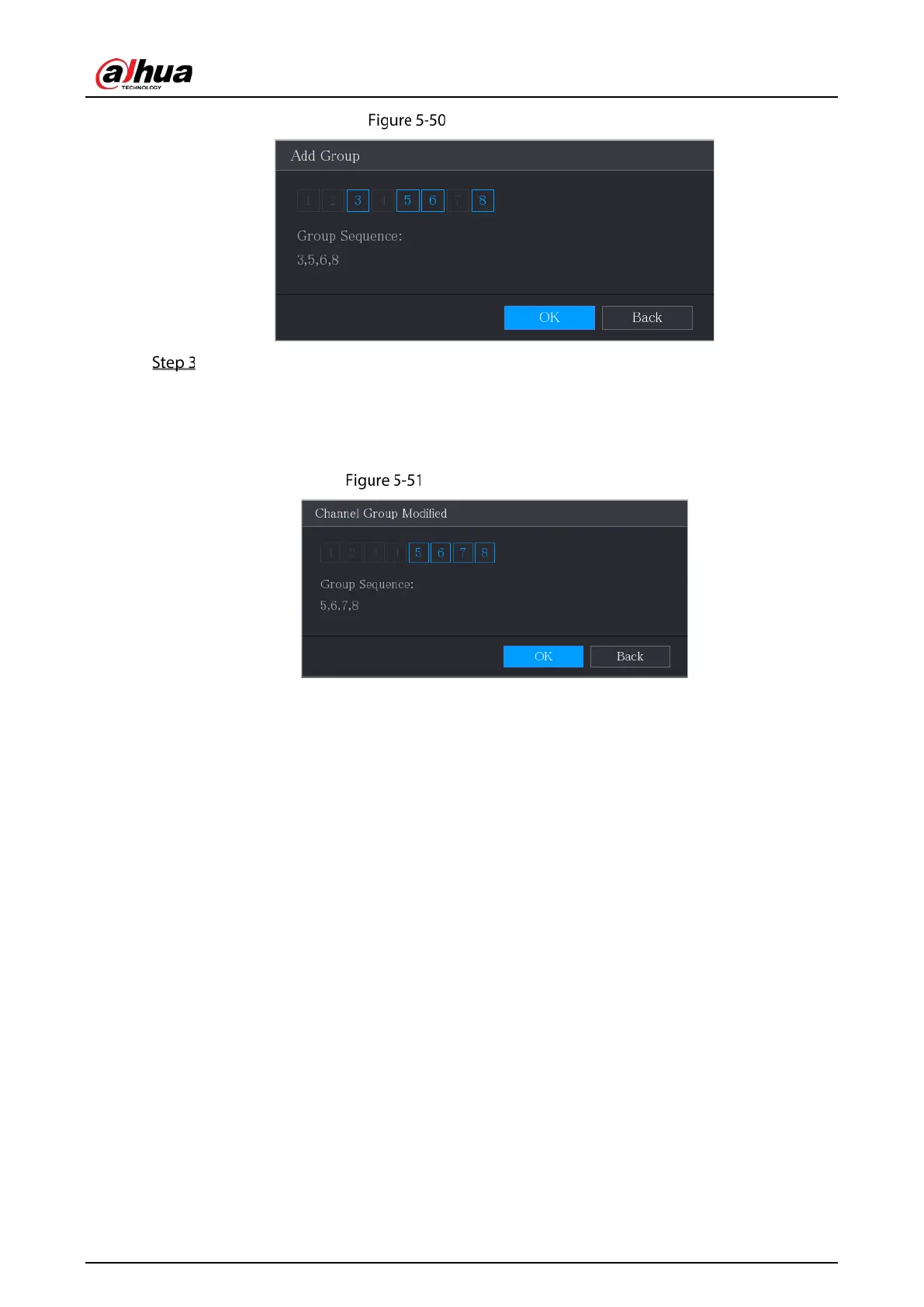

Modifying a Channel Group
Double-click on a channel group, the Channel Group Modified interface is displayed.
You can modify channel group and click
OK to complete the settings.
Modify channel group
5.2.9 Quick Operation Bar
You can quickly access to the function modules on function titles and setting menu through shortcut
icons on quick operation bar.
This topic uses
ALARM and CAMERA an example to show you how to quickly access other modules.
Shortcut Icons on Function Titles
Click ALARM to enter the ALARM interface.

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
