Users Manual
121
Privacy masking

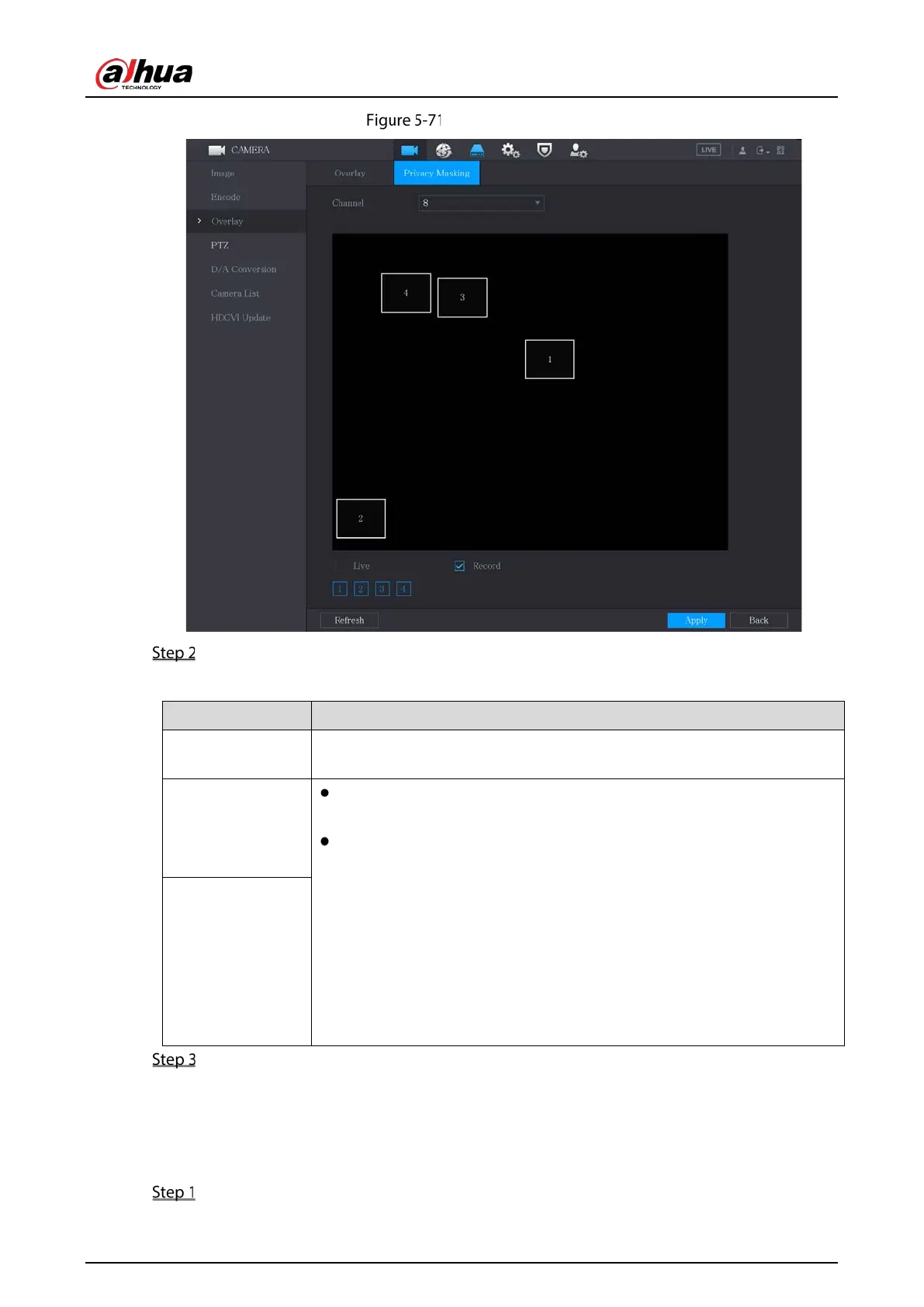

Configure the settings for the covered area parameters.
Table 5-28 Privacy masking parameters
Parameter
Description
Channel
In the
Channel
list, select the channel that you want to configure the
settings for.
Live
Preview: Select the
Live
check box to apply the configured covered
block to the selected channel window in the live view screen.
Record: Select the
Record
check box to apply the configured covered
block to the selected channel window during recording.
To configure covering block, do the following:
1. Select the
Live
check box or the
Record
check box, or select the both.
The "1, 2, 3, 4" buttons are activated.
2. Click the buttons to select blocks.
A triangle solid black block is displayed.
3. Drag the block to the area that you want to cover and adjust the size of
the block. You can configure total 4 covered blocks.
Record
Click Apply to complete the settings.
5.5.5 Configuring Channel Type
You can configure the channel type as Analog or IP channel.
Select Main Menu > CAMERA > Channel Type.
