Users Manual
52

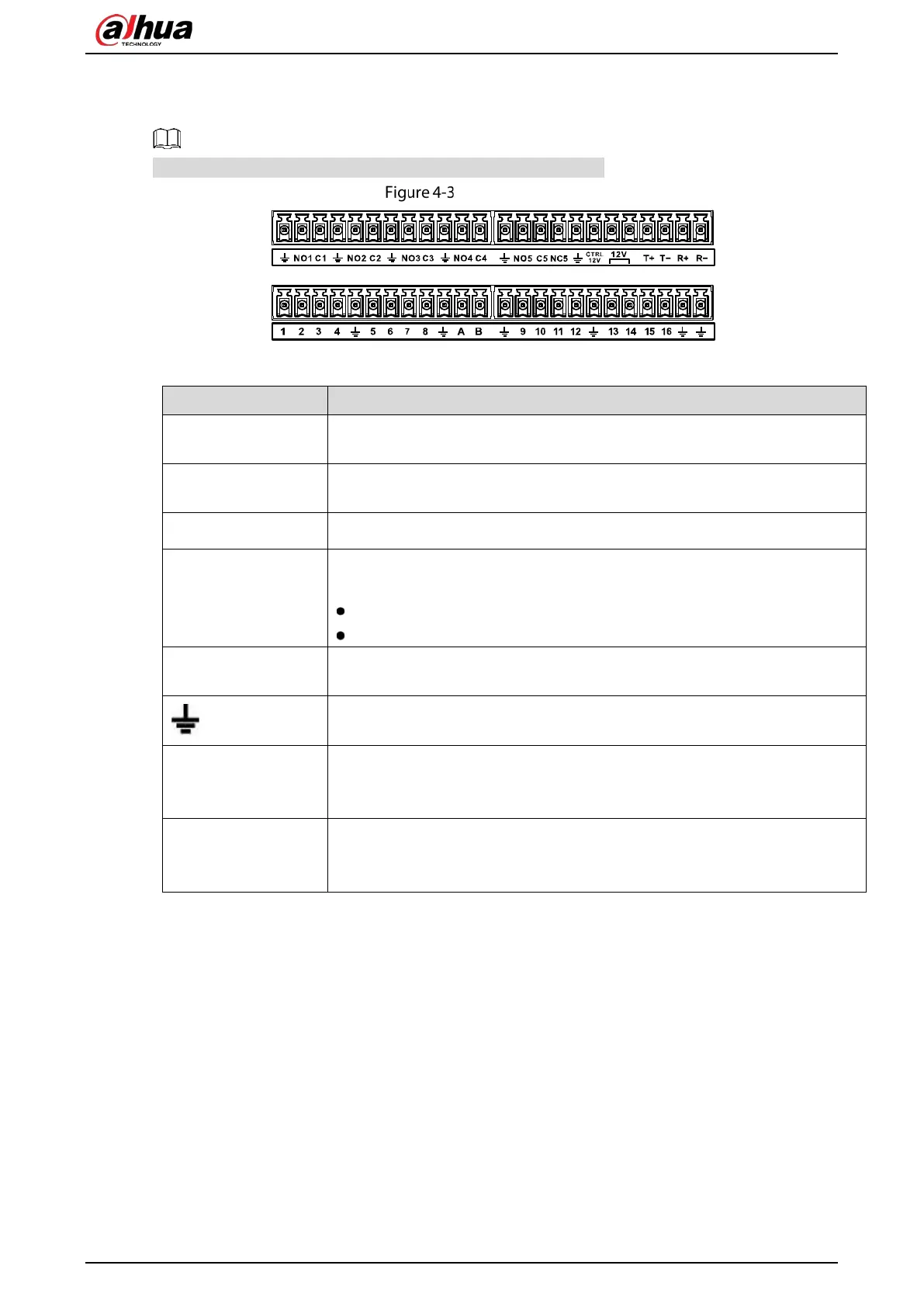

4.3.1 Introducing Alarm Port
The alarm input ports are dependent on the model you purchased.
Alarm ports
Table 4-1 Alarm port description
Icon
Description
1,2,3,4,5,6,7,8,9,10,11,
12,13,14,15,16
ALARM 1 to ALARM 16. The alarm becomes active in low voltage.
NO1 C1, NO2 C2, NO3
C3, NO4 C4
There are four groups of normal open activation output (on/off button).
NO5 C5 NC5 There is one group of normal open activation output (on/off button).
CTRL 12V
Control power output of the 6th alarm output channel. Voltage current: 500
mA.
When there is an alarm output, close the power output.
When the alarm is cancelled, open the power output.
+12V
Rated current.
Voltage current: 500 mA.
Ground cable.
485 A/B
485 communication port. They are used to control devices such as decoder.
120 Ω should be parallel connected between A, B lines if there are too many
PTZ decoders.
T+, T-, R+, R-
Four-wire full-duplex RS-485 port.
T+ T-: output wire.
R+ R-: input wire.
4.3.2 Alarm Input
Refer to the following figure for more information.
Grounding alarm inputs which includes NO (Normally Open) and NC (Normally Closed) type.
Parallel connect COM end and GND end of the alarm detector (Provide external power to the
alarm detector).
Parallel connect the Ground of the DVR and the ground of the alarm detector.
Connect the NC port of the alarm sensor to the DVR alarm input (ALARM).
Use the same ground with that of DVR if you use external power to the alarm device.
