XVR5104HE-X1/DH-XVR5104H-X-4P/DH-XVR5108H-X-8P

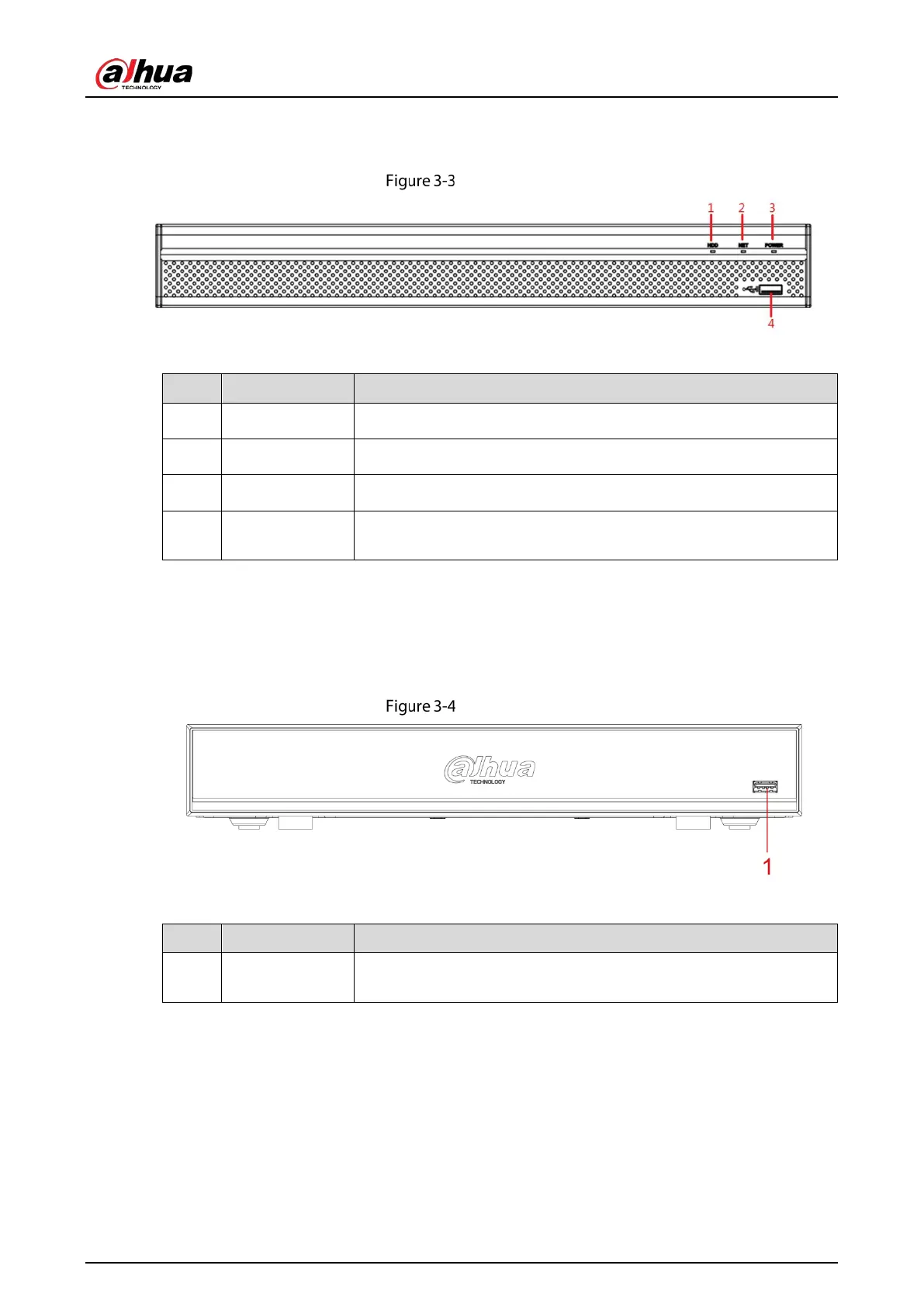

Front panel
Table 3-3 Front panel description
No.
Port Name
Function
1 HDD Glows blue when HDD status is abnormal.
2 NET Glows blue when network status is abnormal.
3 POWER Glows blue when the power is connected properly.
4 USB port
Connects to peripheral devices such as USB storage device,
keyboard, and mouse.
3.1.4 DH-XVR7104HE-4KL-X/DH-XVR7108HE-4KL-X/DH-XVR7116HE-
4KL-X/DH-XVR7108HE-4K-X/DH-XVR7108HE-4K-X2
Front panel
Table 3-4 Front panel description
No.
Port Name
Function
1 USB port
Connects to peripheral devices such as USB storage device, keyboard
and mouse.
3.1.5 DH-XVR4216AN-X/DH-XVR4232AN-X/DH-XVR5216AN-X/DH-
XVR5232AN-X/DH-XVR5208AN-4KL-X/DH-XVR5216AN-4KL-X/DH-
XVR5216A-X/DH-XVR5208AN-4KL-X-8P/DH-XVR5216AN-4KL-X-
16P/DH-XVR5216AN-X-16P/DH-XVR7208A-4K-X2
