User’s Manual
122
Channel type
Configure the channels.
 Analog Channel: Select the transmission medium such as CVI, AHD, CVBS, and then
follow the onscreen instructions to complete the settings.
 IP Channel: You can enable the IP channels by disabling the corresponding analog
channels. The Device also provides expanded IP channels for your use, such as the

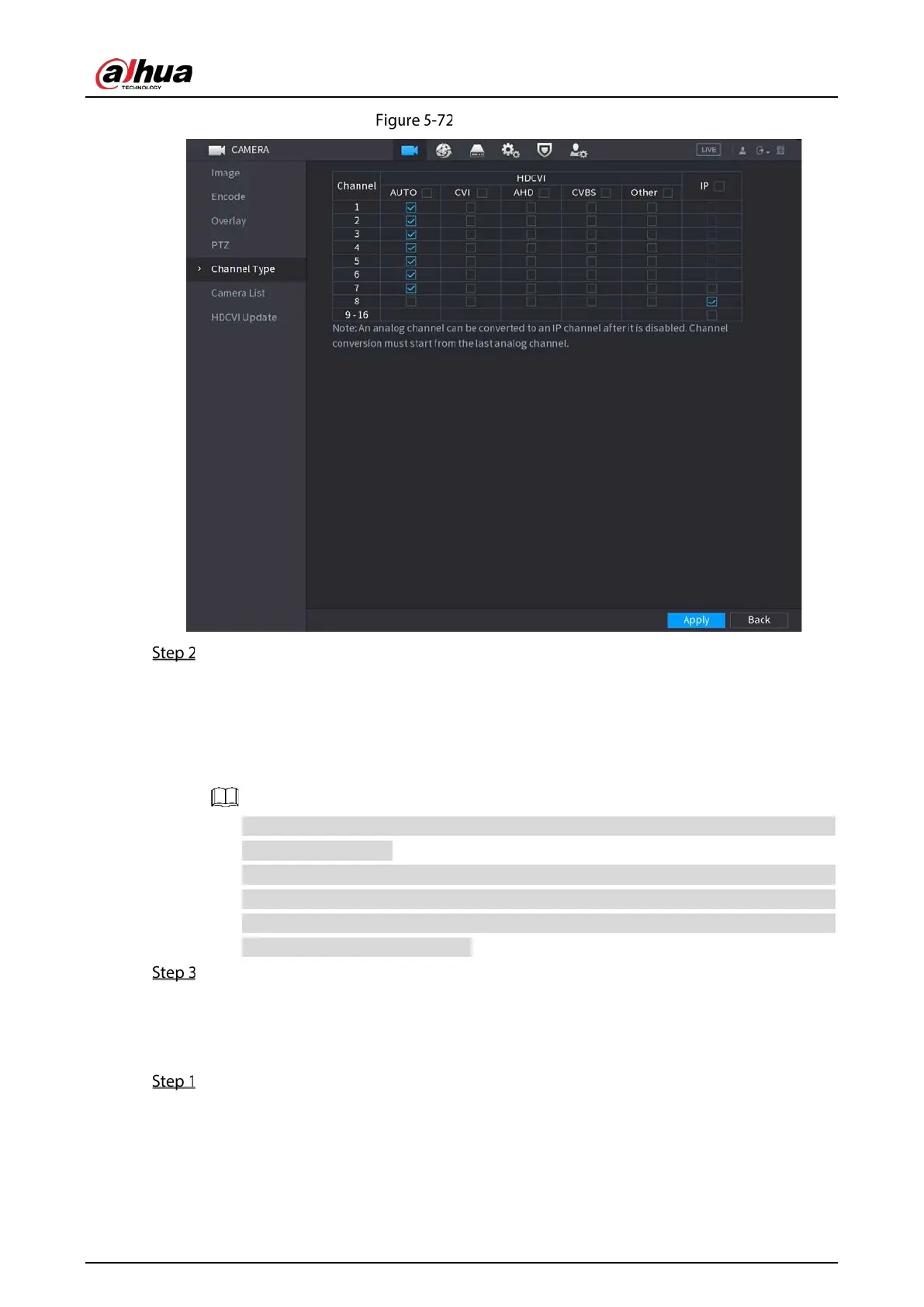

channel 8 in Figure 5-72.
 The 17–32 channels are only for IP camera and the range changes dependent on the
model you purchased.
 The channel selection for analog camera or IP camera are in sequence, for example, if you
want to select channels for IP camera, you need to select from the last channel number
Channel 16 first, which means, you cannot jump to select the channel 15 directly until
you have selected the channel 16.
Click Apply and follow the onscreen instructions to complete the settings.
5.5.6 Upgrading Coaxial Camera
Select Main Menu > CAMERA > HDVCI Update.

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
