Dahua Technology DH-XVR1B04H User Manual

User’s Manual
87
supports two-way talk.
 Click , the icon switches to , the two-way talk of the remote device is turned on. The two-
way talk of other digital channels is disabled.
 Click to cancel the two-way talk. The two-way talk of other digital channels is resumed.
5.2.2.9 Adding Camera (Digital channel only)
You can view the information of remote devices and add new remote devices to replace the current
connected devices.
By clicking , the
Camera List interface is displayed. For details about adding the remote devices,
see "5.6 Configuring Remote Devices."

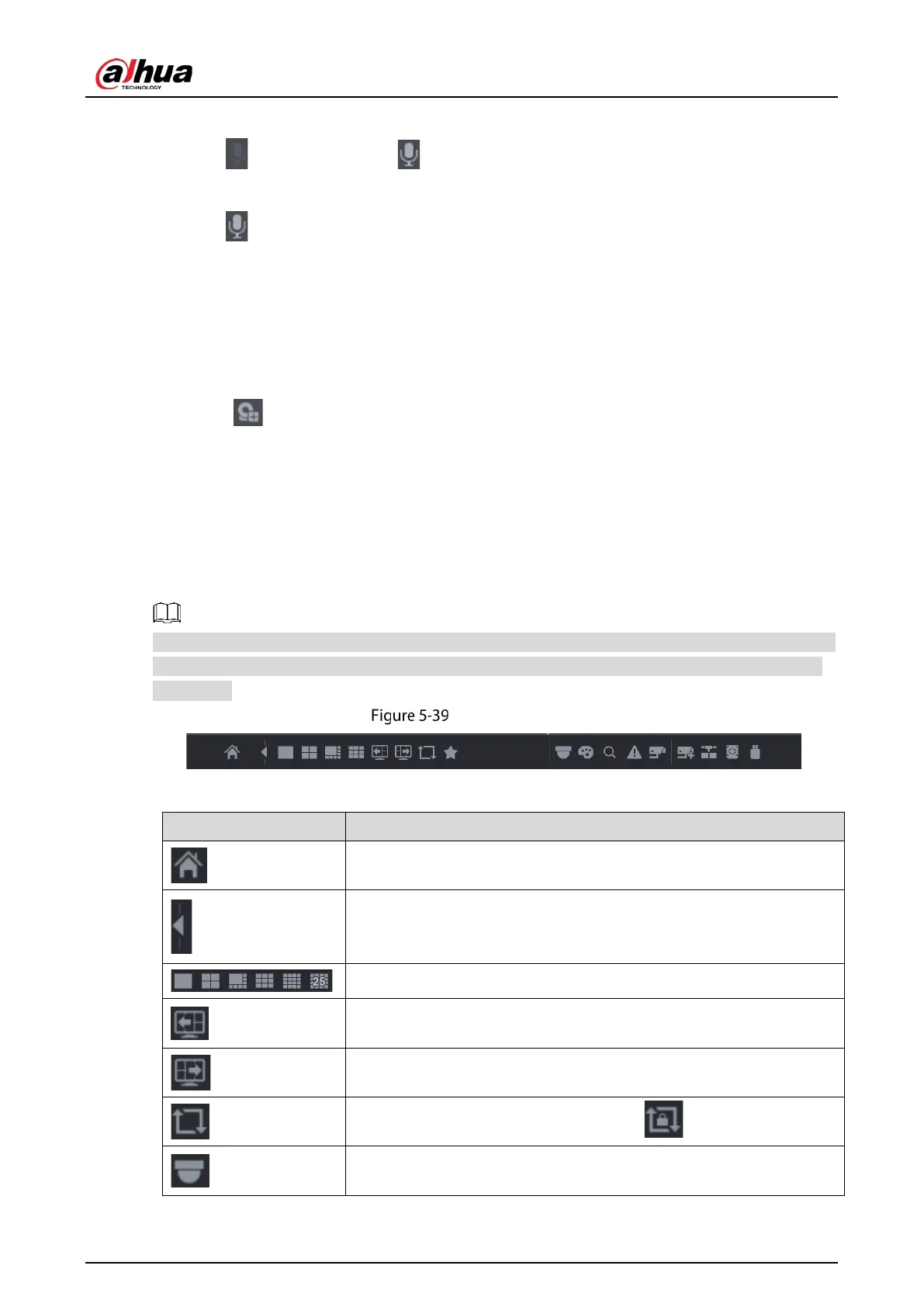

5.2.3 Navigation Bar
You can access the functions to perform operations through the function icons on the navigation bar.
For example, you can access Main Menu and switch window split mode. See Figure 5-39.
The navigation bar is disabled by default. It does not appear in the live view screen until it is enabled.
To enable it, select Main Menu > SYSTEM > General > Basic, enable the Navigation Bar, and then
click Apply.
Navigation bar
Table 5-12 Navigation bar description
Icon
Function
Open Main Menu.
Expand or condense the navigation bar.
Select view layout.
Go to the previous screen.
Go to the next screen.
Enable tour function. The icon switches to .
Open the PTZ control panel. For details, see "5.4 Controlling PTZ
Cameras."

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
