Users Manual
43
No.
Port Name
Function
16 HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output stops.
17 GND Ground.

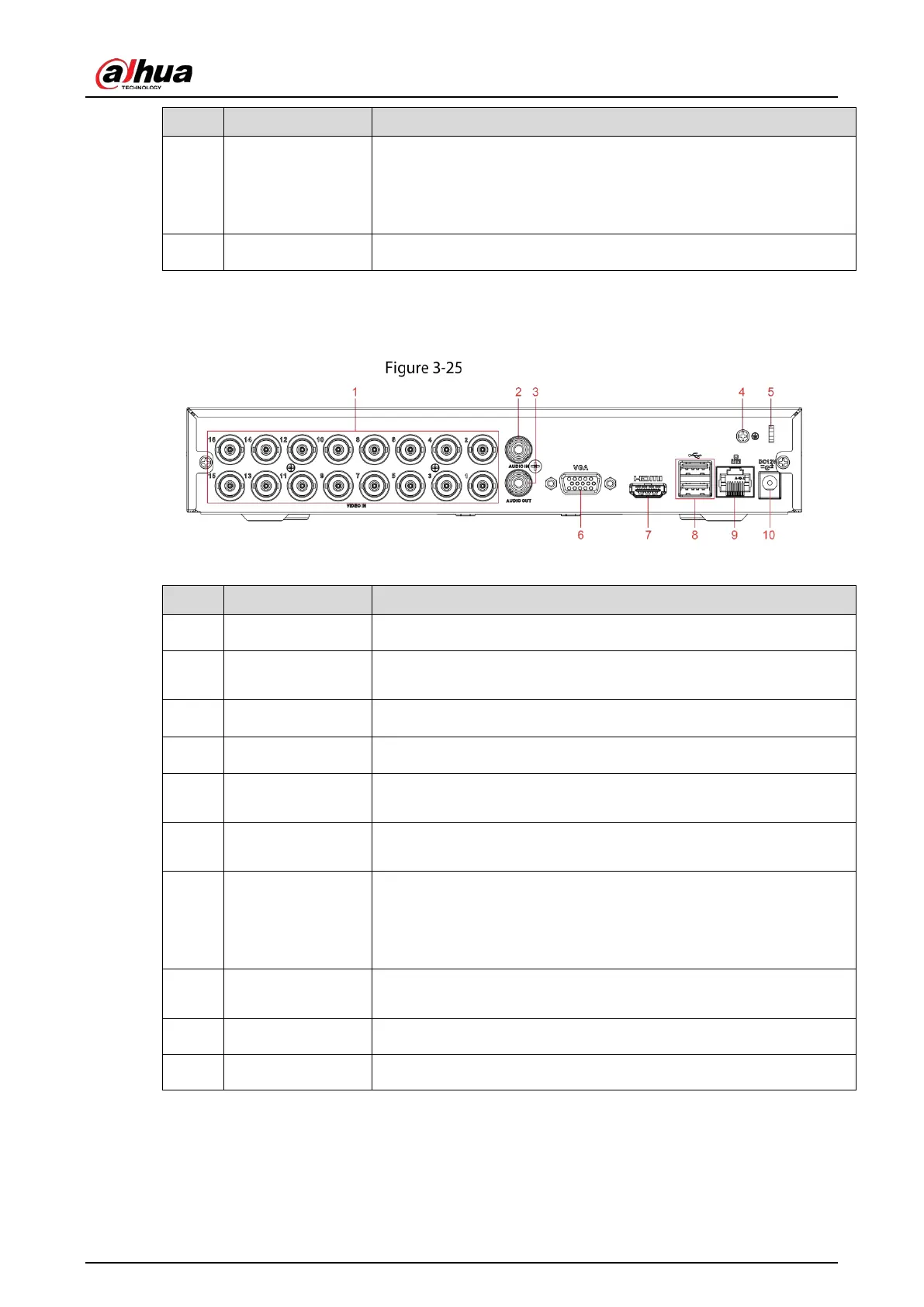

3.2.13 DH-XVR1B08H/DH-XVR1B16/DH-XVR1B16H
Rear panel
Table 3-22 Rear panel description
No.
Port Name
Function
1 Video input port Connect to analog camera to input video signal.
2
Audio input port
Receives the analog audio signal output from the devices such as
microphone.
3 Audio output port Outputs the analog audio signal to the devices such as the sound box.
4 GND Ground.
5
Power cable
fastener
Use clamp to secure the power cable on the DVR in case there is any
loss.
6 VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
7 HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output stops.
8 USB port
Connects to the external devices such as keyboard, mouse, and USB
storage device.
9 Network port Connects to Ethernet port.
10 Power input port Inputs power.
3.2.14 DH-XVR5104H-X-4P/DH-XVR5108H-X-8P

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B04H and is the answer not in the manual?

Dahua Technology DH-XVR1B04H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity8 channels
Multi-display modes4, 8
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported1920×1080, 1280×1024, 1280×720
BNC input ports8
BNC output ports1
USB 2.0 ports quantity2
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
Weight and Dimensions IconWeight and Dimensions
Depth192 mm
Width197 mm
Height41 mm
Weight540 g
