Dahua Technology DH-XVR1B04H User Manual

User’s Manual
268
Basic

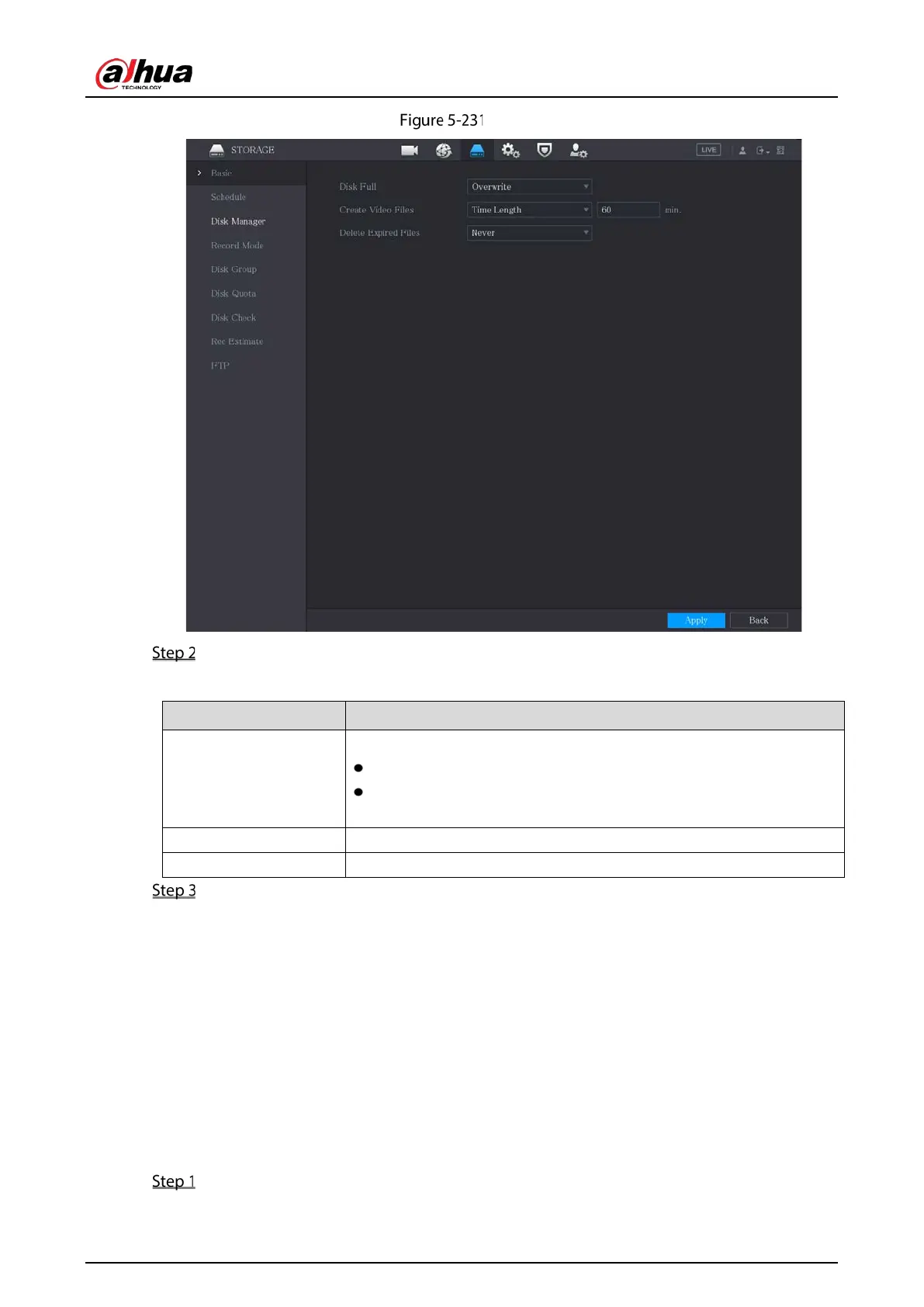

Configure the settings for the basic settings parameters.
Table 5-71 Basic settings
Parameter
Description
Disk Full
Configure the settings for the situation all the read/write discs are full.
Select
Stop
to stop recording
Select
Overwrite
to overwrite the recorded video files always from
the earliest time.
Create Video Files Configure the time length and file length for each recorded video.
Delete Expired Files Configure whether to delete the old files and if yes, configure the days.
Click Apply to complete the settings.
5.18.2 Configuring the Recording and Snapshot Schedule
The system starts recording and taking snapshot according to the configured schedule. For details, see
"5.1.4.9 Configuring Recorded Video Storage Schedule" and "5.1.4.10 Configuring Snapshot Storage
Schedule."
5.18.3 Configuring Disk Manager
You can view the HDD information, format HDD, and configure the HDD type through HDD manager.
Select Main Menu > STORAGE > Disk Manager.
In the table, you can view the information of current HDD, such as device name, HDD type,

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
