 When selecting MD&Alarm, the MD and Alarm check boxes will be cleared
respectively.

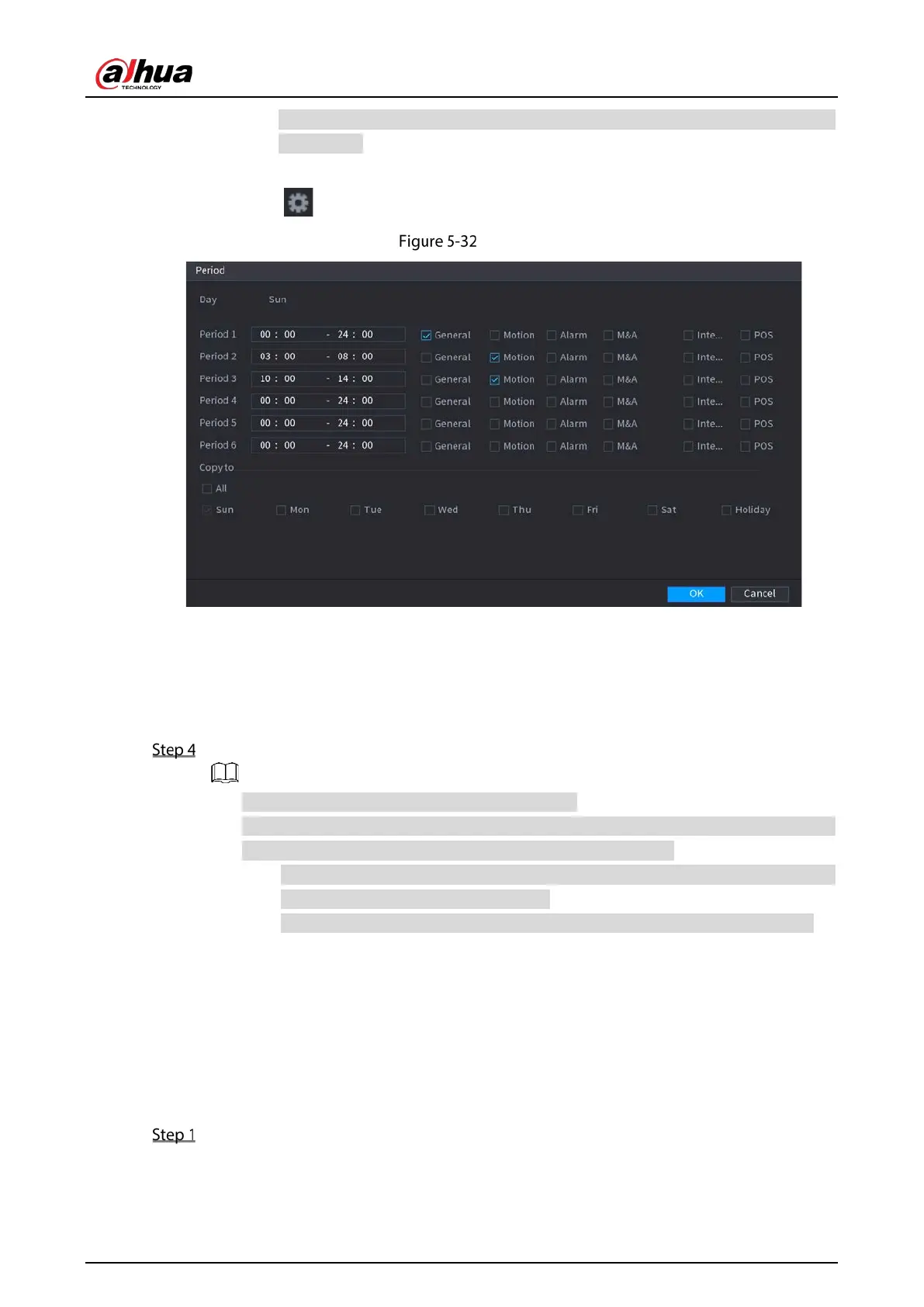

 Define the period by editing. Take Sunday as an example.
1) Click .
Period
2) Enter the time frame for the period and select the event check box.
 There are six periods for you to set for each day.
 Under
Copy to, select All to apply the settings to all the days of a week, or select
specific day(s) that you want to apply the settings to.
3) Click
OK to save the settings.
Click OK to complete the settings.
 Click Copy to copy the settings to other channels.
 After configuring the recording schedule settings, you need to perform the following
operations to start recording according to the defined schedule.
 Enable the alarm event and cofigure the settings for the recording channel. For
details, see "5.10 Alarm Events Settings."
 You need to enable the recording function, see "5.9.1 Enabling Record Control."
5.1.4.10 Configuring Snapshot Storage Schedule
You can configure the storage schedule for the snapshot such as channels to take snapshot, alarm
settings, and the armed period.
You can also configure snapshot storage settings by selecting
Main Menu > STORAGE > Schedule >
Snapshot.
After you have configured the video recording settings, on the Record interface, click Next.

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
