Users Manual
45

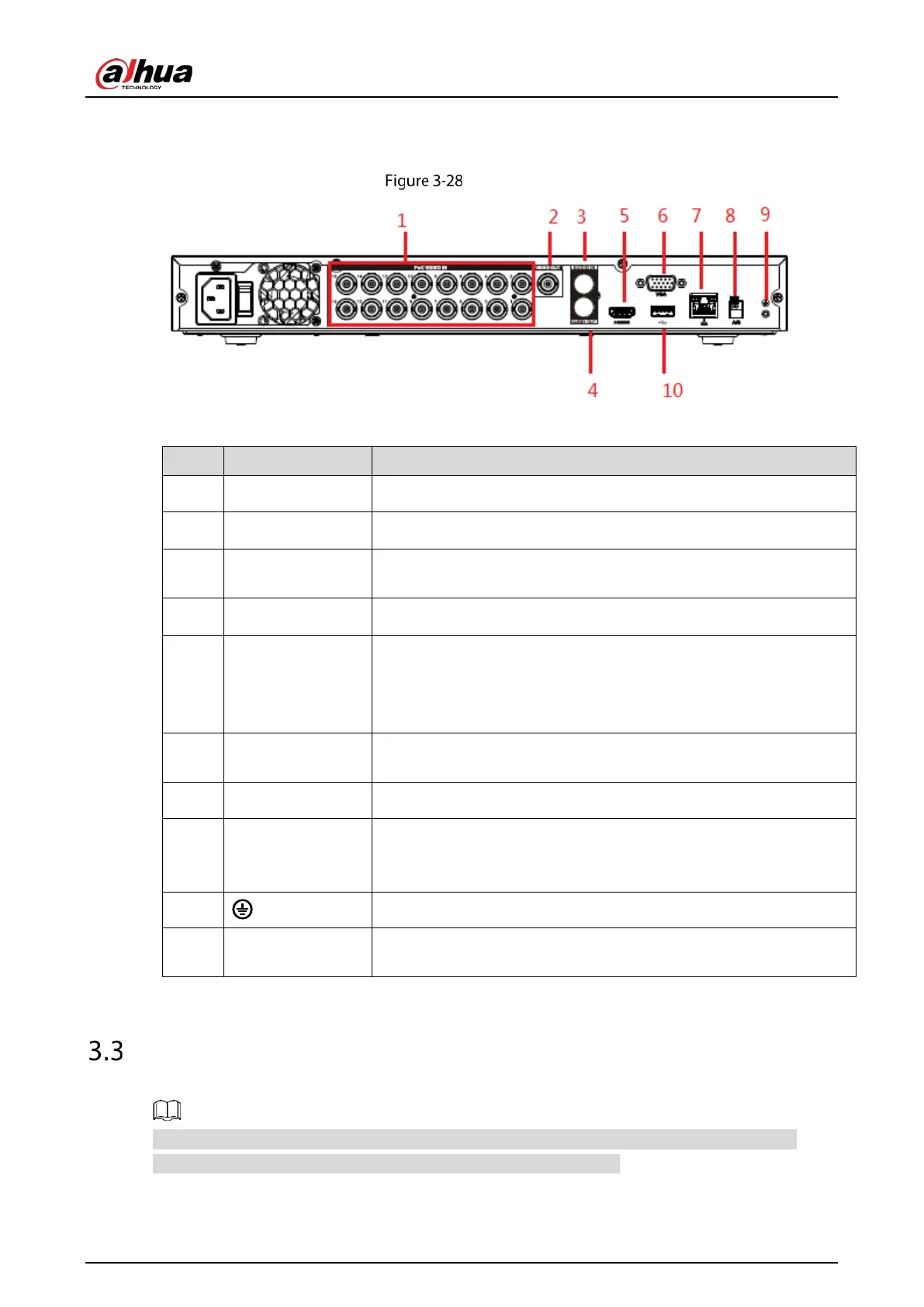

3.2.15 DH-XVR5216AN-X-16P
Rear panel
Table 3-24 Rear panel description
No.
Port Name
Function
1 Video input port Connect to general analog camera/PoC camera to input video signal.
2
Video output port
Connects to video output devices such as TV.
3
Audio input port
Receives the analog audio signal output from the devices such as
microphone.
4
Audio output port
Outputs the analog audio signal to the devices such as the sound box.
5 HDMI port
High definition audio and video signal output port. It outputs the
same video source as VGA. It supports 4K resolution output and
supports mouse operation and control.
Note when the HDMI output resolution is 4K, the VGA output stops.
6 VGA video output
Outputs analog video signal. It can connect to the monitor to view
analog video.
7 Network port Connects to Ethernet port.
8
RS-485
communication
port
Connects to the control devices such as speed dome PTZ. RS-485_A
port is connected by the cable A and RS-485_B is connected to the
cable B.
9
Ground terminal.
10 USB port
Connects to external devices such as USB storage device, keyboard
and mouse.
Remote Control Operations
Please note the remote control is not our standard accessory and might not be included in the
accessary bag. It is supplied dependent on the model you purchased.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B04H and is the answer not in the manual?

Dahua Technology DH-XVR1B04H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity8 channels
Multi-display modes4, 8
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported1920×1080, 1280×1024, 1280×720
BNC input ports8
BNC output ports1
USB 2.0 ports quantity2
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
Weight and Dimensions IconWeight and Dimensions
Depth192 mm
Width197 mm
Height41 mm
Weight540 g
