Dahua Technology DH-XVR1B04H User Manual

User’s Manual
147
No.
Function
Description
8
View Layout and
Channel Selection
In the
Camera Name
list, select the channel(s) that you want to play
back.
The window split is decided by how you select the channel(s). For
example, if you select one channel, the playback is displayed in
the single-channel view; if you select two to four channels, the
playback is displayed in the four-channel view. The maximum is
eight channels.
Click to switch the streams. indicates main stream,
and indicates sub stream.
9 Video Splice
Splice a section of recorded video and save it. For details about
splicing a recorded video, see "5.9.3.3 Clipping Recorded Video."
10 Backup
Back up the recorded video files. For details, see "5.9.3.4 Backing up
Recorded Video."
11 List Display
This area includes
Tag List
and
File List
.
: Click the
Tag List
button, the marked recorded video list is
displayed. Double-click the file to start playing.
: Click the
File List
button, the searched recorded video list is
displayed. You can lock the files. For details, see "5.9.8 Using the
File List."
12 Full Screen
Click to display in full screen. In the full screen mode, point to
the bottom of the screen, the time bar is displayed. Right-click on the
screen to exit full screen mode.
13 Time Bar Unit
You can select 24hr, 2hr, 1hr, or 30min as the unit of time bar. The
time bar display changes with the setting.

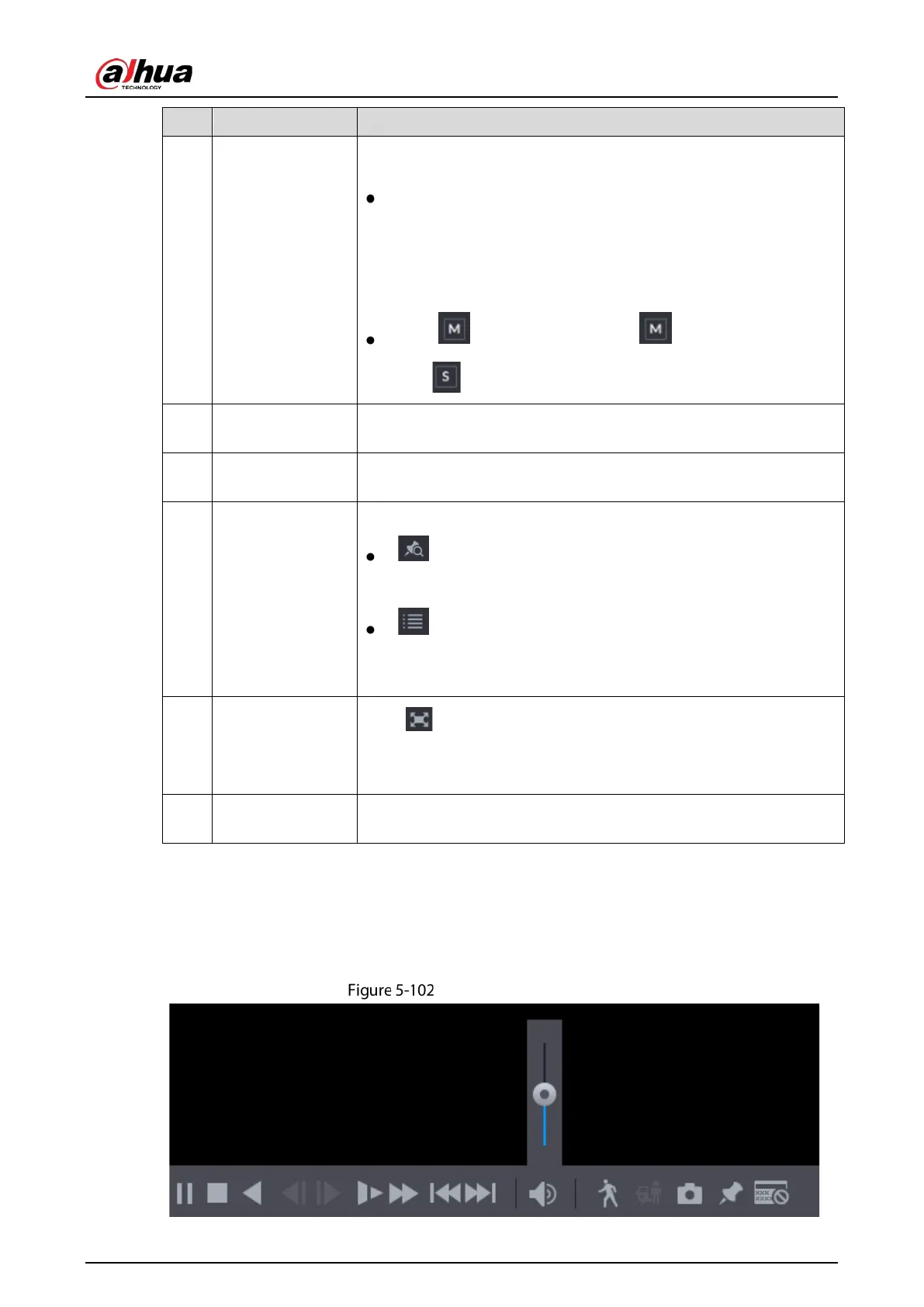

5.9.3.1 Introducing Playback Controls Bar
You can perform the operations such as control the speed of playback, add mark, and take snapshots
through the playback controls bar.
Playback control bar

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
