 Click Default to restore the default setting.
 Click Copy to, in the Copy to dialog box, select the additional channel(s) that you want to copy
the local alarm settings to, and then click Apply.
5.10.2.2 Configuring Alarms from Alarm Box
You can connect the alarm box to the RS-485 port of the Device. When the alarm is detected by the
alarm box, the alarm information will be uploaded to the Device, and then the Device outputs the
alarms in the way that you configure in this section.
Select Main Menu > ALARM > Alarm-in Port > Alarm Box.

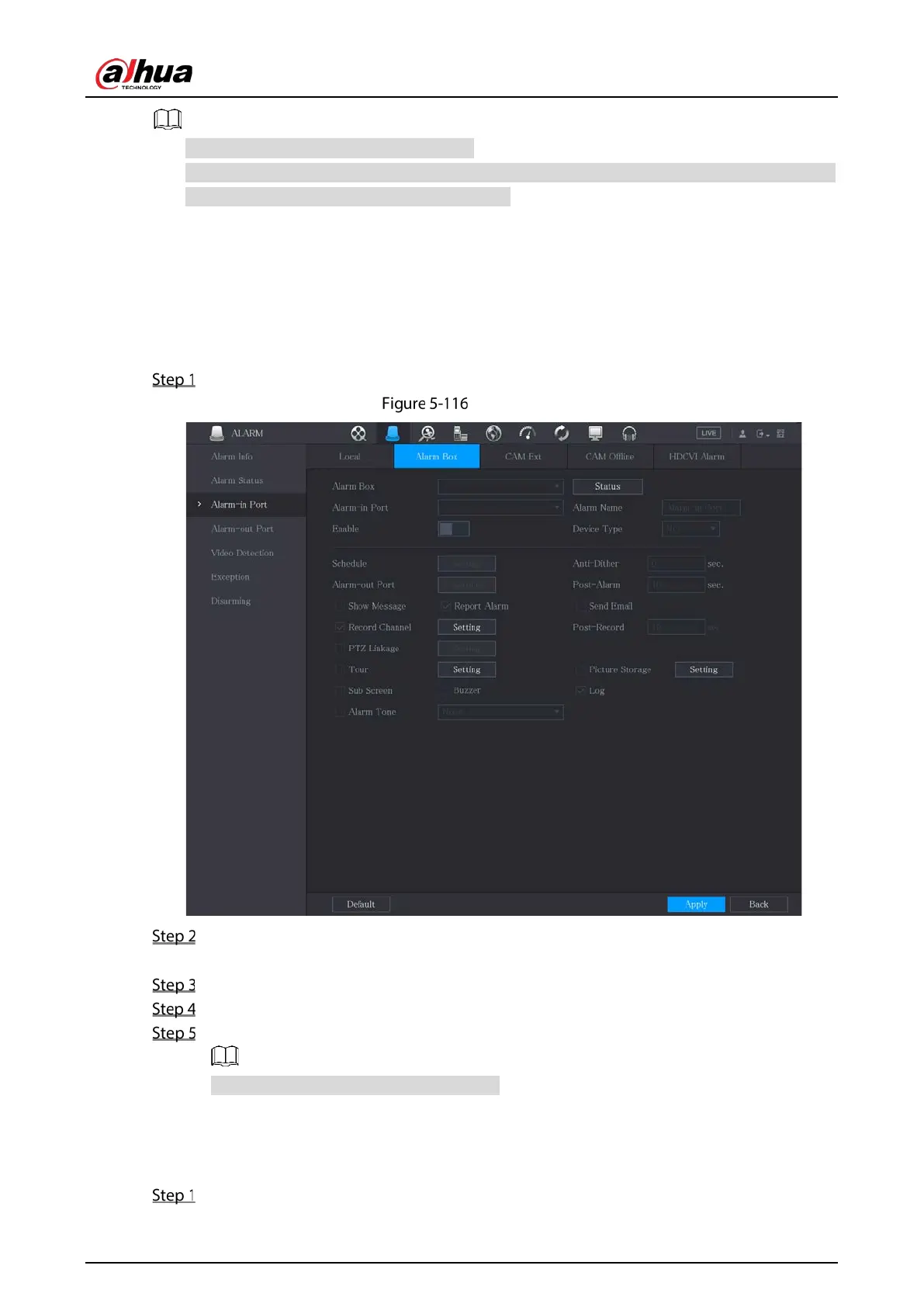

Alarm box
In the Alarm Box list, select the alarm box number corresponding to the address number
configured by the DIP switch on the Alarm Box.
In the Alarm-in Port list, select the alarm input port on the Alarm Box.
Configure the settings for other parameters of the Alarm Box. For details, see Table 5-36.
Click Apply to complete the settings.
Click Default to restore the default setting.
5.10.2.3 Configuring Alarms from External IP Cameras
Select Main Menu > ALARM > Alarm-in Port > CAM Ext.
