Dahua Technology DH-XVR1B04H User Manual

User’s Manual
194
Parameter
Description
A
(right to left), and
Both
.
Target Filter
Click to draw areas to filter the target.
You can configure two filtering targets (maximum size and minimum size).
When the target that is crossing the tripwire is smaller than the minimum
size or larger than the maximum size, no alarms will be activated. The
maximum size should be larger than the minimum size.
Preset In the
Preset
list, select the preset that you want to configure the rule for.
4) Drag to draw a tripwire. The tripwire can be a straight line, broken line or polygon.
5) Click
OK to save the settings.

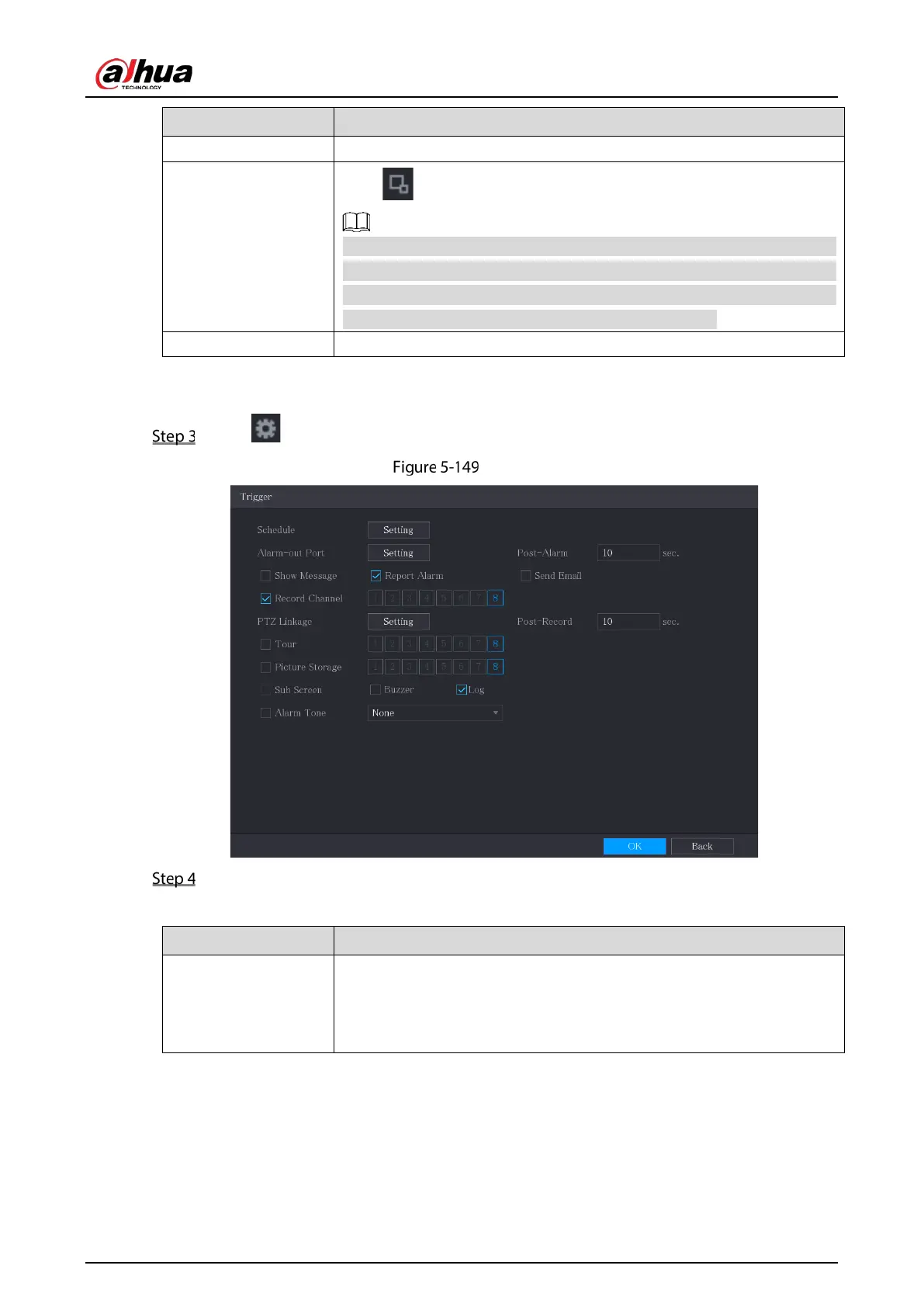

Click to set the actions to be triggered.
Trigger
Configure the triggering parameters.
Table 5-47 Trigger parameters
Parameter
Description
Schedule
Click
Setting
to display set interface.
Define a period during which the alarm linkage is active. For details, see
"Setting Motion Detection Period” section in "5.10.4.1 Configuring
Motion Detection Settings."

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
