User’s Manual
307

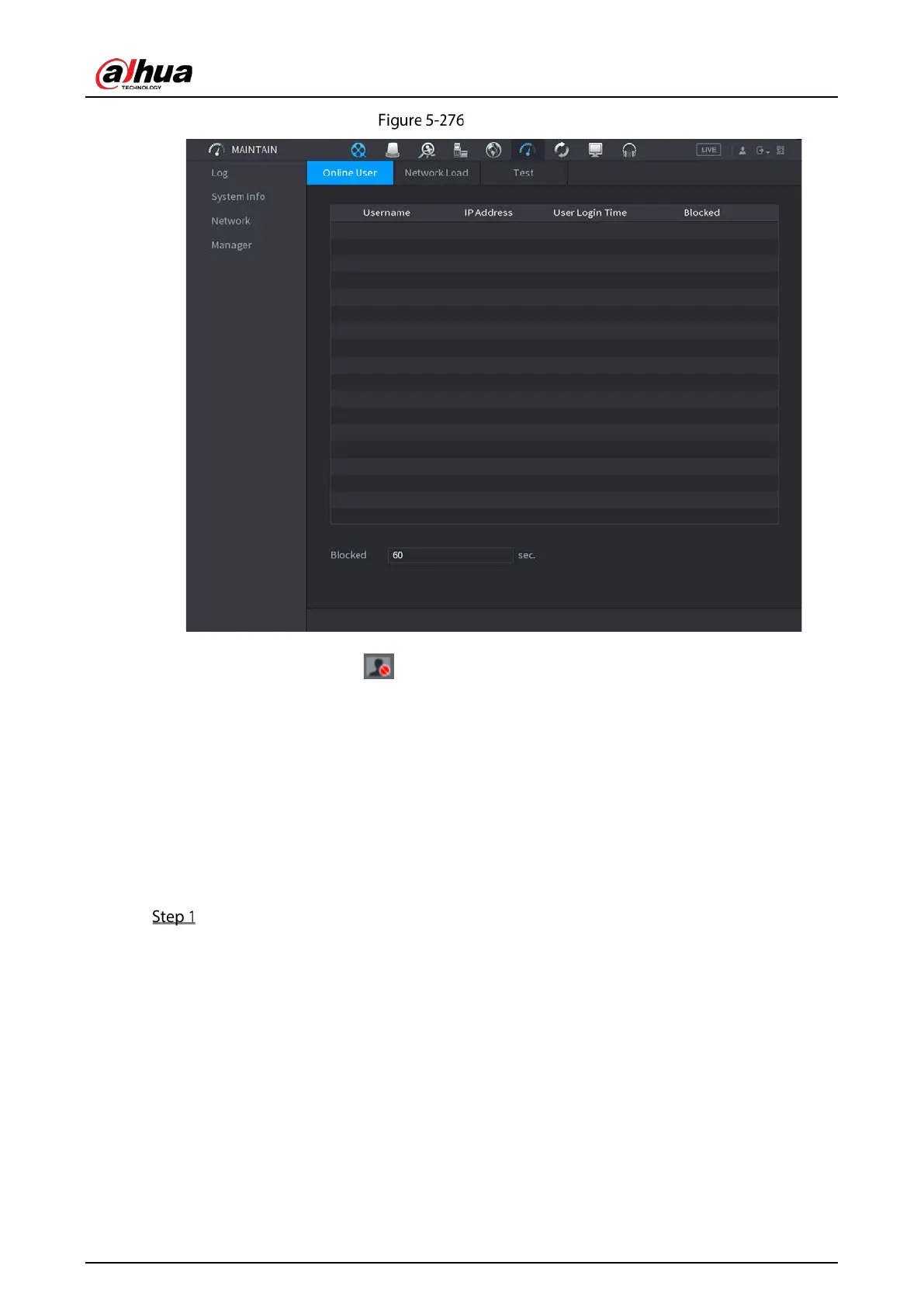

Online user
To block an online user, click and then enter the time that you want to block this user. The
maximum value you can set is 65535.
The system detects every 5 seconds to check whether there is any user added or deleted, and update
the user list timely.
5.21.4.2 Viewing the Network Load
Network load means the data flow which measures the transmission capability. You can view the
information such as data receiving speed and sending speed.
Select Main Menu > MAINTAIN > Network > Network Load.

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
