Users Manual
344

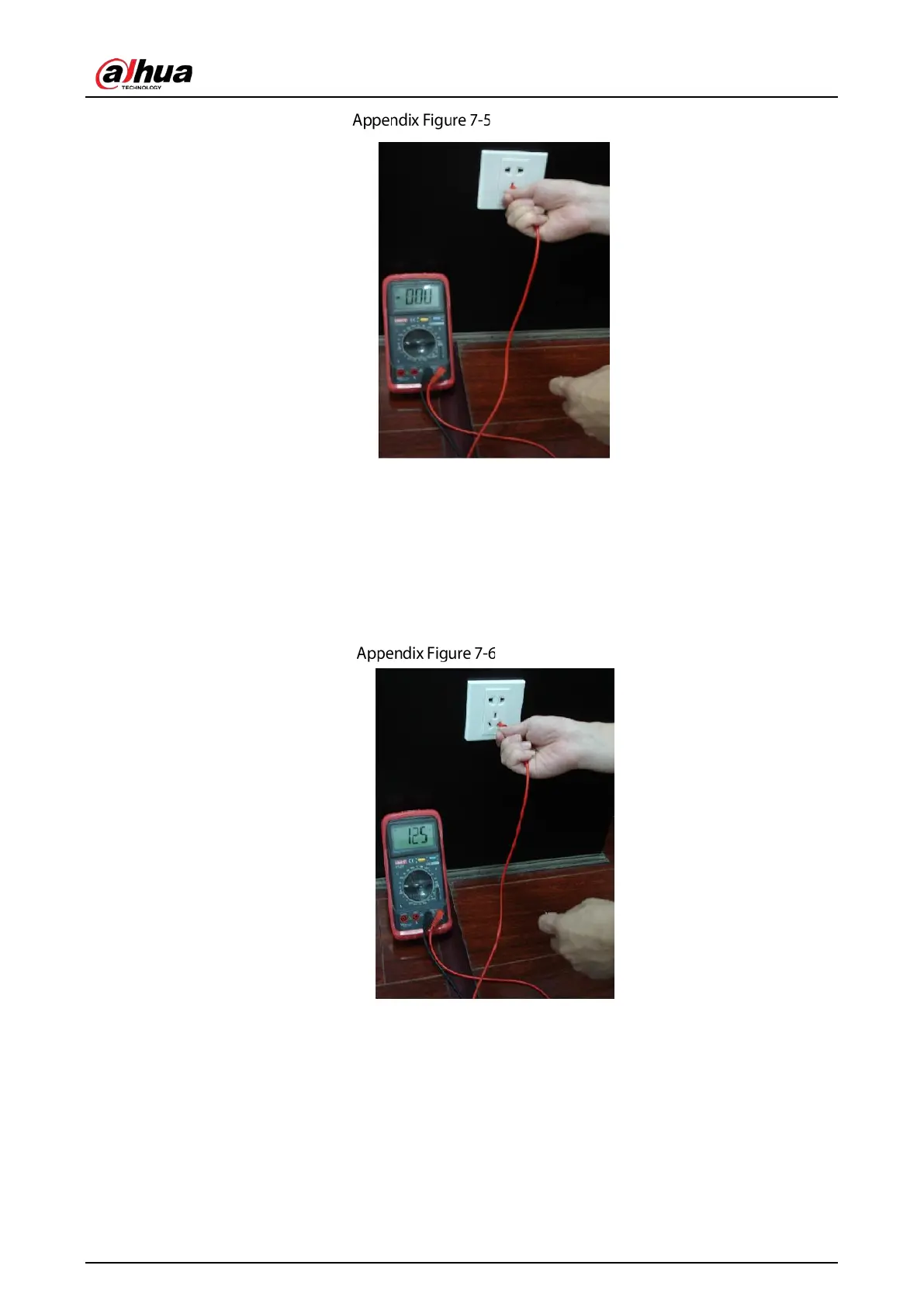

Earth cable
For L (live cable)
Turn the digital multimeter to 750 VAC, use your one hand to hold the metal end, and then use the
other hand to insert the pen to the L port of the socket. See the following figure. If the multimeter
shows 125, then you can see current live cable connection is standard. If the value is less than 60, then
you can know current live cable connection is not proper or it is not the live cable at all.
Live cable
For N (Neutral cable)
Turn the digital multimeter to 750 VAC, use your one hand to hold the metal end, and then use the
other hand to insert the pen to the N port of the socket. See the following figure. If the multimeter
shows 0, then you can see current N cable connection is standard. If the value is more than 10, then
you can see there is inductive current and the neutral cable connection is not proper. If the value is
120, then you can know that you have misconnected the neutral cable to the live cable.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Dahua Technology DH-XVR1B04H and is the answer not in the manual?

Dahua Technology DH-XVR1B04H Specifications

General IconGeneral
Aspect ratio16:9
CertificationFCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product colorBlack
Rack capacity1U
Playback modesFast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup functionYes
Channels quantity8 channels
Multi-display modes4, 8
Video capturing speed60 fps
Maximum recording time1 h
Audio formats supportedAAC, G.711, PCM
Network connection typeRJ-45
Maximum video resolution1920 x 1080 pixels
Video compression formatsH.264, H.264+, H.265, H.265+
Analog signal format systemNTSC, PAL
Video capturing speed (PAL)30 fps
Playback resolutions supported1920×1080, 1280×1024, 1280×720
BNC input ports8
BNC output ports1
USB 2.0 ports quantity2
HDD interfaceSerial ATA
Maximum HDD capacity6000 GB
DC voltage12 V
Power supply typeDC
Power consumption (typical)10 W
Package weight1000 g
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Storage relative humidity (H-H)0 - 90 %
Operating relative humidity (H-H)10 - 90 %
Number of users128 user(s)
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search
Weight and Dimensions IconWeight and Dimensions
Depth192 mm
Width197 mm
Height41 mm
Weight540 g
