Dahua Technology DH-XVR1B04H User Manual

User’s Manual
48
Operation
Function

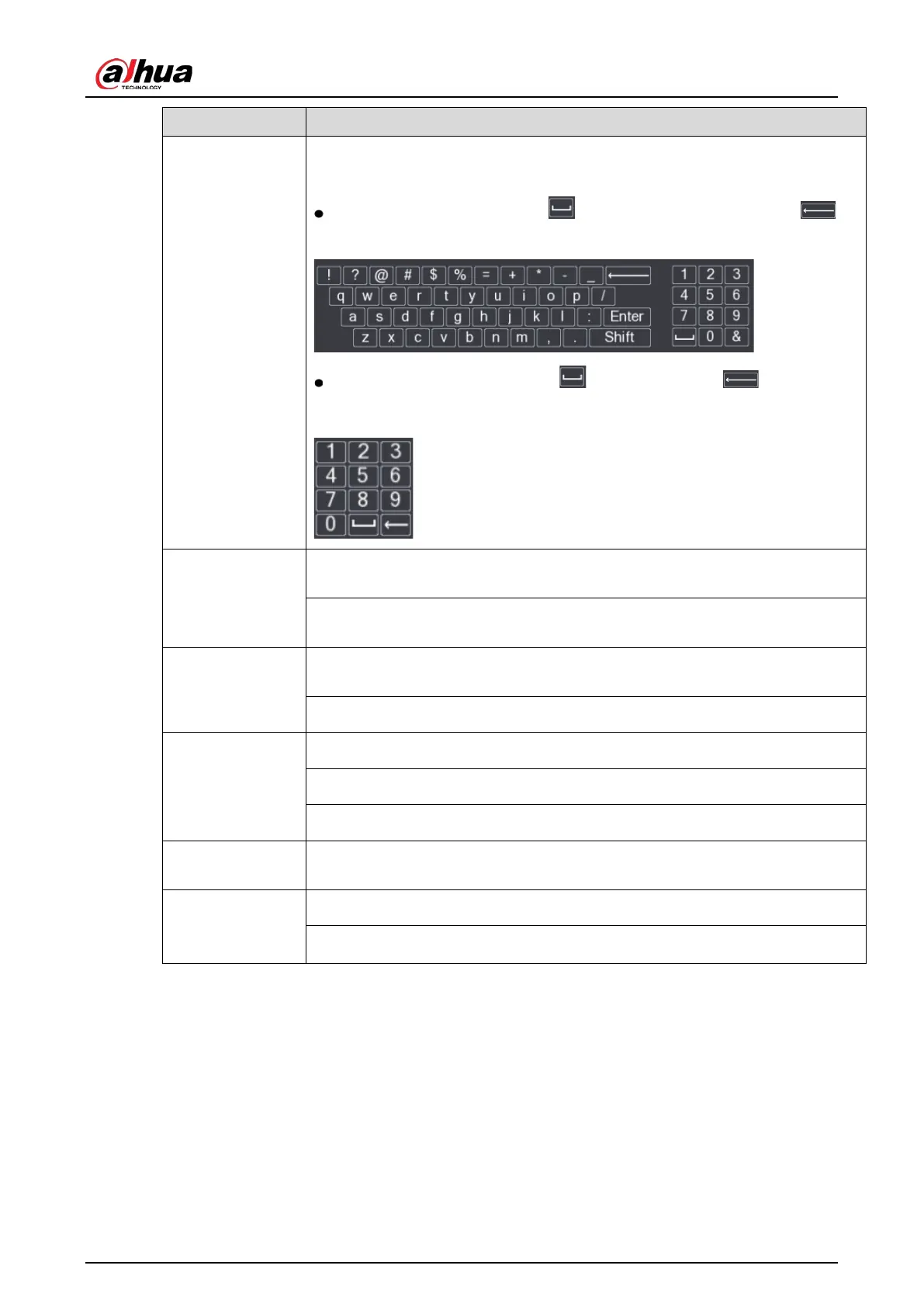

In text box, click the corresponding button on the panel to enter a numeral or
English character (small/capitalized).
In English input mode: Click to enter a backspace and click to
delete the previous character.
In numeral input mode: Click to clear and click to delete the
previous character.
Double-click left
mouse button
Implement special control operations such as double-click one item in the file list
to play back the video.
In multiple-window mode, double-click one channel to view in full-window.
Double-click current video again to go back to previous multiple-window mode.
Right-click
Right-click in live view window interface, the shortcut menu is displayed. For
different series product, the shortcut menu may vary.
Exit current menu without saving the modification.
Click scroll wheel
button
In numeral input box: Increase or decrease numeral value.
Switch the items in the combo box.
Page up or page down.
Point to select and
move
Select current control and move it.
Dragging a
selection box with
left mouse button
Select motion detection zone.
Select privacy mask zone.

Dahua Technology DH-XVR1B04H Specifications

General

Aspect ratio	16:9
Certification	FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024 UL: UL 60950-1
Product color	Black
Rack capacity	1U
Playback modes	Fast, Next, Pause, Play, Previous, Repeat, Shuffle, Slow, Stop, Zoom
Backup function	Yes
Channels quantity	8 channels
Multi-display modes	4, 8
Video capturing speed	60 fps
Maximum recording time	1 h
Audio formats supported	AAC, G.711, PCM
Network connection type	RJ-45
Maximum video resolution	1920 x 1080 pixels
Video compression formats	H.264, H.264+, H.265, H.265+
Analog signal format system	NTSC, PAL
Video capturing speed (PAL)	30 fps
Playback resolutions supported	1920×1080, 1280×1024, 1280×720
BNC input ports	8
BNC output ports	1
USB 2.0 ports quantity	2
HDD interface	Serial ATA
Maximum HDD capacity	6000 GB
DC voltage	12 V
Power supply type	DC
Power consumption (typical)	10 W
Package weight	1000 g
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 45 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Number of users	128 user(s)
Ethernet interface type	Fast Ethernet
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter , DDNS, FTP, Alarm Server, P2P, IP Search

Weight and Dimensions

Depth	192 mm
Width	197 mm
Height	41 mm
Weight	540 g
