Dahua DH-DVR0804ME-HE User Manual

17

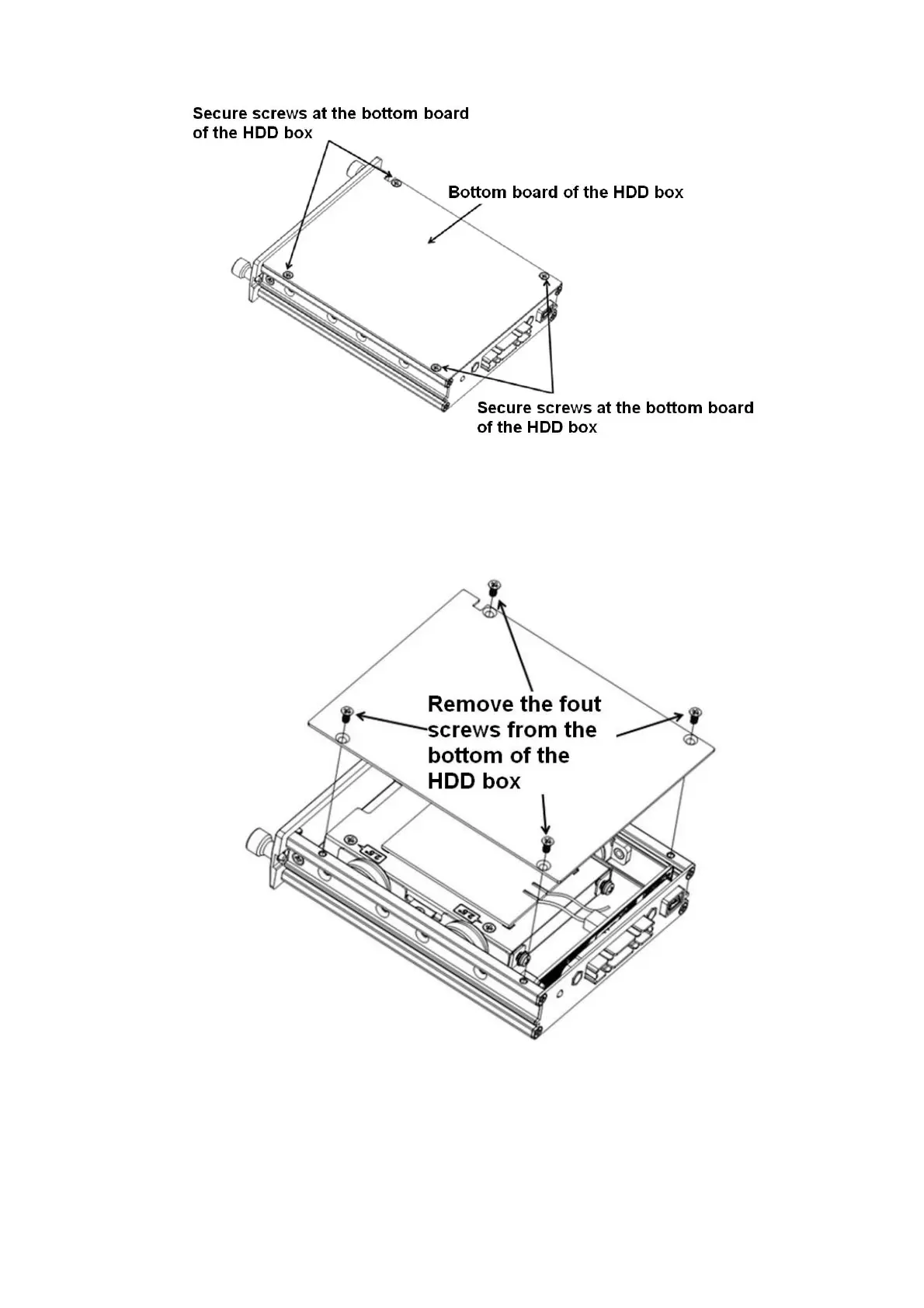

Figure 3-1
2) Please loosen the screws of the bottom board of the HDD box and then remove the bottom
board. Now you can see an interface shown as in Figure 3-2.
Figure 3-2
3) Now you can see an interface shown as in Figure 3-3. Use four screws to secure the HDD on
the bracket and then use two screws to fasten the bracket on the bottom board.

Dahua DH-DVR0804ME-HE Specifications

General

Brand	Dahua
Model	DH-DVR0804ME-HE
Category	DVR
Language	English
