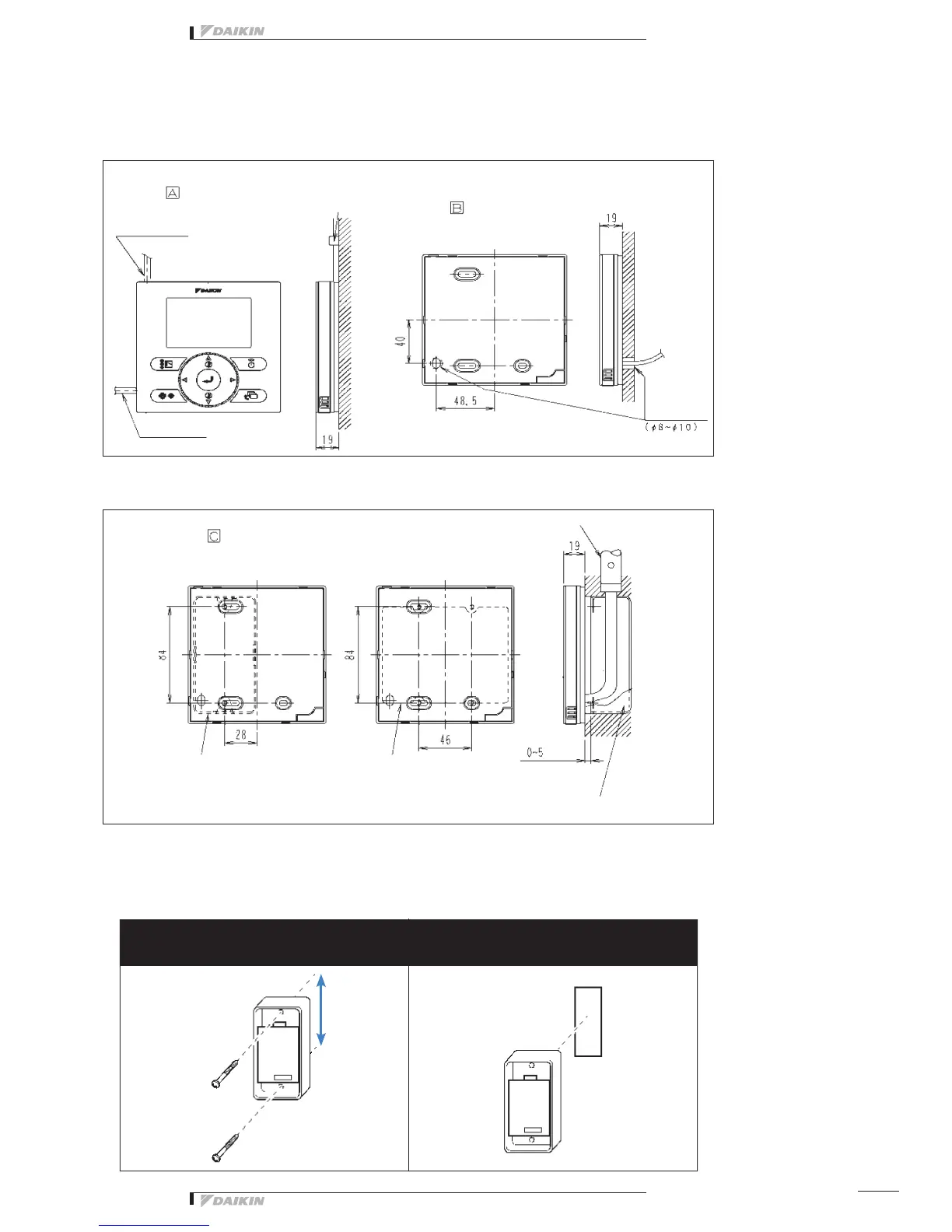

4.4 Installation method
4.4.1 User interface
Dimensions in mm
(Remark: Compared with similar BRC*E* casing designs, the upper center outlet installation method
is not possible because the hole is to small to install the BRCW901A* wire harness)
In case switch box is used: connect ground of BRCW901A* wire harness to the metal part of switchbox.
4.4.2 Adapter
Dimensions in mm
Staple
Upper outlet
Condit
Switchboxforoneswitch
Ex. KJB111A (Optional accessory)
Switchboxfortwoswitch
Ex. KJB211A (Optional accessory)
(Between remote
control and
control box)
Switch box
(Field supplied part)
Leftoutlet
Lower case portion
Lower case portion
Note 2
Through hole
Mounting with supplied wood screws
( Ø3.5x16)
Mounting with supplied double-face
adhesive tape
19
• Control systems
• Individual control systems • BRC073
• Installation method
Exposed cord
Embedded cord (use switch box)
65
Embedded cord
