3.1.3. Required space
To install the intelligent Touch Manager, the following space is required. Make sure that there is a minimum clearance of 30 mm from the
top edge, 100 mm from the left side edge, 30 mm from the right side edge, and 60 mm from the bottom edge of the unit.

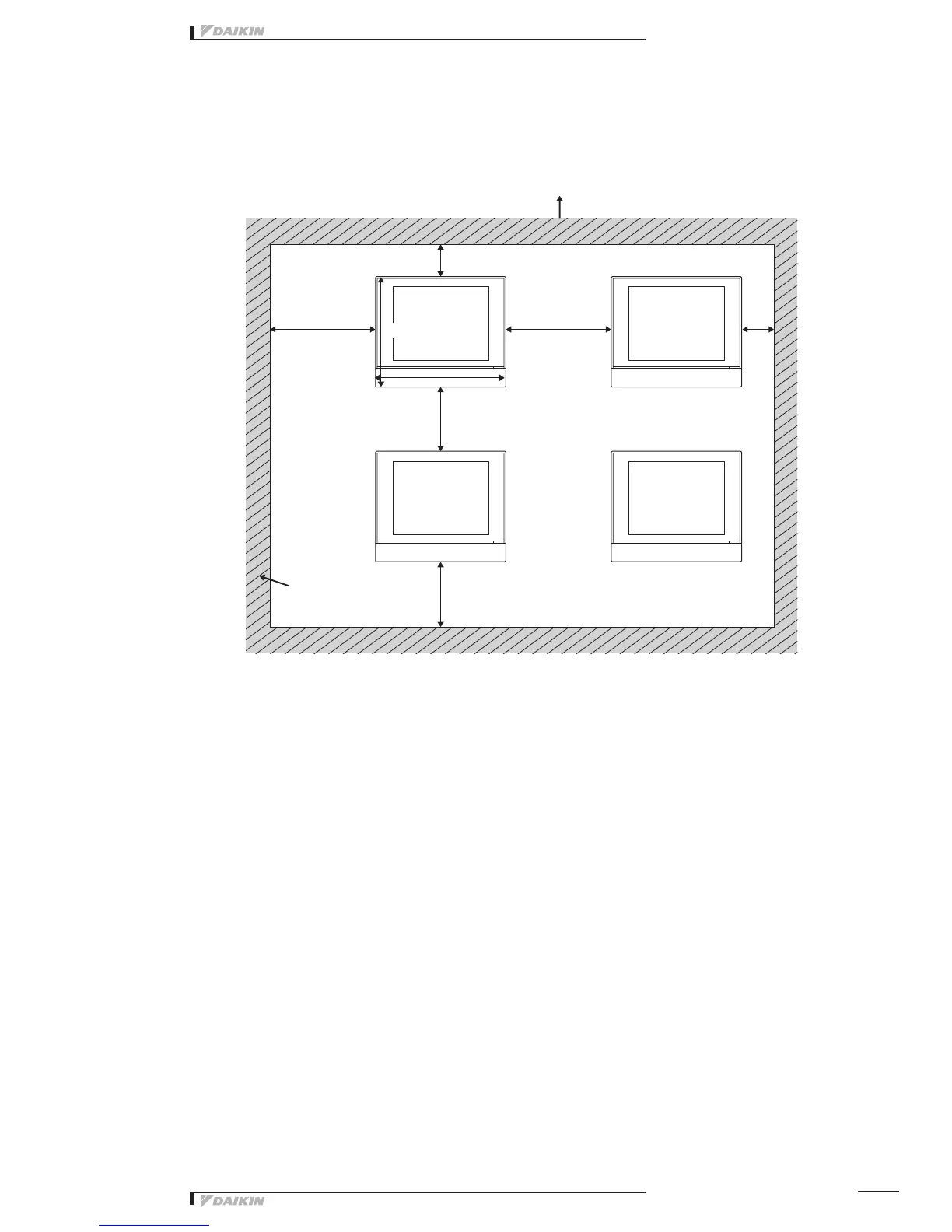

<Installation space required for intelligent Touch Manager>
Required installation
space
MONIT OR MONIT OR
MONIT OR MONIT OR
30mm100mm
290mm
100mm
60mm
60mm
30mm
243mm
A
B
A Top
B Wall
