Power Proportional Distribution Card
Function and Outline
Power Proportional Distribution Card, in combination with an existing intelligent Touch Controller, enables to proportionally calculate
and display electricity amount used by air conditioner per indoor unit.
Main Functions
• 13 months data storage possible
• Data available per hour per indoor unit
• Power proportional distribution may be calculated for 2 x 64 indoor units at maximum.
• Power proportion distribution results data may be saved into a PCMCIA card.
Data is saved CSV format generally applied to personal computers, so bills may be issued by use of a general purpose table calculation
software package in easy manners.
(A personal computer and a general purpose table calculation software package may be available separately.)
Precautions
This system calculates electricity consumptions by size of indoor units, run time, expansion vales open gap, suction rate and the number
of pulses from the power meters installed at the Outdoor Units.
This method is not calculated by direct measurement alone.
123 123 123
DAIKIN INDUSTRIES. LTD.
DCS002A51
DCS601C51
51
• Control systems
• Centralised control systems • DCS601C51 •

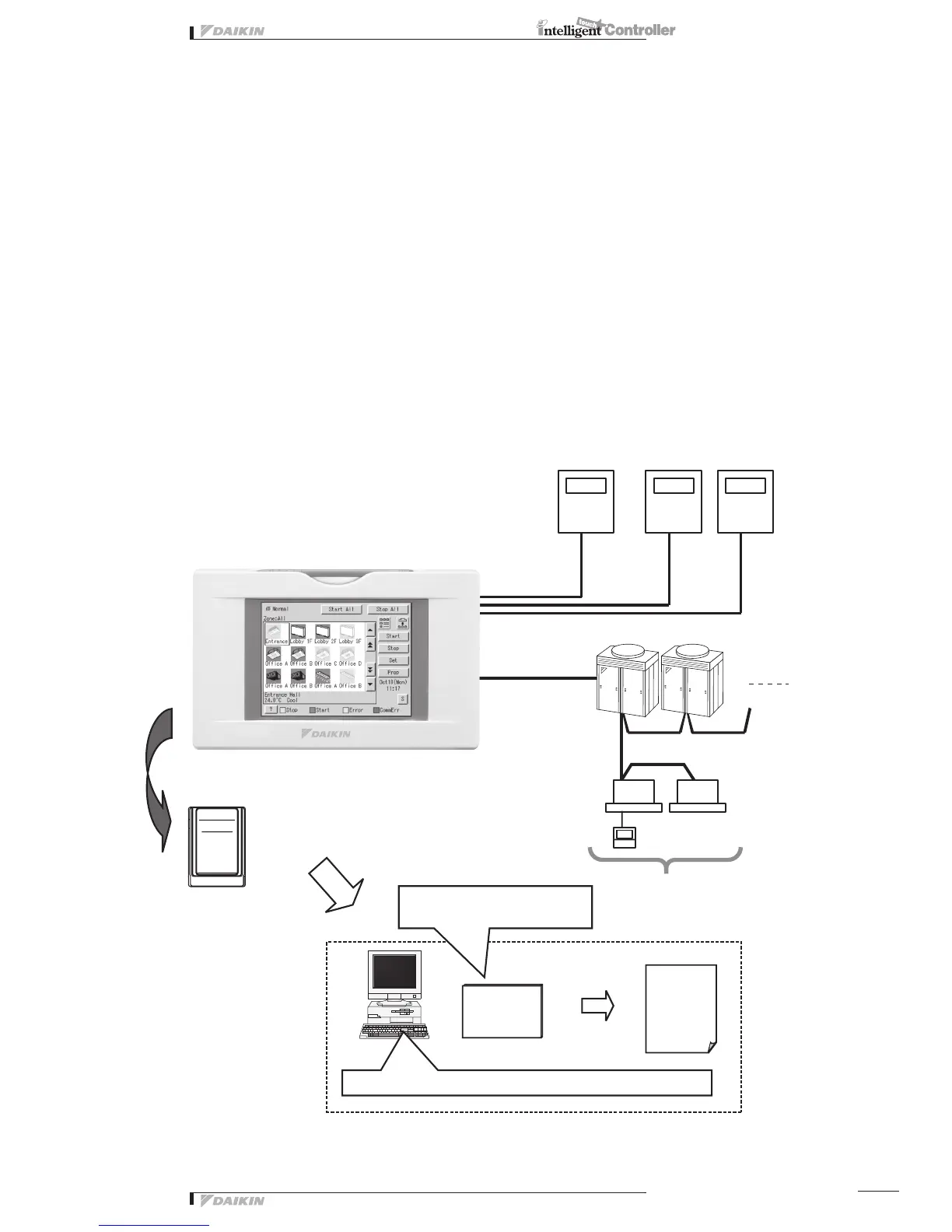

Electric power meter
(with pulse output)
Outdoor unit
Indoor unit
General
purpose
software
Bills
64 units at maximum
Billsmaybeissuedbyuseofageneral
purposetablecalculationsoftwarepackagein
easy manners.
Apersonalcomputerandageneralpurposetablecalculationsoftwarepackagemaybeavailableseparately.
Power Proportional
Distribution Card
PCMCIA card slot
Power proportional distribution pulse.
Maximumnumberofinputs-3
DIII-NETx1
