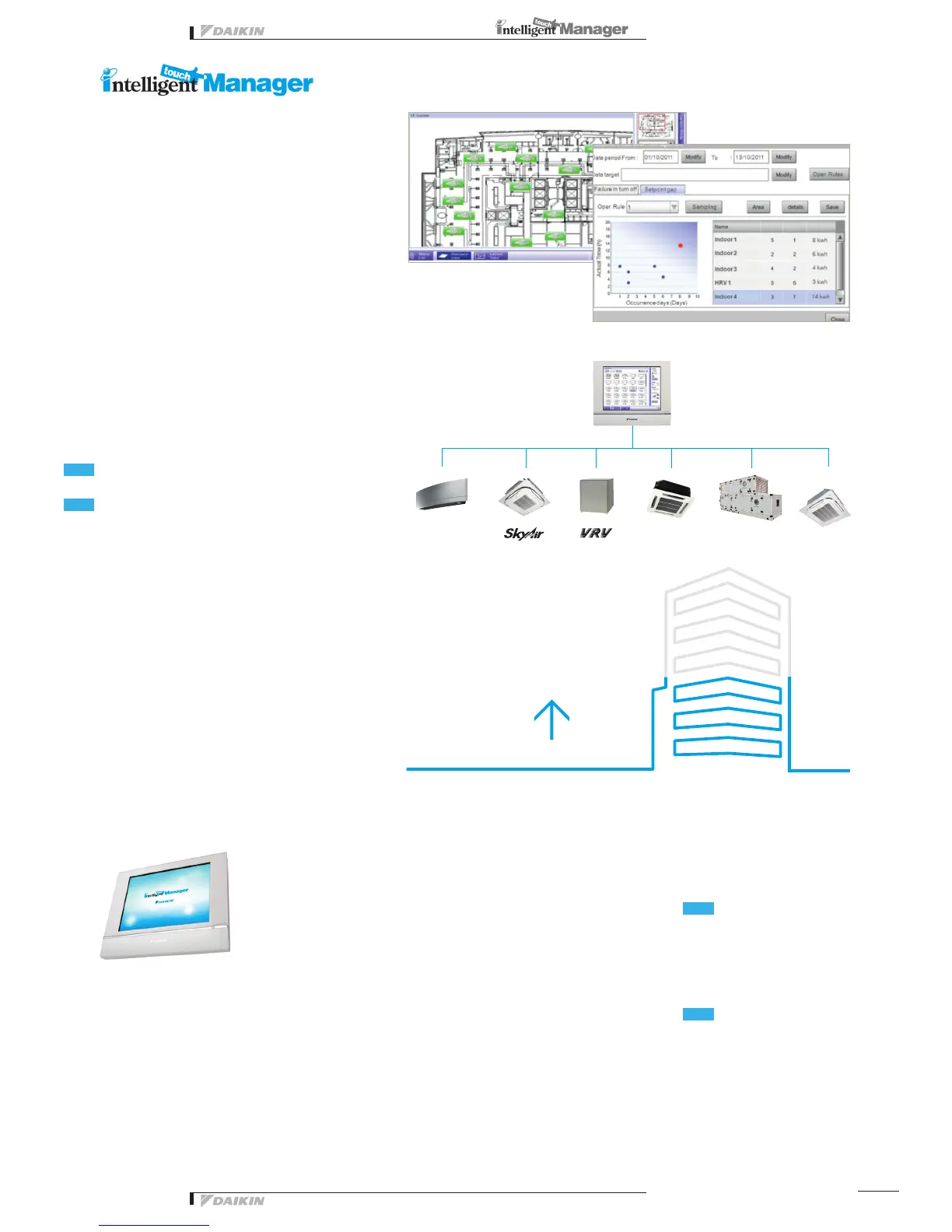

Daikin brp069a42 - Functions and Options

Plug & play
User friendliness
› Intuitive user interface
› Visual lay out view and direct access to indoor unit
main funtions
› All functions direct accessible via touch screen
or via web interface
Smart energy management
› Monitoring if energy use is according to plan
› Helps to detect origins of energy waste
› Powerful schedules guarantee correct operation
throughout the year
› Save energy by interlocking A/C operation with other
equiment such as heating
Flexibility
› Cross-pillar integration (heating, air conditioning,
applied systems, refrigeration, air handling units)
› BACnet protocol for rd party products integration
› I/O for integration of equipment such as lights,
pumps… on WAGO modules
› Modular concept for small to large applications
› Control up to , indoor unit groups
Easy servicing and commissioning
› Remote refrigerant containment check preventing
on site visit
› Simplifi ed troubleshooting
› Save time on commissioning
thanks to the pre-commissioning tool
› Auto registration of indoor units
Functions overview
Languages
› English
› French
› German
› Italian
› Spanish
› Dutch
› Portuguese
Management
› Web access
› Power Proportional
Distribution (option)
› Operational history
(malfunctions, operation hours, …)
› Smart energy management
- monitor if energy use is
according to plan
- detect origins of energy
waste
› Setback function
› Sliding temperature
System layout
› Up to , unit groups can
be controlled
(ITM plus Integrator +  iPU
(incl. iTM adaptor)
› Ethernet TCPIP
Control
› Individual control
(, groups)
› Schedule setting (Weekly
schedule, yearly calender,
seasonal schedule)
› Interlock control
› Setpoint limitation
› Temperature limit
Connectable to
- DX Split, Sky Air, VRV
- Chillers (via POL. controller)
- Daikin AHU
- Fan coils
- Daikin Altherma Flex type
- LT and HT hydroboxes
- Air curtains
- WAGO I/O
- BACnet protocol
WAGO Interface
› Modular integration of rd
party equipment
- WAGO coupler (interface
between WAGO and Modbus)
- Di module
- Do module
- Ai module
- Thermistor module
NEW
NEW
NEW
NEW
55
• Control systems
• Management control • DCM601A51 •
Flexibility in size
64 up to 2,560 groups
Split Fan coils Chillers and AHU
Refrigeration
