Terminals location and conceptual connection diagram
Using a LAN cable, connect the LAN socket to the network hub.

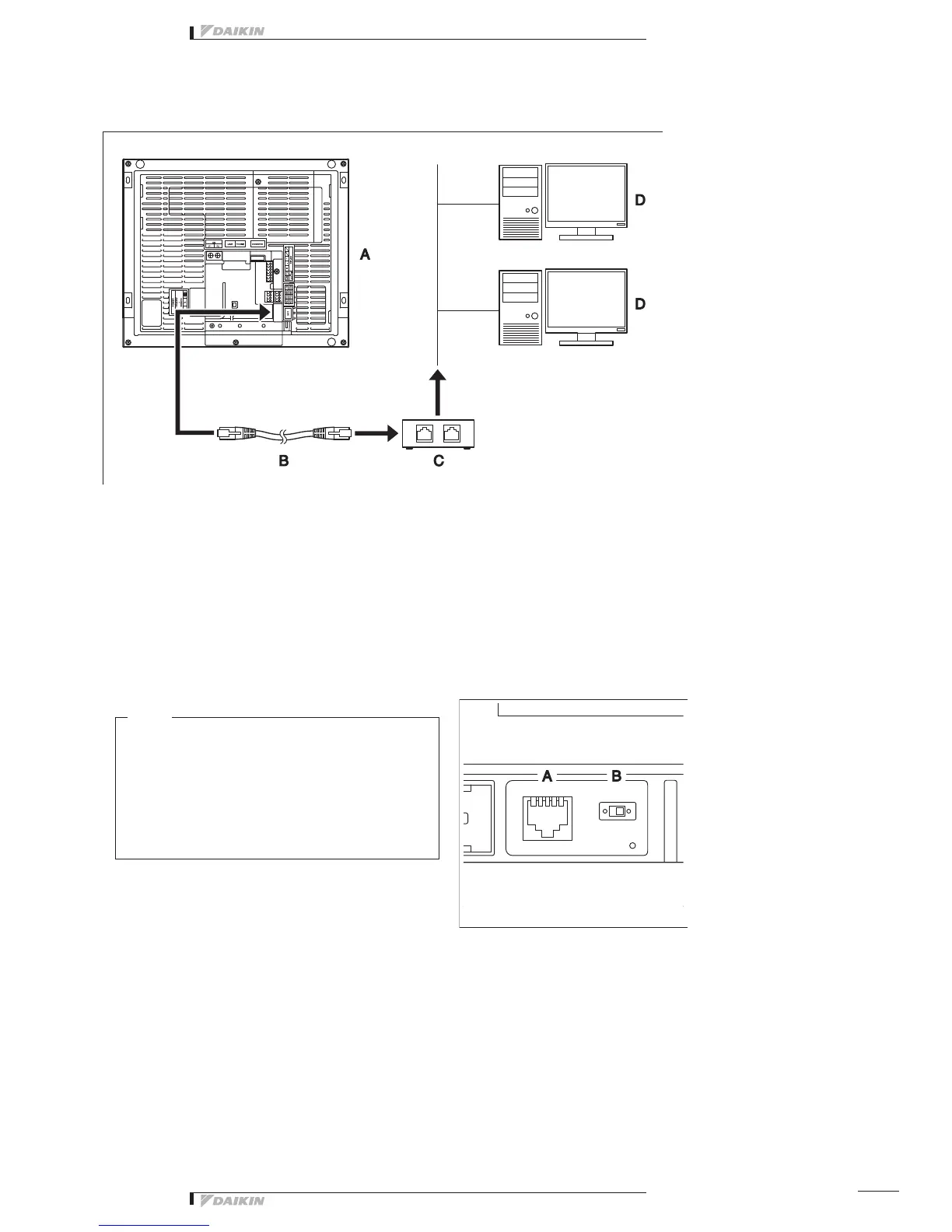

<Conceptual drawing of LAN connection>
A Rear face of intelligent Touch Manager
B LAN cable
C Hub
D PC
Requirements that must be met
• Applicable cable standard: 100Base-TX or 10Base-T
• Connector standard: RJ-45
<SERVICE LAN socket and LAN SW
switch>
NOTE
• If you are connecting to a LAN temporarily during
installation or maintenance, use the SERVICE LAN
terminal located on the front face. Changing the
position of the LAN SW switch to “FRONT” causes the
SERVICE LAN socket to activate (enabled for use).
• You cannot close the cover when the switch set to
“FRONT”. To close the cover, select “BACK”.
A SERVICE LAN
B LAN SW
SERVICE LAN
FRONT BACK
LAN SW
