Terminals location and conceptual connection diagram
Using a LAN cable, connect the LAN socket to the network hub.

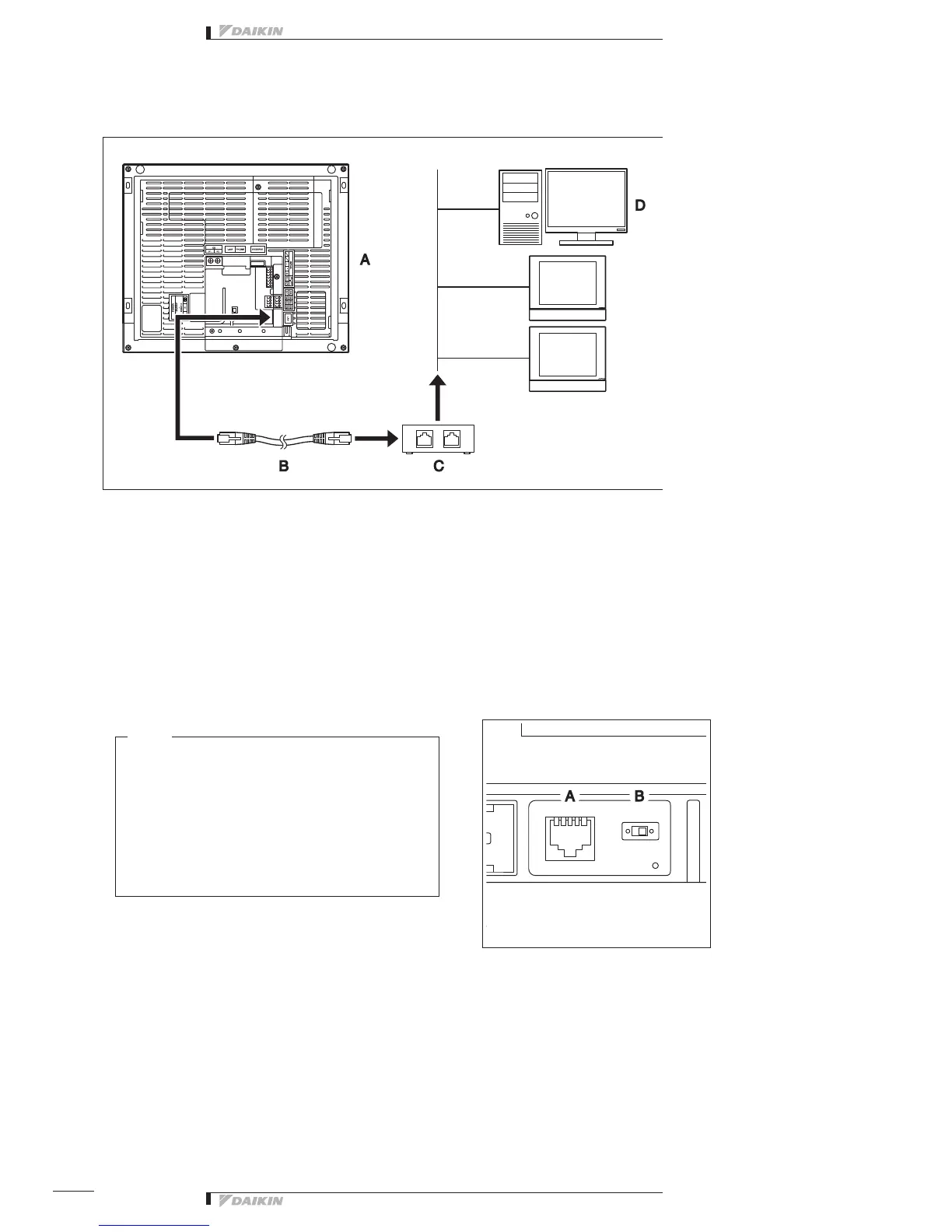

<Conceptual drawing of LAN connection>
E
E
A Rear face of iTM integrator
B LAN cable
C Hub
D PC
E intelligent Touch Manager
Requirements that must be met
• Applicable cable standard: 100Base-TX or 10Base-T
• Connector standard: RJ-45
<SERVICE LAN socket and LAN SW switch>
NOTE
• If you are connecting to a LAN temporarily during
installation or maintenance, use the SERVICE LAN
terminal located on the front face.
Changing the position of the LAN SW switch to “FRONT”
causes the SERVICE LAN socket to activate (enabled for
use).
• You cannot close the cover when the switch set to
“FRONT”. To close the cover, select “BACK”.
A SERVICE LAN
B LAN SW
SERVICE LAN
FRONT BACK
LAN SW
