2 Components
Service manual
36
ATXP20~35L2V1B + FTXP20~71L2V1B + ARXP20~35L2V1B +
RXP20~71L2V1B
Split Comfora R32
ESIE18-01 – 2019.02
1×
2
1
2
3×
2
2
1
1
1

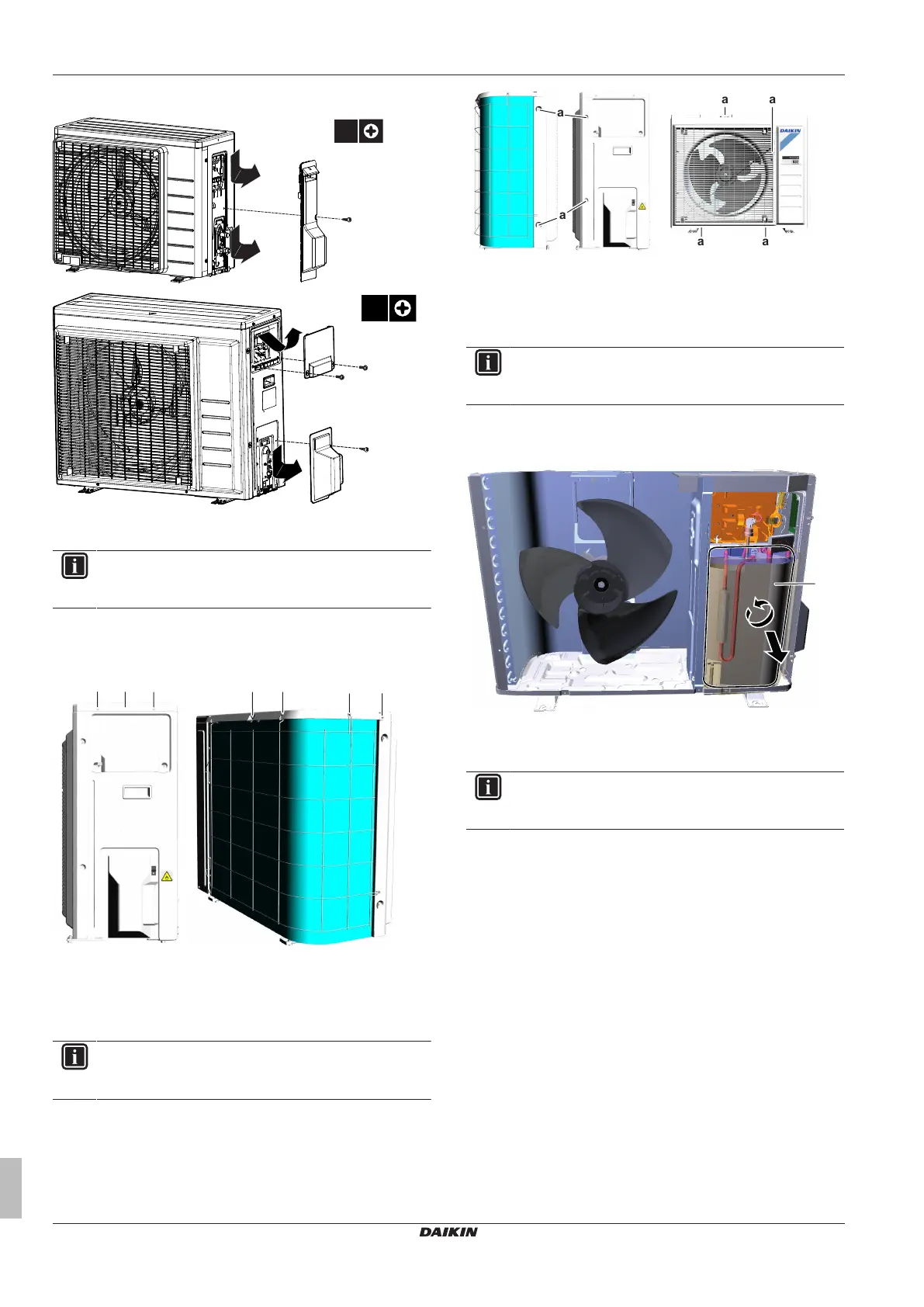

To remove the top plate
INFORMATION
This procedure is just an example and may differ on some
details for your actual unit.
Prerequisite: Turn OFF the unit via the user interface.
Prerequisite: Turn OFF the respective circuit breaker.
1 Loosen and remove the screws that fix the top plate.
a b a aa aa
a Screw
b Top plate
2 Remove the top plate.
To remove the front plate
INFORMATION
This procedure is just an example and may differ on some
details for your actual unit.
Prerequisite: Remove the top plate, see "2.10 Plate work" on
page35.
1 Loosen and remove the screws that fix the front plate.
a
a a
a
a
a
a Screw
b Front plate
2 Remove the front plate.
To remove the compressor sound insulation
INFORMATION
This procedure is just an example and may differ on some
details for your actual unit.
Prerequisite: Remove the front plate, see "2.10 Plate work" on
page35.
1 Untwist the cord and remove the compressor sound insulation.
a
a Compressor sound insulation
To remove the switch box
INFORMATION
This procedure is just an example and may differ on some
details for your actual unit.
Prerequisite: Turn OFF the unit via the user interface.
Prerequisite: Turn OFF the respective circuit breaker.
Prerequisite: Remove the required plate work, see "2.10 Plate
work"on page35.
1 Remove the insulation on the upper side of the switch box.
