2 Components
Service manual
37
ATXP20~35L2V1B + FTXP20~71L2V1B + ARXP20~35L2V1B +
RXP20~71L2V1B
Split Comfora R32
ESIE18-01 – 2019.02
ab
a Insulation
b Main PCB

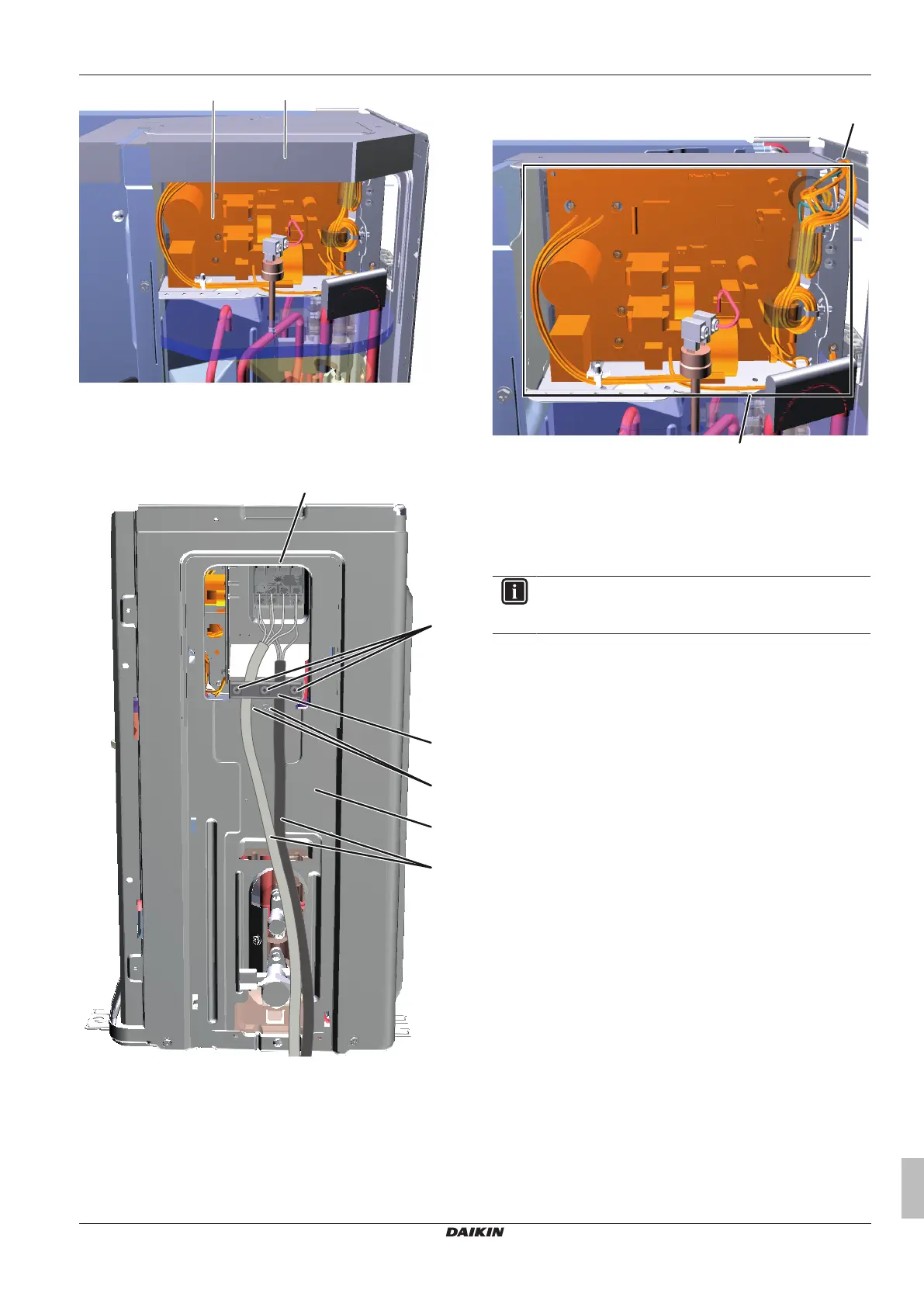

2 Disconnect all connectors from the main PCB.
3 Disconnect the electrical power supply wiring from the wire
terminals.
f
a
d
c
b
e
a Electrical power supply wiring
b Wire terminals
c Screws
d Wire clamp
e Screws
f Right side plate assembly
4 Remove the screws that fix the wire clamp.
5 Remove the wire clamp.
6 Remove the screws that fix the right side plate assembly.
7 Cut the cable tie.
a
b
a Cable tie
b Switch box
8 Lift and remove the switch box from the outdoor unit.
9 To install the switch box, see "2.10Plate work"on page35.
To install the switch box
INFORMATION
This procedure is just an example and may differ on some
details for your actual unit.
1 Install the switch box on the correct location in the outdoor unit.
2 Install the right side plate assembly on the outdoor unit and fix it
using the screws.
