Wiring Diagrams ESIE05-04
1ā84 Part 1 ā System Outline
4.13 FAQ71B

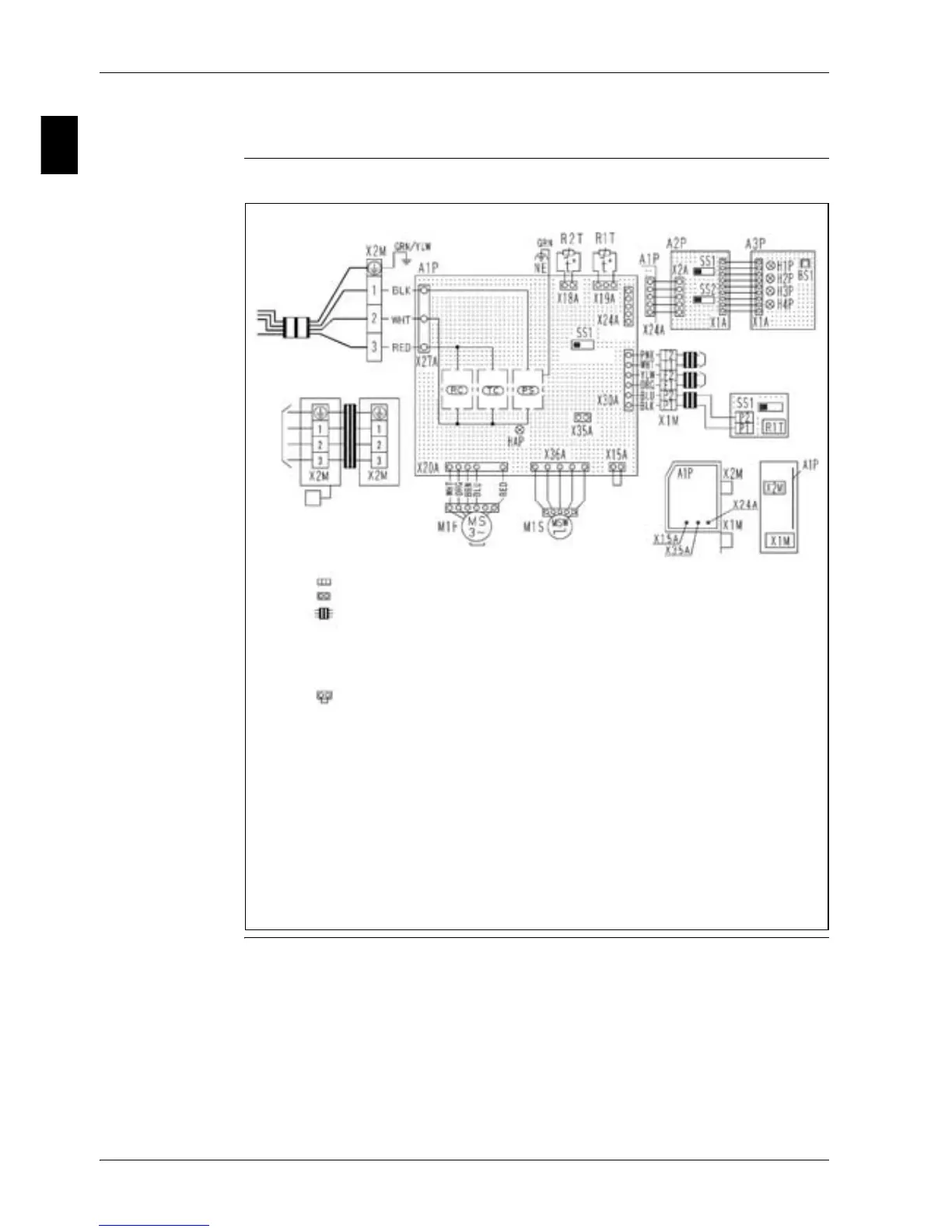

Wiring diagram The illustration below shows the wiring diagram of the unit.
Note 4
Control box
Receiver / Display unit
Attached to Wireless Remote Controller)
In case of simultaneous
operation system
Indoor unit
(Master)
Indoor unit
(Slave)
Wired Remote Controller
to Outdoor Unit
Note 4
Notes
1.
2. In case using central remote controller, connect it to the unit in accordance with
the attached installation manual.
3. Remote controller model varies according to the combination system, confirm
engineering materials and catalogs, etc. before connecting.
4. X24A is connected when the wireless remote controller kit is being used.
5.
6. Symbols show as follows:
RED : Red
WHT : White
GRN : Green
BLK : Black
ORG : Orange
BRN : Brown
BLU : Blue
YLW : Yellow
PNK : Pink
7. Confirm the method of setting the selector switch (SS1, SS2) of wired remote
controller and wireless remote controller by installation manual and engineering
data, etc.
: Terminal
: Connector
: Field wiring
Norm.Emg.
Remote
Controller
Side
Front
Input from outside
Transmission wiring
Central Remote Controller
Note 2
Shows short circuit connector.
to Outdoor
Unit
To Next Page
