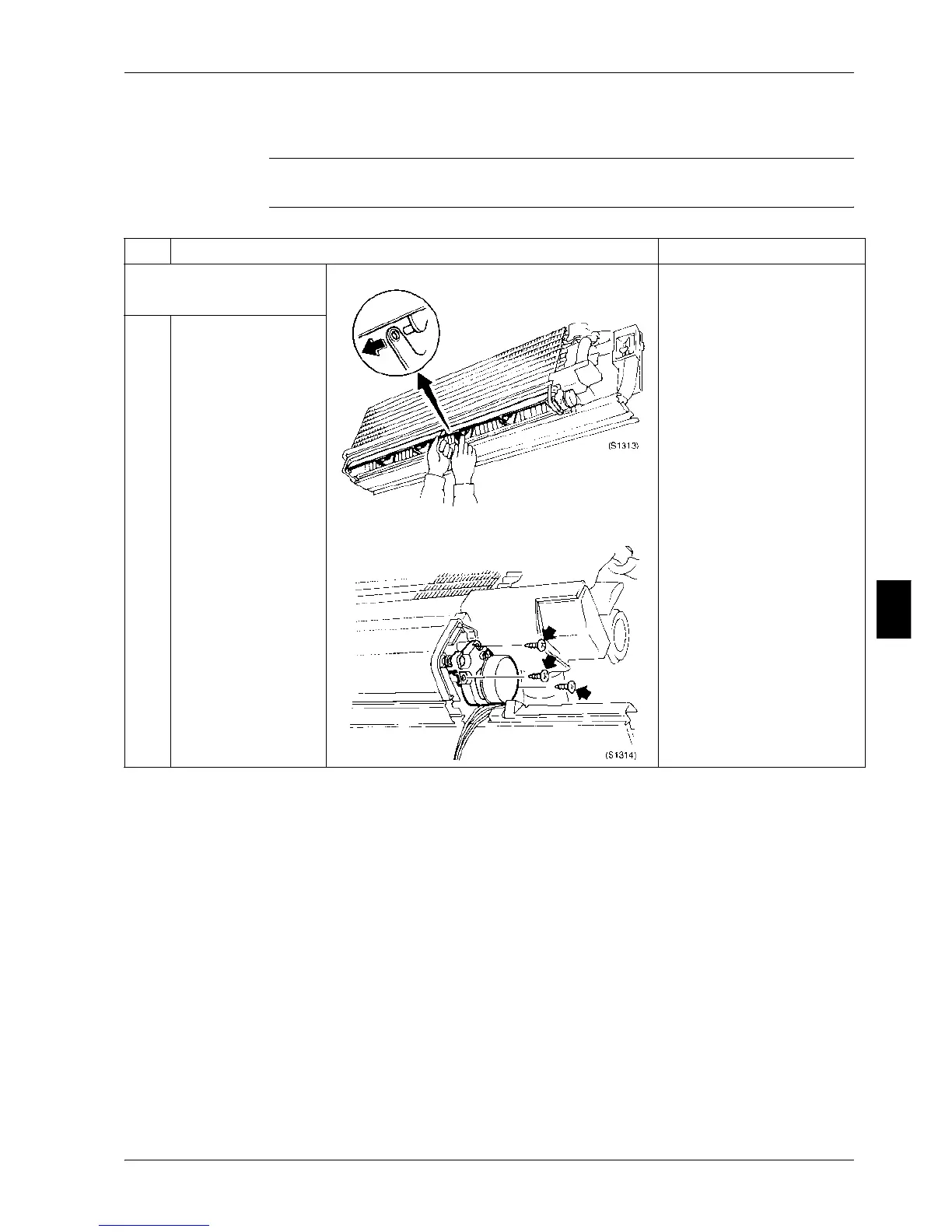

1.16.5 Removal of Swing Louvre Unit
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Remove the electrical parts
box according to "Removal of
Electrical Parts Box".
1 Remove the horizontal
blade.
2 Remove the swing
Louvre unit. (3 screws)
