Daikin FCQ35B7V1 - Fcq100, 125 B

ESIE05-04 Switch Box Layout
Part 1 – System Outline 1–97
3
1
4
5
5.3 FCQ100, 125B

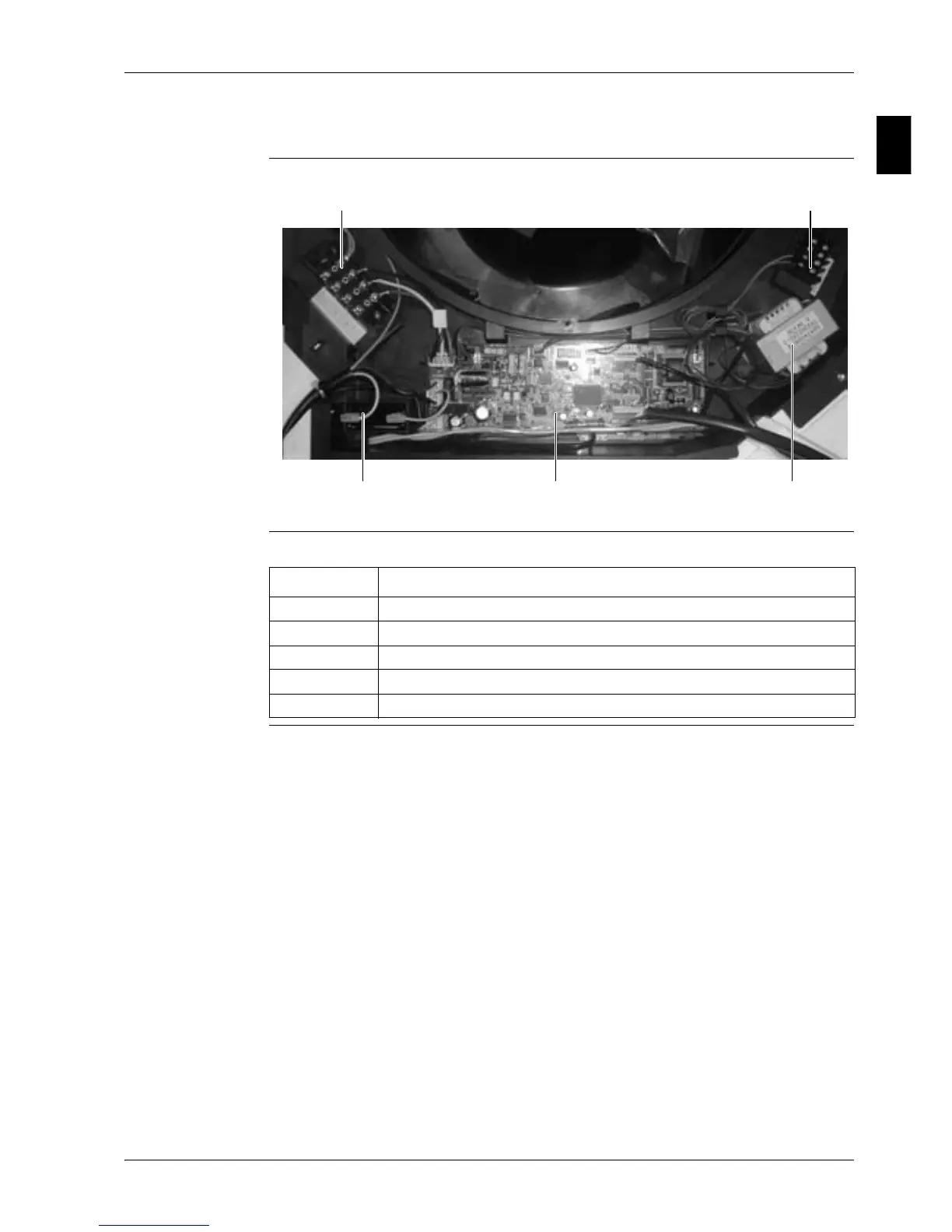

The illustration below shows the switch box layout:
X2M X1M
C1R
PCB T1R
Item Description
PCB Printed circuit board
T1R Transformer
C1R Fan motor capacitor
X1M Terminal strip (for remote control P1/P2)
X2M Terminal strip (interconnection wiring)
