PCB Layout ESIE05-04
1ā110 Part 1 ā System Outline
6.4 FCQ71, 100, 125, 140D

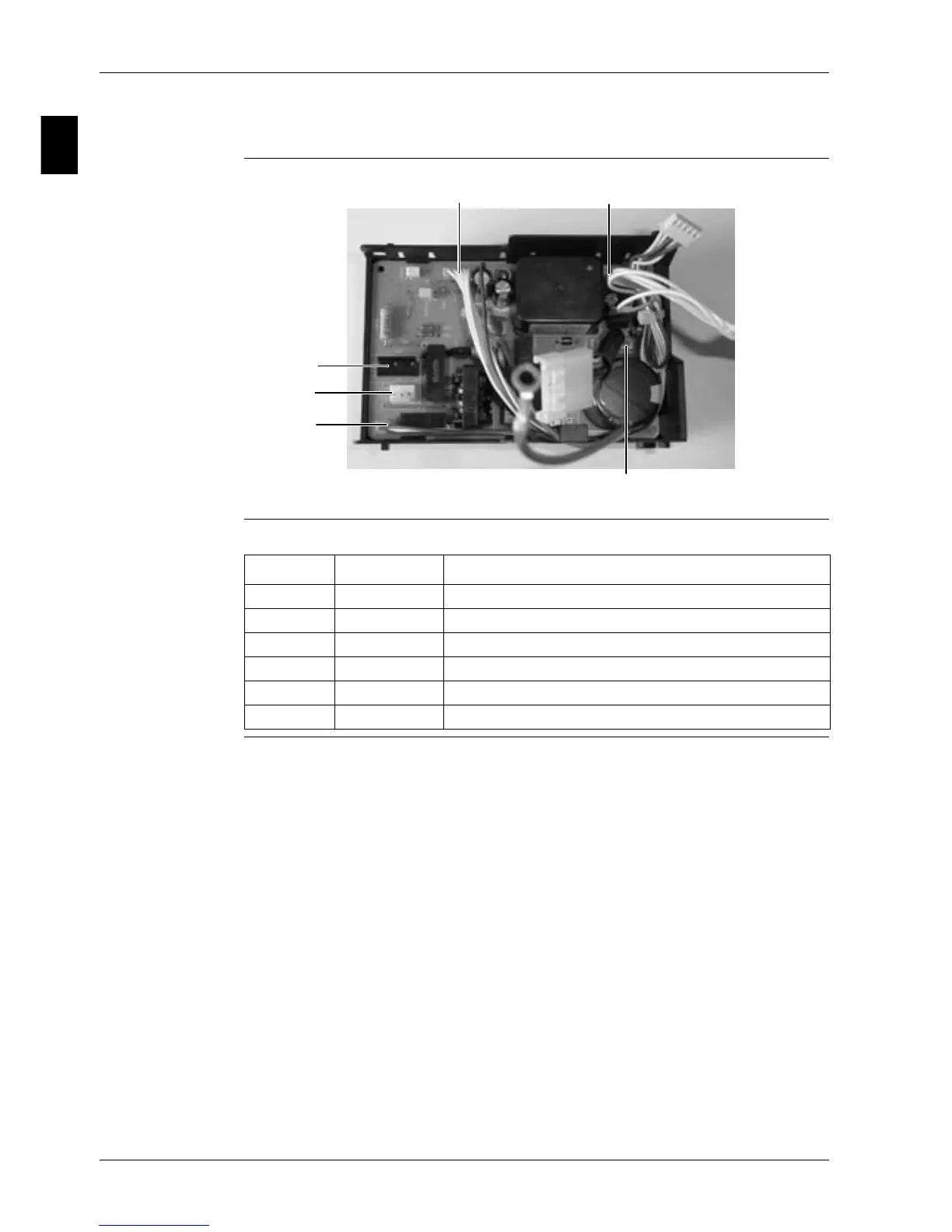

PCB1 - Power PCB The illustration below shows the PCB1 connectors.
Connectors The table below describes the PCB connectors.
X56A
X54A
X27A
X25A
X55A
X20A
Connector Connected to Description
X20A M1F Fan motor (Power supply & feedback)
X25A M1P Drain pump motor
X27A X2M Power supply & communications
X54A X57A (on A2P) PCB interconnection wire
X55A X57A (on A2P) PCB interconnection wire
X56A X57A (on A2P) PCB interconnection wire
