Disassembly and Maintenance ESIE05-04
5ā24 Part 5 ā Disassembly and Maintenance
1.11.2 Removal of Air Filter
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Removing the air filter
1 Open the suction grille.
(Refer to the procedure
for removing the suction
grille.)
2 Disengage the hooks of
the air filter by pulling the
filter downward at an
angle, and remove the
filter.

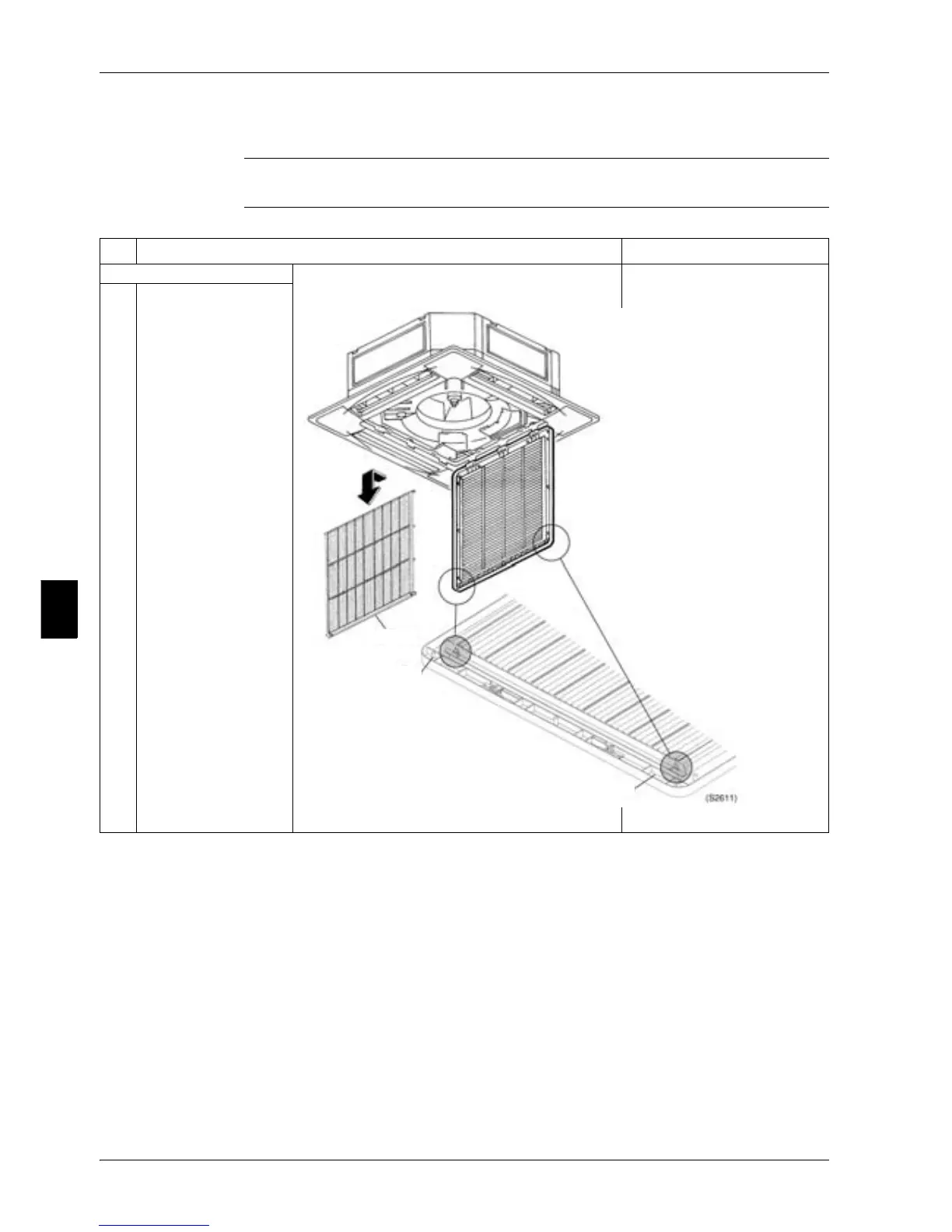

Air filter
Tab
Tab
