Disassembly and Maintenance ESIE05-04
5ā76 Part 5 ā Disassembly and Maintenance
1.12.14 Replacement of Receiver Section of Wireless Remote Controller
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points

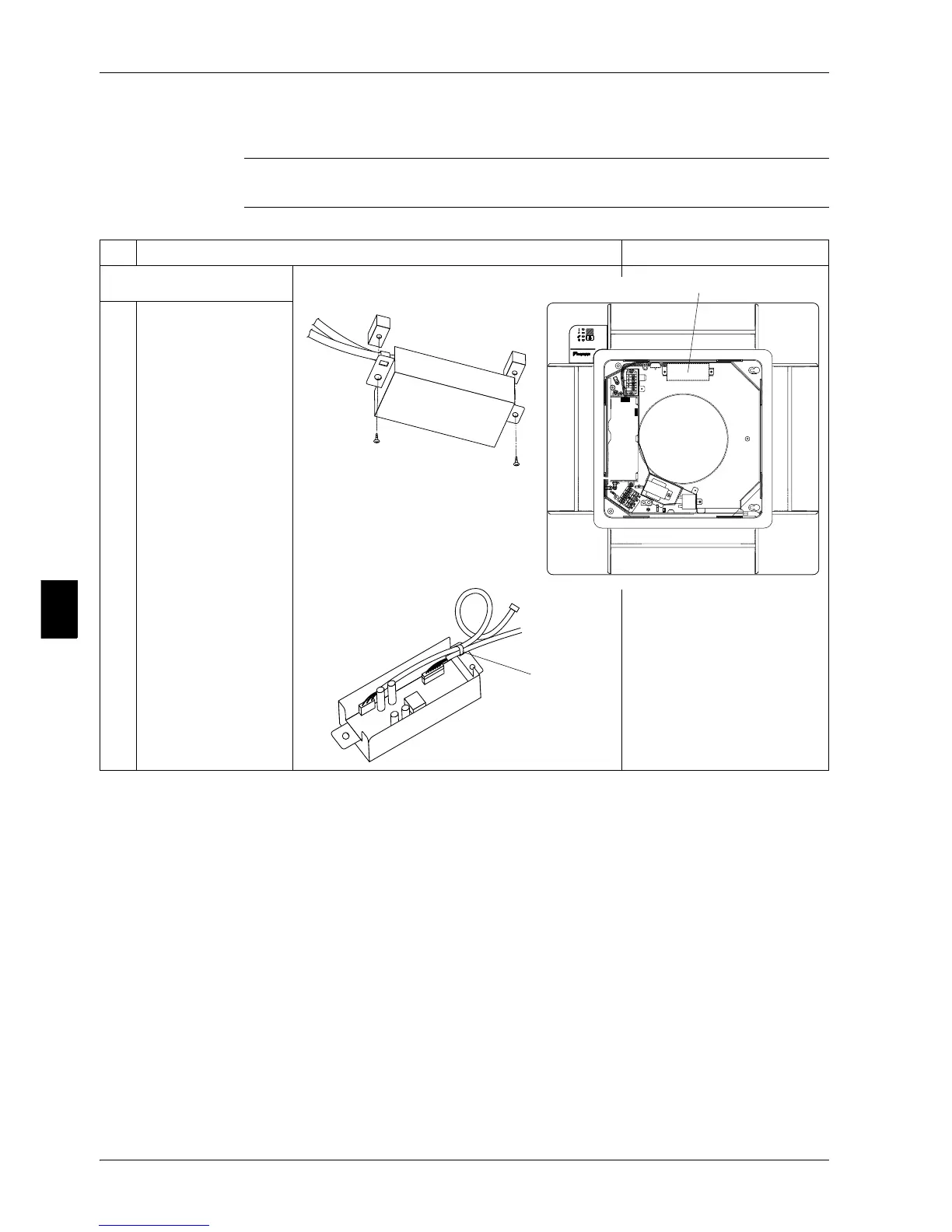

1 Removing the receiver
section
1 Remove two screws of
the transmission parts
box to remove the box.
2 Cut the tie wrap fixing
transmission parts box
and harness and
disconnect the connector
X1A.
3 Disconnect the lead wire
of the transmission parts
box from the connector
X24A on the indoor unit
PC board.
X24
Transmission parts box
(S2695)
(S2694)
Tie wrap
X2A
X1A
(S2696)
To Next Page
