Disassembly and Maintenance ESIE05-04
5–116 Part 5 – Disassembly and Maintenance
3
1
5
5

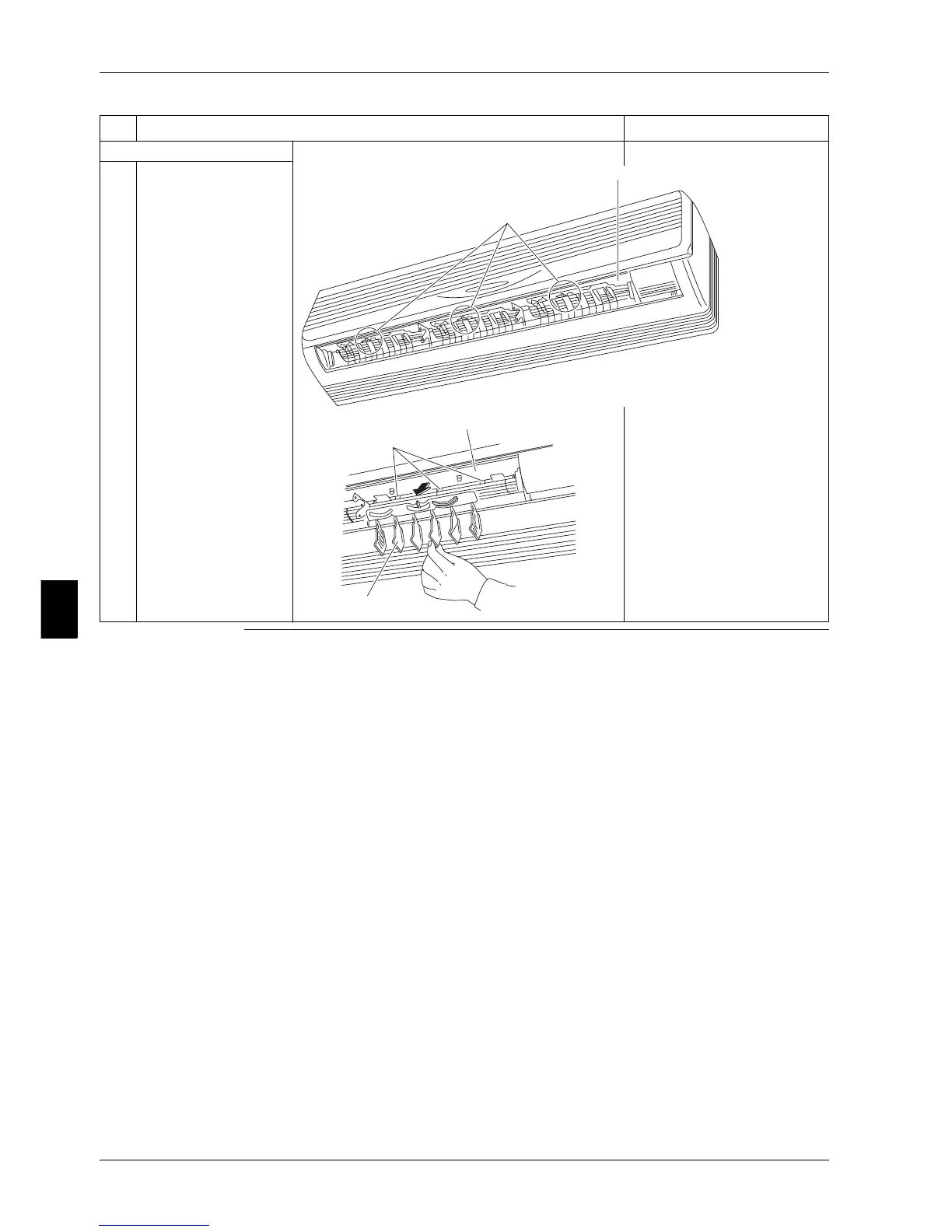

2 Removing the vertical blade.
1 Disengage the protrusion
on upper side of blade
from holder plate. (Three
locations)
2 Push the vertical blade
backward and pull the
lower side forward to
disengage the blade from
three hooks.
Step Procedure Points
Holder plate
Protrusion
Holder plate
Vertical blade
Hook
