3 x Operation
Daikin RoCon HP
Daikin Controller
008.1420844_13 – 02/2016
Operating instructions
19
The displayed values and symbols are always taken over from
the selected equipment (such as the mixer circuit infeed temper
-
ature of the mixer module EHS157068 with device ID 1).

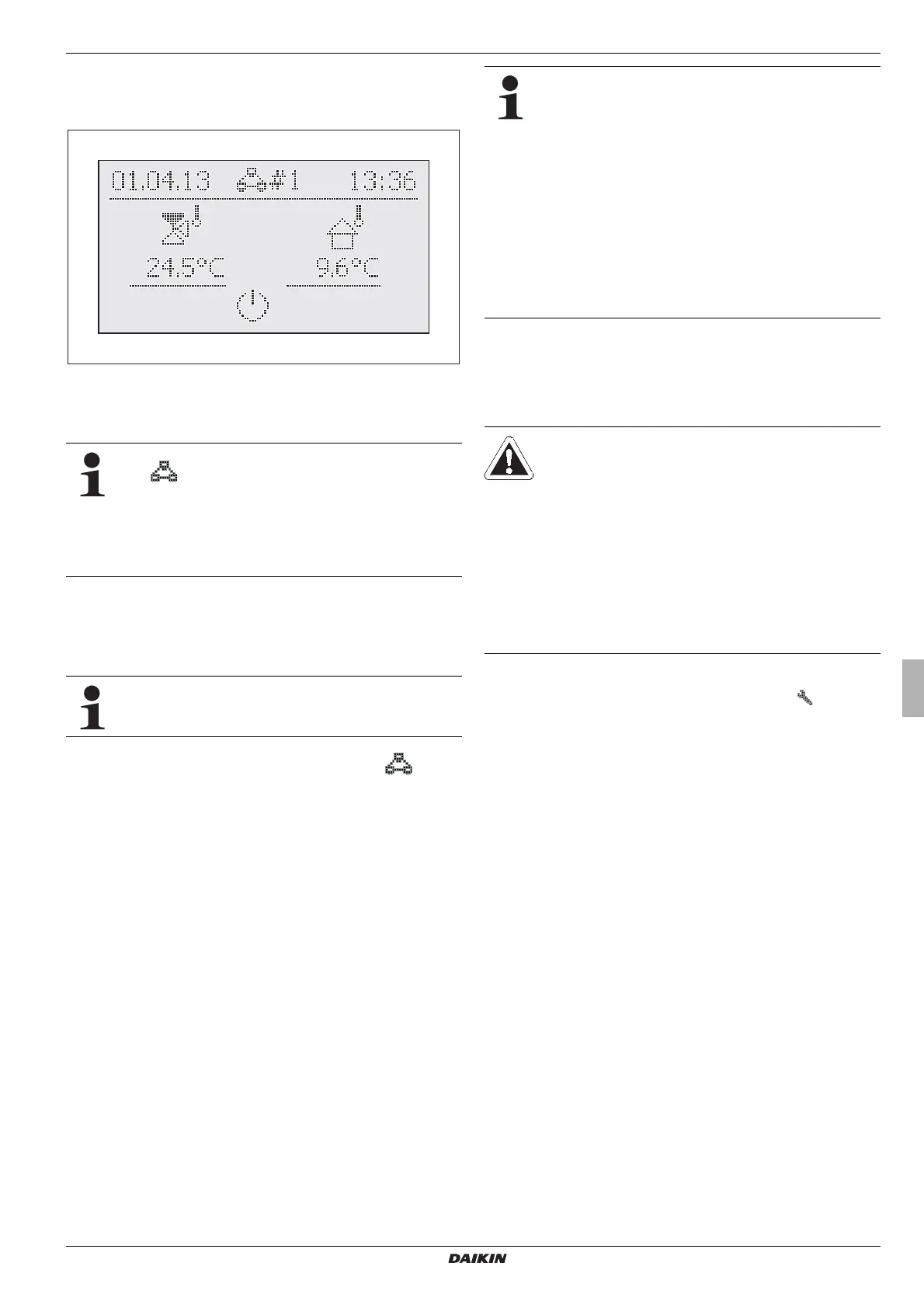

Fig. 3-11 Display example for a remotely controlled mixer module
For operation of the local equipment, this must be activated again
in the selection list (parameter [No selection]).
If the message "n. A." is displayed at rotary switch set-
ting
, the control unit has yet to be assigned a valid
terminal address.
If the message "n. A." is still displayed it may be nec-
essary to update the device software before the ter-
minal function can be used. Contact the Daikin Service
Team in such cases.
Activating / deactivating normal operation
Requirement: A valid terminal ID is assigned to the RoCon B1
control element of the Daikin Altherma EHS(X/H) or the
EH
S157034 room station.
For setting the terminal address of optional connected
equipment, see chapter 4.4 or the instruction handbook
supplied for the respective equipment.
● Place the rotary
switch in the "Remote Param"
position.
The level "Remote Param" is displayed.
● Select the
parameter [Bus - Scan] with the rotary switch.
● Confirm the changes with a brief push of the rotary switch.
The context menu is displayed.
● Use the
rotary switch to select the parameter [Bus - Scan] and
confirm with "Yes".
Bus - Scan is performed.
An overview of all the equipment found is displayed
(example see fig. 3-10).
● Use th
e rotary switch to select the equipment for which the
terminal function is to be performed.
● Confirm
the changes with a brief push of the rotary switch.
The local control element acts as the remote control for
the external equipment.
To en
d terminal mode and restore operation of the assigned
equipment to the control element, at the level "Remote Param"
the parameter [No selection] must be selected and acknowl-
edged.
After interim isolation from the power supply, at the
level "Remote Param", we always show the display as
shown in
fig. 3-9.
In order to be able to use the terminal function for con-
nected equipment, a new Bus - Scan must be carried
out.
Communication between the RoCon system compo-
nents continues to function, even without a Bus - Scan,
and previously made settings remain active.
Activation of the terminal function is carried out as
shown in fig. 3-10, but, after confirmation of the display
"Bus - Scan", you must select the parameter [New
sca
n?] with the rotary button, and confirmed with "Yes".
3.4.10 Quite Mode
Quite Mode means that the exterior heat pump unit is operating
at reduced output. This reduces the operating noise caused by
the exterior heat pump unit.
CAUTION!
Active Quite Mode reduces the perfor-
mance in room heating and room cooling
operation with the result that it may no
longer be possible to reach the preset
target temperatures.
● With outside temperatures below
freezing, there is a risk of material
damage caused by frost.
Quite Mode activation / deactivation
● Place the rotary switch in the "Configuration" position.
An overview is displayed.
● Sele
ct the "System " level with the rotary switch.
An overview is displayed.
● Se
lect the parameter [Quite Mode] with the rotary switch.
● Con
firm the changes with a brief push of the rotary switch.
The setting for the parameter is displayed.
● Setting pa
rameters
– Parameter [Quite Mode] = 0: deactivated
– Parameter [Quite Mode] = 1: permanently activated
– Parameter [Quite Mode] = 2: only activated at night
● Con
firm the changes with a brief push of the rotary switch.
Change has been accepted. Jump back to previous dis-
play.
More detailed explanations and possible setting values for this function can be seen
in chapter 6.2.2.
