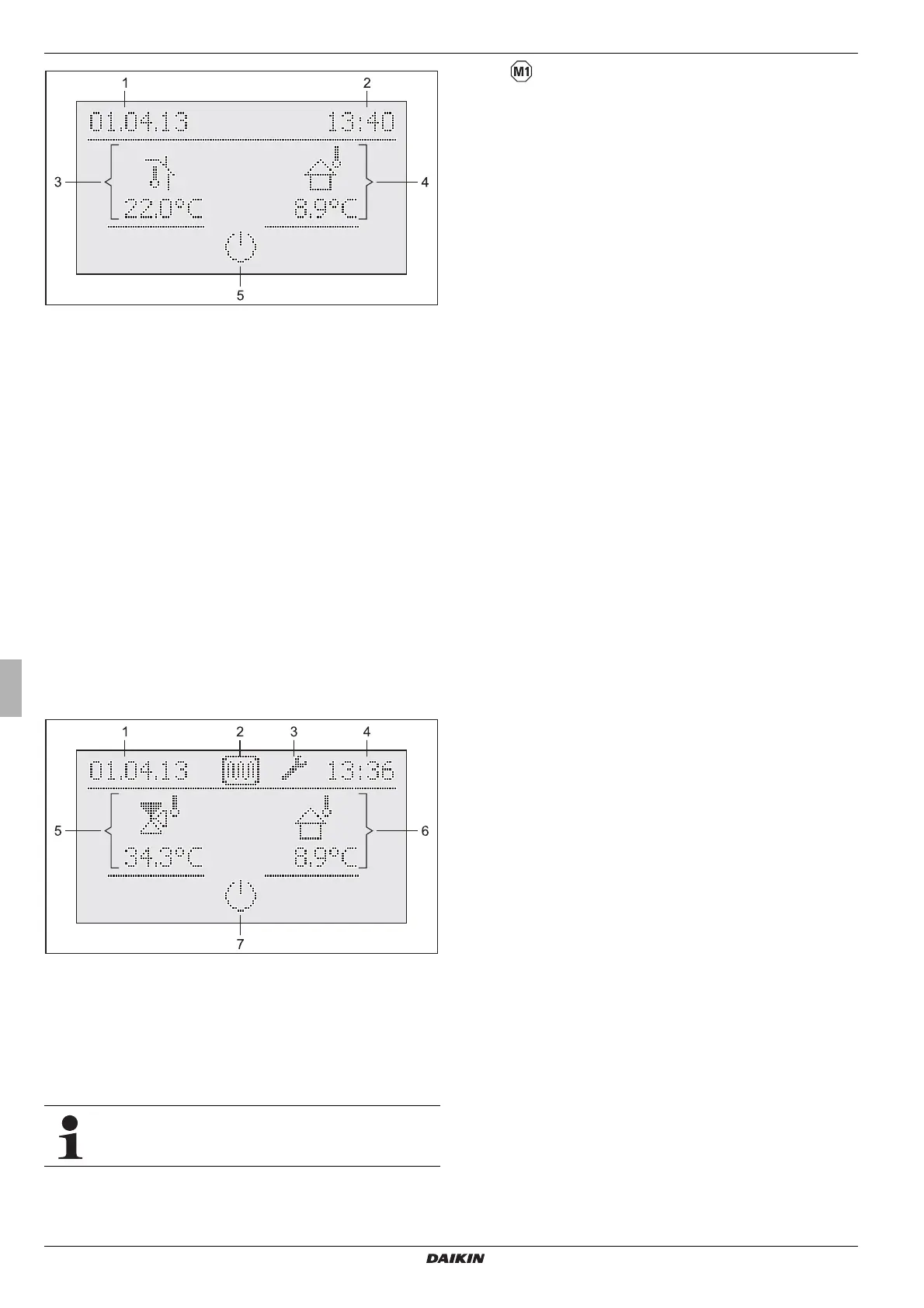

Fig. 4-4 Standard display EHS157068 - "Living Room"
Operating instructions
36
Daikin RoCon HP
Daikin Controller
008.1420844_13 – 02/2016
4 x Initial start-up
 The settings on the EHS157034 room station are only
valid for the assigned heating circuit (except in the case of
active terminal function).
B: Configuration for setting "Mixing Valve"
● Confirm the setting "Mixing Valve" by briefly pressing the
rotary switch.
 Setting of the heating circuit ID (parameter [HC Assign-
ment]) is displayed.
● Us
e the rotary switch to set the[HC Assignment] parameter.
This parameter must be identical to the setting of the address
switch in the mixer module (see fig. 4-2), that is allocated to
the room station EHS157034.
● C
onfirm the changes with a brief push of the rotary switch.
 Setting of the terminal ID (parameter [Terminaladress]) is
displayed.
● U
se the rotary switch to set the [Terminaladress] parameter.
 Standard display is shown (see fig. 4-4).
1 Display date
2 Status display: Screed func-
tion active
3 Status display: Technician
login
4 Display time
5 Current inflow temperature
o
f the mixer circuit
6 Current outside temperature
7 Operating mode setting for
t
he assigned heating circuit
Fig. 4-5 Standard display EHS157068 - "Mixing Valve" with example
of the
status displays
In the setting "Mixing Valve" the room sensor of the
EHS157068 is deactivated.
4.4.3 Allocating mixing module EHS157068 to a
heat generator
If just 1 heat generator is incorporated in the RoCon system,
adaption of the heat generator ID is not necessary (see tab. 4-1).
If adaptions need to be made, the value of the parameter [Boiler
Assignment] (see chapter 6, tab. 6-15) must be set to the same
value as the heat generator ID of
the Daikin Altherma EHS(X/H),
that is intended to supply the mixer circuit of this mixer module.
4.4.4 Master-RoCon function
Each room station EHS157034, whose heating circuit ID is set to
a direct heating circuit, can be allocated the Master-RoCon
function.
● Enter the technician code (see section 3.6.1).
 The "Setup" level is displayed after entering.
● Select the [Master-RoCon] parameter using the rotary
switch.
● C
onfirm the changes with a brief push of the rotary switch.
 The setting for the parameter is displayed.
● Using the rotary switch, set the parameter for the function to
"On" and confirm by pressing it quickly.
All settings on the EHS157034 ro
om station act in the same
way as settings on the RoCon B1 B1 con
trol panel for the as-
signed heat generator.
As a result, the functions for hot water preparation can also be re-
motely operated from the room station.
Since, in this setting, the control unit RoCon B1 has control over
the allocated heating circuit, the settings made on the control unit
of the Daikin Altherma EHS(X/H), only have an effect only on the
heat generator, but not on the heating circuit (see section 4.1).
4.4.5 Caretaker function
The caretaker function equates to the terminal function (see
chapter 3.4.9 and section 4.1 under parameter [Terminala-
dress]).
