3 Operation
3.1 General
DANGER!
If electrical components come into con-
tact with water, this can cause an elec-
tric shock as well as potentially fatal
injuries and burns.
● The displays and the buttons on the
Controller must be protected from
the effects of moisture.
● To clean the Controller use a dry
cotton cloth. Using aggressive
cleaning agents and other liquids
can cause damage to equipment or
lead to an electric shock.
Maximum energy utilisation
The most effective energy utilisation is achieved by the
Daikin Altherma EHS(X/H) at the lowest possible
return flow and hot water temperatures.
If an external heat generator (e.g. the optional Backup
Heater) is used at inflow target temperatures of over
50 °C, the efficiency (COP) of the Daikin
Altherm
a EHS(X/H) can be affected negatively 
(depending on the outside temperature).
3.2 Display and operating elements
1 Clear text display
2 Setting: Configuration
3 Setting: Remote Param
4 Rotary switch
5 Setting: Info
6 Setting: Operating Mode
7 Setting: Set Temp Day
8 Setting: Set Temp Night
9 Setting: DHW Set Temp
10 Rotary button
11 Setting: DHW Install
12 Setting: Time Program
13 Exit button

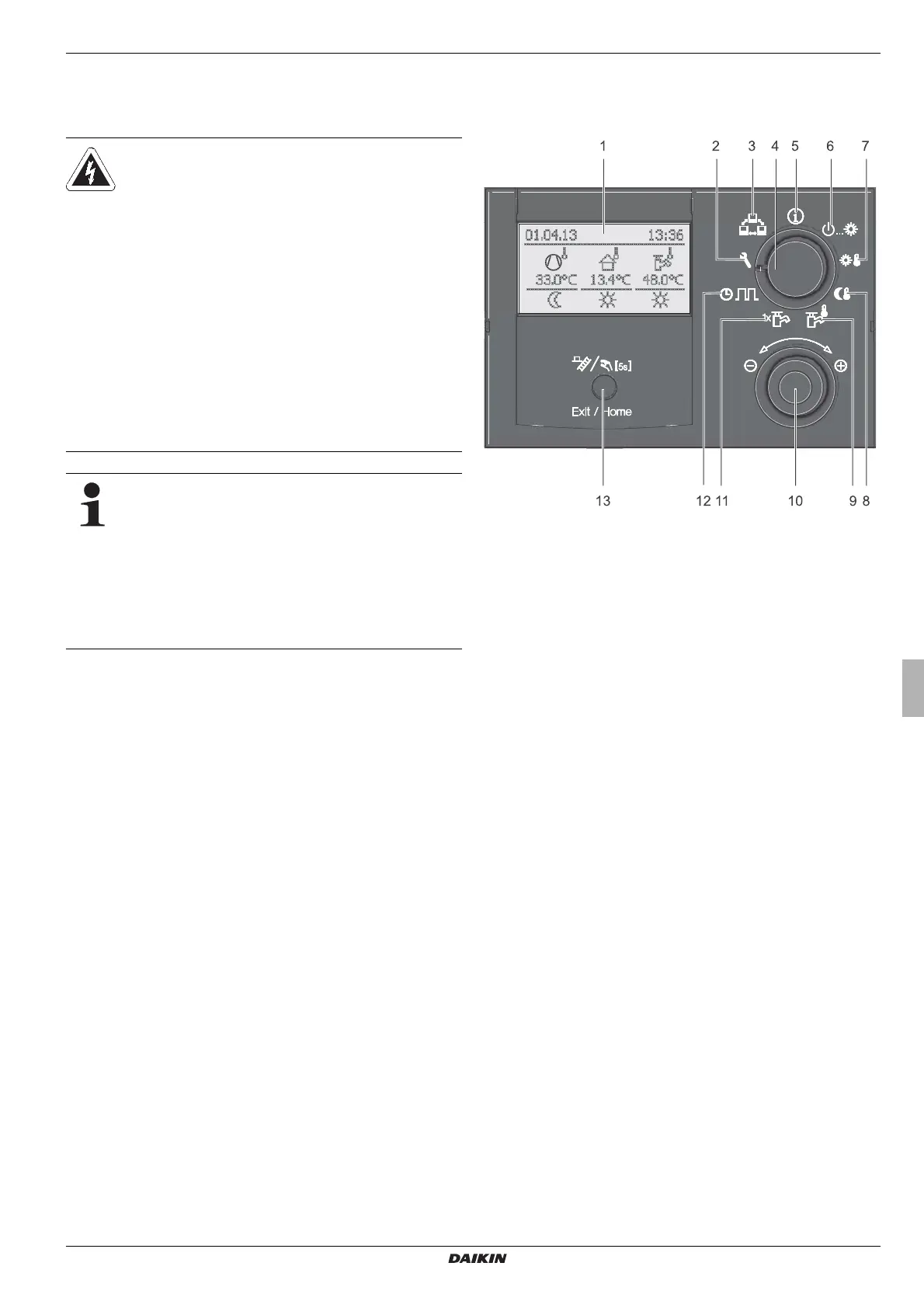

Fig. 3-1 Arrangement of display and operating elements
