Dakewe (Shenzhen) Medical Equipment Co., Ltd
3.Instrument Components and Specifications
3.1 Overview
The automatic tissue processor consists of a dehydration module, which consists of a
control system, a sample transfer system, a retort, and a paraffin tank.
The processor is principally composed of a hardware control system, a fluid system, a
sample transmission system, a dehydration cylinder, a paraffin cylinder, an airway module,
and a man-machine interactive system, etc.

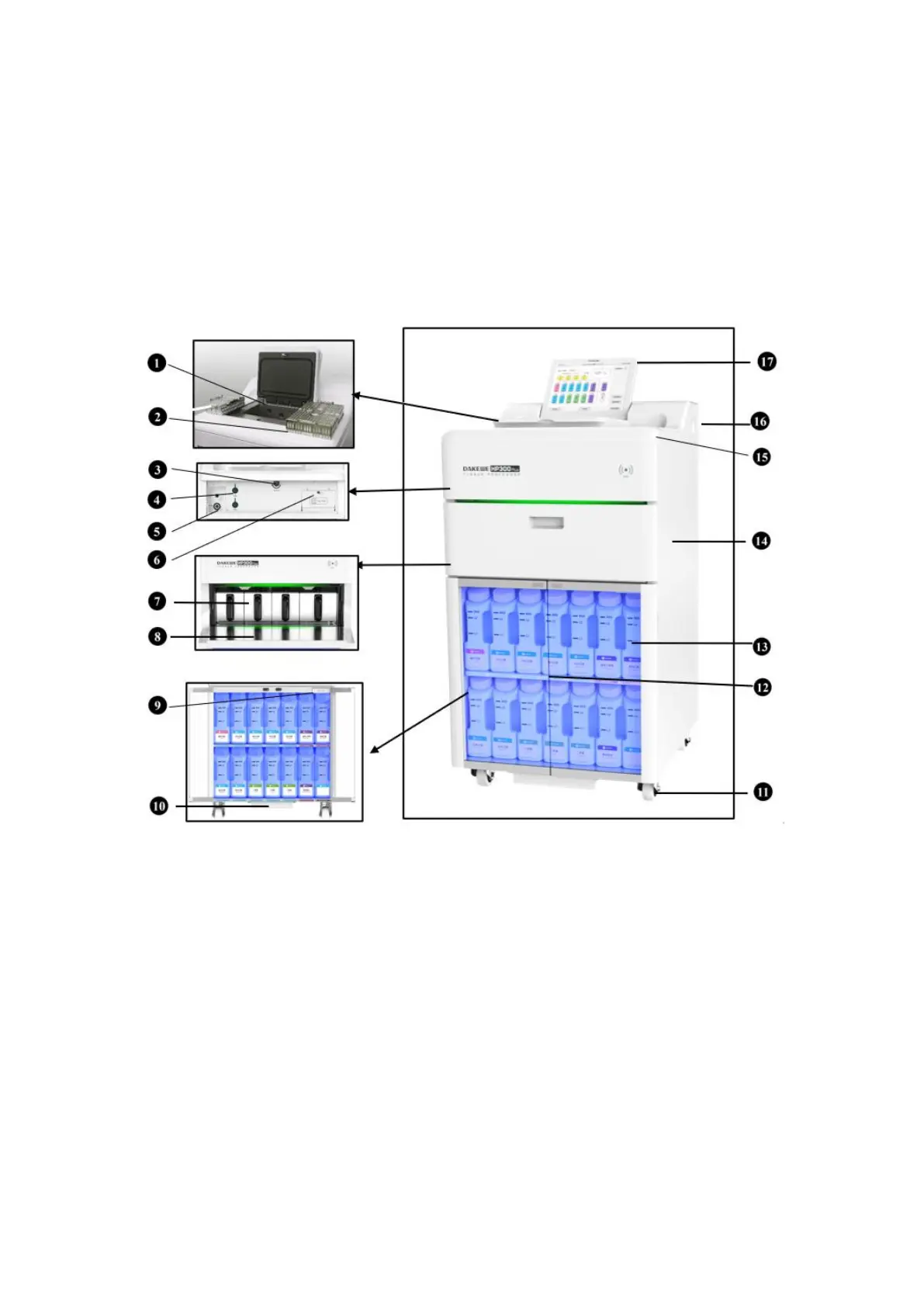

1 Dehydration cylinder
2 Tissue sample basket
3 Electronic lock and manual opening
knob for dehydration cylinder lid
4 USB port
5 Automatic fluid change connector
6 Active carbon filter
7 Paraffin cylinders (4)
8 Paraffin case door
9 Waste paraffin collection tray
10 Waste Collection Tray
11 Caster (4)
12 Reagent compartment’s glass door
13 Reagent bottles (14)
14 Host
15 Workbench area
16 Power switch
17 12.1inch color touch LCD screen
Figure 2 Front of HP300 Plus Automatic Tissue Processor
