DAKEWE HP300 Plus - 7.2 Paraffin Filling; Evacuation; Replacement

Dakewe (Shenzhen) Medical Equipment Co., Ltd
75
7.2 Paraffin Filling / Evacuation / Replacement
There are two marks on the inner wall of the paraffin cylinder, indicating the highest and
lowest filling liquid levels during paraffin filling. The liquid levels must be between
these two marks and can be filled with paraffin particles, paraffin blocks or liquid
paraffin.

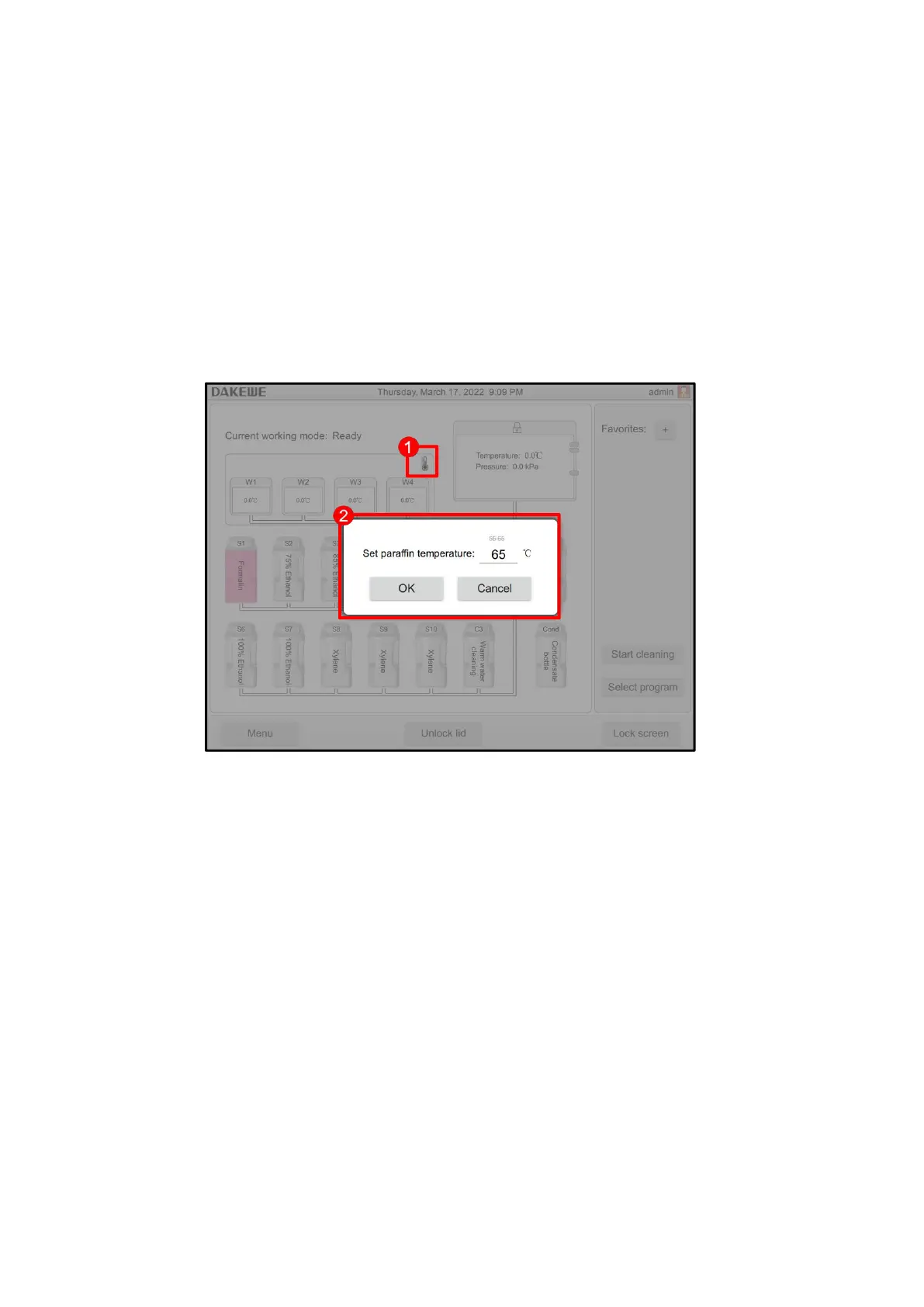

 Set the paraffin melting parameters: Click the temperature icon (Figure 68-1).
The paraffin temperature setting window pops up. Enter the melting
temperature of the filled paraffin (Figure 68-2).

Open the paraffin case door. A message pops up on the screen to ask what to
do (Figure 69).
Figure 68
Figure 69
