W-1267 (10')
LAPTOP COMPUTER
USB
USB USB
NETWORK
DAKTENNIS
25FT CABLE WITH BASE STATION
0A-1065-0173
RS232
TX/RX
TB1
JUMPERS
12-N
13-P
A-2221
USB TO SERIAL
ADAPTER @2
5+
6-
23
8 79
5
4
6
1
A-3430138
JB1 - PIN OUT
PIN #
J1-4
J1-6
J1-5
J1-1
J1-3
J1-2
FUNCTION
N/C
CL TX+
DC GND, CL TX-
12-24VDC +
J1-7
J1-8
J1-9
W-1234,
22AWG, 2 PAIR W/SHIELD
MAX 125FT.
RC-200 CONTROLLER
0A-1110-0062
INSERT: LL-2607
CODE: 08
NOTE:
THE RC-200 CONTROLLER(S) USE ANY
GROUP/CHANNEL. HOWEVER, THE BASE STATION
AND RC-200 CONTROLLER(S) MUST BE
OPERATING ON THE SAME GROUP/CHANNEL. MAX
OF 8 RC-200 CONTROLLERS CAN BE USED WITH 1
BASE STATION.
0A-1196-0099
JB1 - JUNCTION BOX
0A-1196-0167
JB2 - JUNCTION BOX
OUTDOOR BASE STATION
0A-1110-0068
FUNCTION SETTING = 2
ANY GROUP/CHANNEL
J1
0A-1065-0173
RS232
TX/RX
TB1
1+
2-
TO SCOREBOARD(S),
22AWG, 2 PAIR W/SHIELD
JB2 - PIN OUT
PIN #
J3-4
J3-6
J3-5
J3-1
J3-3
J3-2
FUNCTION
DC GND, CL TX-
RS232 RX +
12-24VDC +
CL TX+
NOT USED
RS232 TX +
TERMINAL CONNECTION
TB2-1
TB1-1
TB1-2
N/C
J2
J1
J2
W-1267 (10')
JUMPERS
12-N
13-P
W-1234
22AWG, 2 PAIR
W/SHIELD
CLEAR LINE OF SIGHT
N/C
N/C
N/C
N/C
N/C
N/C
N/C
CONTROL LOCATION
REMOTE LOCATION UP TO 125FT
AWAY.
ALLSPORT
5010R6
J1J2J3J4J6J7
OPTIONAL
ALLSPORT 5010 OR 5100
SERIES, WITH RADIO
CODE 5900
OPTIONAL W-1249 (6')
TO SCOREBOARD VIA RADIO
OPTION
OPTIONAL
0A-1110-0108 (3')
TERMINAL
N/C
N/C
TB2-1
TB1-1
TB1-2
N/C
N/C
N/C
N/C
CONNECTION TO
N/C
N/C
TB1-6
N/C
TB1-5
N/C
N/C
N/C
N/C
CONNECTION CONVERTER
REV
TITLE:
PROJECT:
INCHES [MILLIMETERS]
DESIGN:
SCALE:
DIM UNITS:DATE: SHEET
DO NOT SCALE DRAWING
FUNC - TYPE - SIZE
DRAWN: -
JOB NO.
-
RC-200 TENNIS

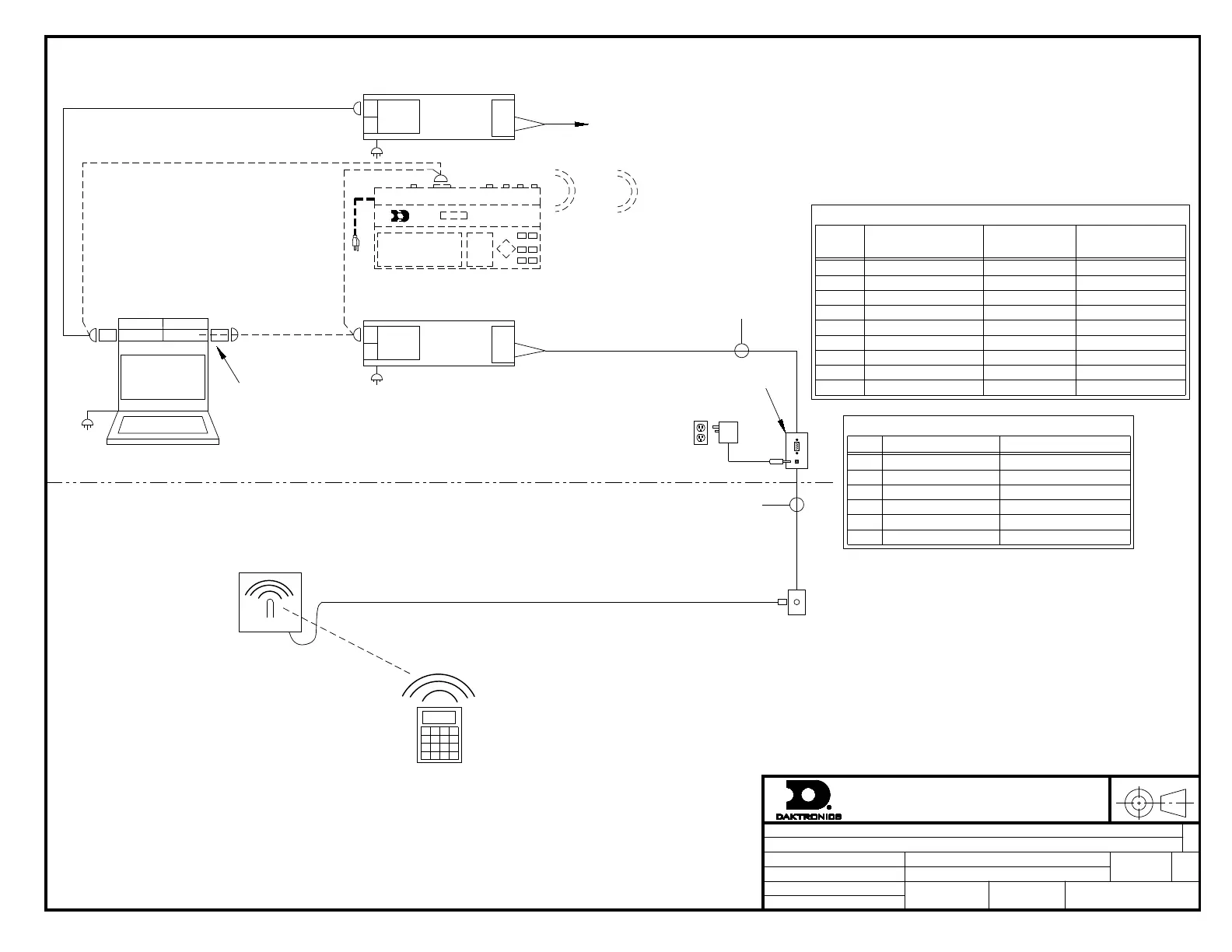

SYSTEM RISER; TENNIS; REMOTE BASE STATION
AHUNTER
15 MAY 17
P1110 R 01 A
NONE
KBIERBA
3640082
00
