THIRD ANGLE PROJECTION

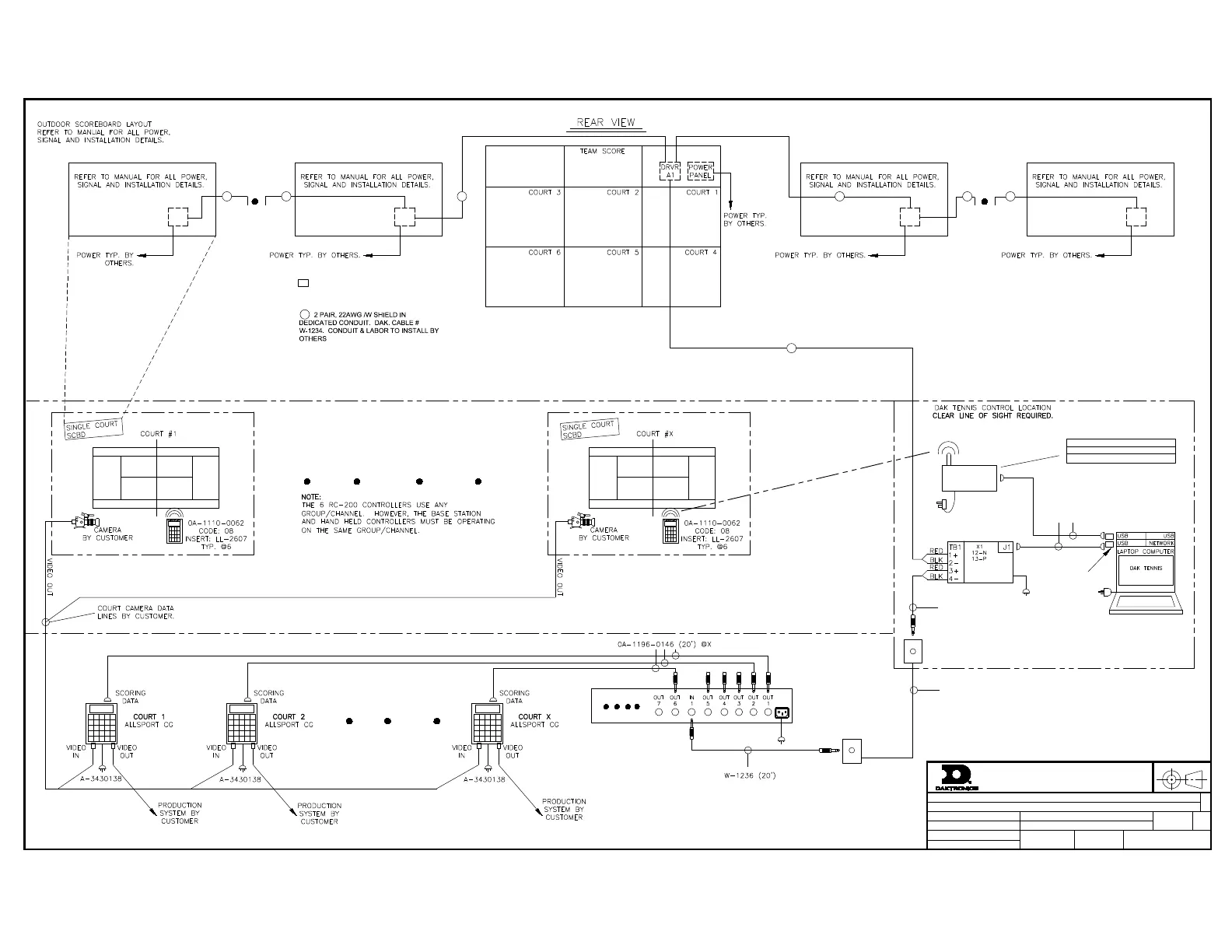

SINGLE COURTSINGLE COURT SINGLE COURTSINGLE COURT
PS: INTERNAL PWR/SIG. TERM LOCATION.
EXACTLY LOCATION IS DETERMINED BY
MODEL PURCHASED.
PS PS PS PS
1 1 1 1 1 1
TYP. USB TO SERIAL
ADAPTERS BY
OTHERS.
0A-1009-0038
2"X4" J-BOX
0L-40683 (10')
0A-1065-0173
SIGNAL CONVERTER
W-1267 (10')
PWR
RS232
A-3430138
0A-1110-0066 BASE STATION KIT.
TYPICAL SETTING:
FUNCTION = 2
ANY GROUP/CHANNEL
SERVER JUMPER ENABLED.
NOTE: SEE DRAWING 3640082 AND
OUTDOOR BASE STATION 0A-1110-0067 IF
YOU NEED TO REMOTE LOCATE, FOR
BETTER LINE OF SIGHT.
0A-1009-0038
2"X4" J-BOX
0A-1065-0197 1 TO 15
DISTRIBUTION AMP. 1RU,
REAR VIEW SHOWN BELOW
W-1077, 1 PAIR, 22AWG MINIMUM IN
CONDUIT WHERE REQUIRED.
1000FT MAX. DISTANCE
PRODUCTION LOCATION
ALLSPORT CG SETUP
1
1
REV
TITLE:
PROJECT:
INCHES [MILLIMETERS]
DESIGN:
SCALE:
DIM UNITS:DATE: SHEET
DO NOT SCALE DRAWING
FUNC - TYPE - SIZE
DRAWN: -
JOB NO.
-
TENNIS SCOREBOARDS
SYSTEM RISER; TENNIS; OUTDOOR MULTI-COURT, CG
AHUNTER
16 MAY 17
P1164 R 01 B
NONE
MMILLER
3640342
00
