4.5.10 CAN interface
The integrator must select impedance according to the desired CAN bus terminations. Verify your product
number and see the related figure:
• All INV-HP2HV_0206-XX (CO200-A3) except -18 & -20, see Figure 16.
• INV-HP2HV_0206-18 & INV-HP2HV_0206-20, see Figure 17.

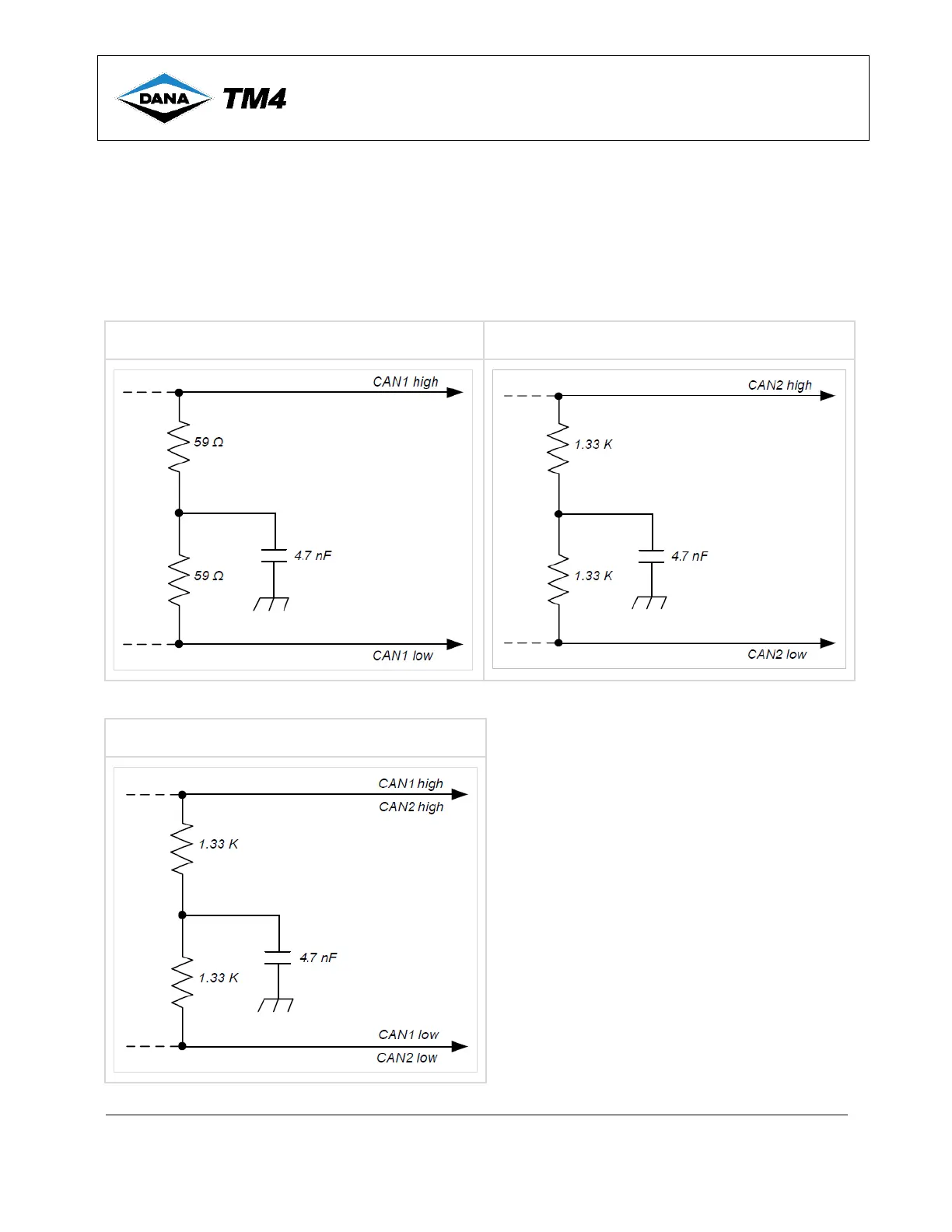

Figure 16 INV-HP2HV_0206-XX (A3): CAN bus termination
CAN1 = Terminated CAN2 – Not terminated
Figure 17 INV-HP2HV_0206-18 / INV-HP2HV_0206-20: CAN bus termination
CAN1 & CAN2 = Not terminated
