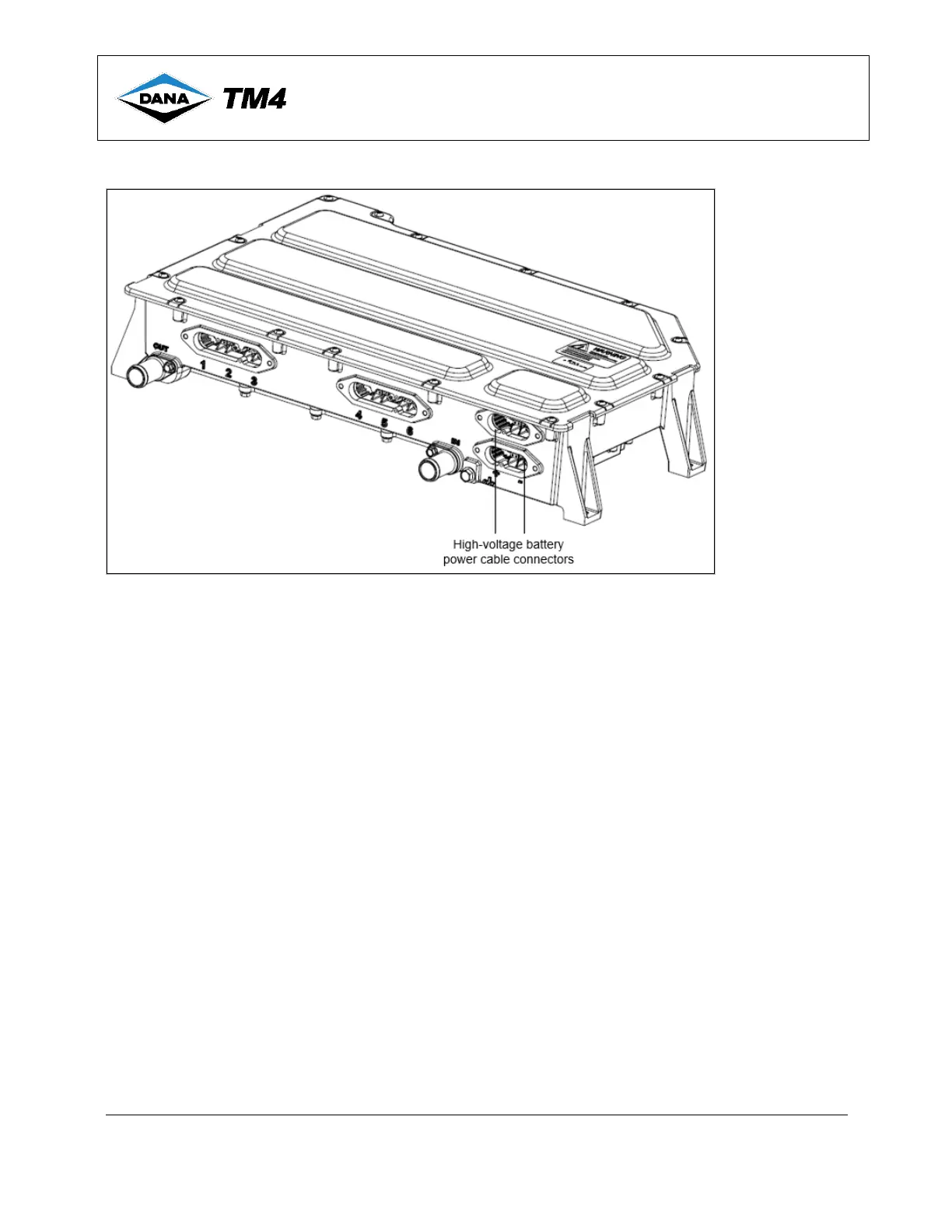

Figure 14 High-voltage battery – Cable connector location
Note: Remove snap-fit cap before installing the cable connectors as per instructions in the product Interface drawing.
Some product variants use both available connectors in their integration. For cable preparation information, see [13].
4.5.8.8.1 Using a single DC input
When using a single DC input, ensure that the DC connector is always connected in the lower connection
port with the upper connection port protected by the blanking plug provided by TM4 in Kit-0149.
