Danfoss 102 User Manual

Q3-21
130BT764.10
6-10 Terminal 53 Low
Voltage
0.00 V
0.00A
Analog Reference

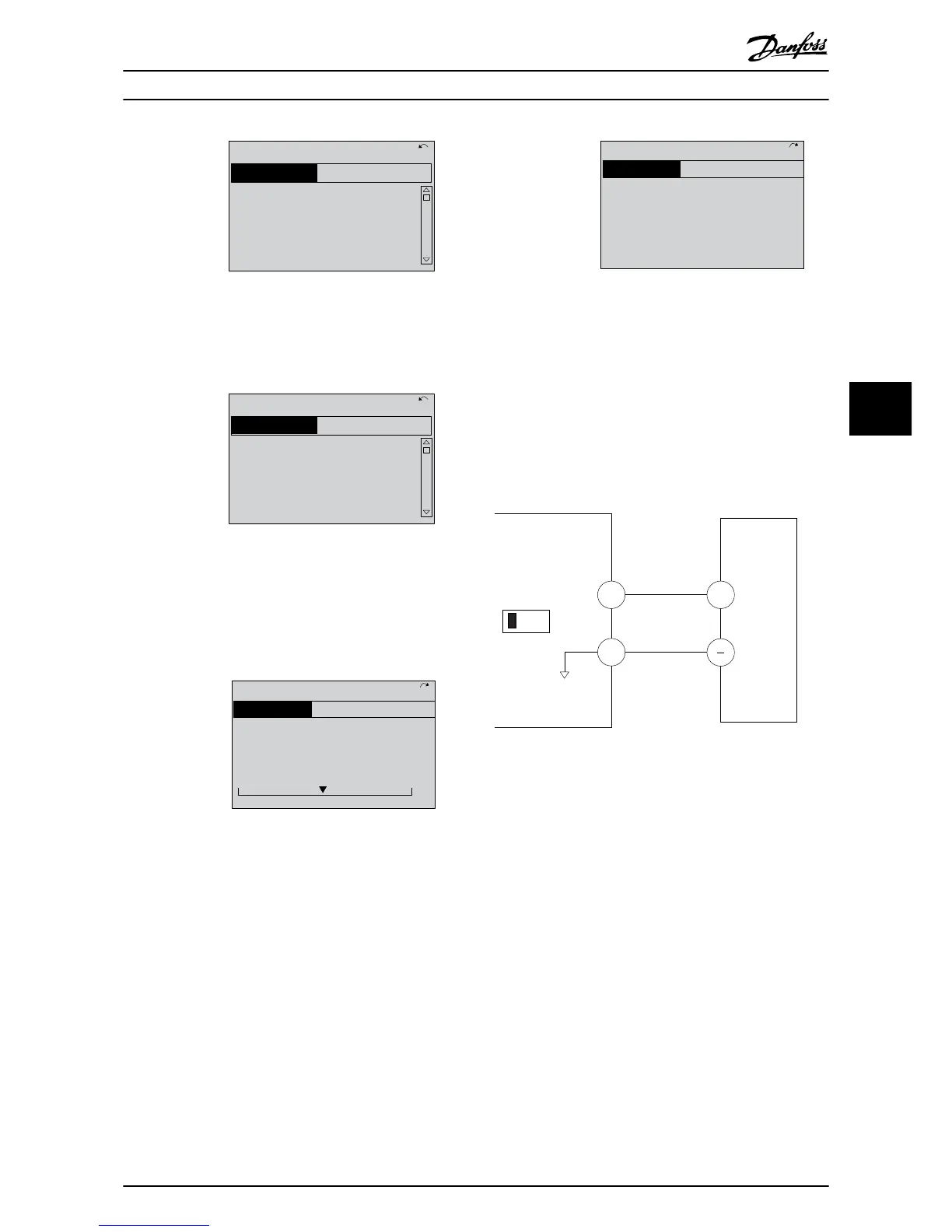

Illustration 5.4 Analog Reference 6-10 Terminal 53 Low
Voltage
5.
6-11 Terminal 53 High Voltage. Set maximum
external voltage reference on Terminal 53 at 10 V.
(This sets the maximum input signal at 10 V.)
Q3-21
130BT765.10
6-11 Terminal 53 High
Voltage
10.00 V
0.00A
Analog Reference
Illustration 5.5 Analog Reference 6-11 Terminal 53 High
Voltage
6.
6-14 Terminal 53 Low
Ref./Feedb. Value. Set
minimum speed reference on Terminal 53 at 6
Hz. (This tells the frequency converter that the
minimum voltage received on Terminal 53 (0 V)
equals 6 Hz output.)
130BT773.11
Q3-21
14.7 % 0.00 A 1(1)
Analog Reference
6 - 14 Terminal 53 Low
Ref./Feedb. Value
000020.000
Illustration 5.6 Analog Reference 6-14 Terminal 53 Low
Ref./Feedb.
Value
7.
6-15 Terminal 53 High
Ref./Feedb. Value. Set
maximum speed reference on Terminal 53 at 60
Hz. (This tells the frequency converter that the
maximum voltage received on Terminal 53 (10 V)
equals 60 Hz output.)
130BT774.11
Q3-21
14.7 % 0.00 A 1(1)
Analog Reference
6 - 15 Terminal 53 High
Ref./Feedb. Value
50.000
Illustration 5.7 Analog Reference 6-15 Terminal 53 High
Ref./
Feedb. Value
With an external device providing a 0-10 V control signal
connected to frequency converter terminal 53, the system
is now ready for operation. Note that the scroll bar on the
right in the last illustration of the display is at the bottom,
indicating the procedure is complete.
Illustration 5.8 shows the wiring connections used to
enable this set up.
53
55
6-1*
+
A53
U - I
130BB482.10
0-10V
Illustration 5.8 Wiring Example for External Device Providing
0-10 V Control Signal
(Frequency Converter Left, External Device
Right)
5.3 Control Terminal Programming
Examples
Control terminals can be programmed.
•
Each terminal has specified
functions it is capable
of performing
•
Parameters associated with the terminal enable
the function
See Table 2.4 for control terminal parameter number and
default setting. (Default setting can change based on the
selection in 0-03 Regional Settings.)
The following example shows accessing Terminal 18 to see
the default setting.
About Frequency Converter P...
VLT
®
HVAC Drive Operating Instructions
MG11AI02 - VLT
®
is a registered Danfoss trademark
37
5 5
