Danfoss 51 Series Service Manual

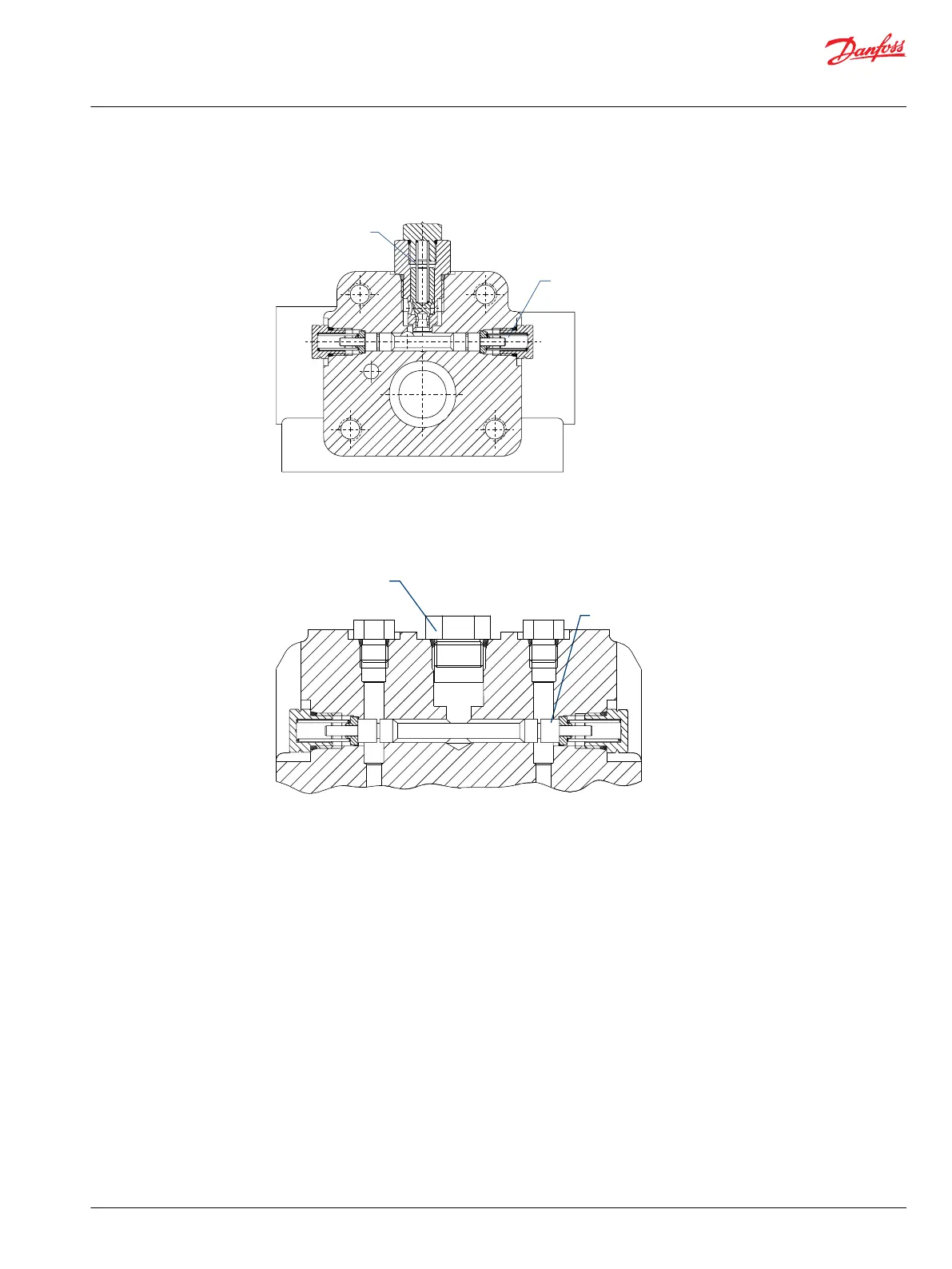

Loop flushing cross-section showing defeated relief valve
Orificed
relief
valve
Shuttle
valve
P101 194
A plug is installed in the relief valve cavity to defeat the loop flushing function.
Defeated loop flushing
Defeat
plug
Shuttle spool
P101 265E
Displacement limiters
Series 51 and Series 51-1 motors incorporate mechanical displacement limiters. You can set a specific
displacement range by limiting the travel of the valve segment/rotating group.
Service Manual
Series 51 and 51-1 Motors
