Danfoss 51 Series Service Manual

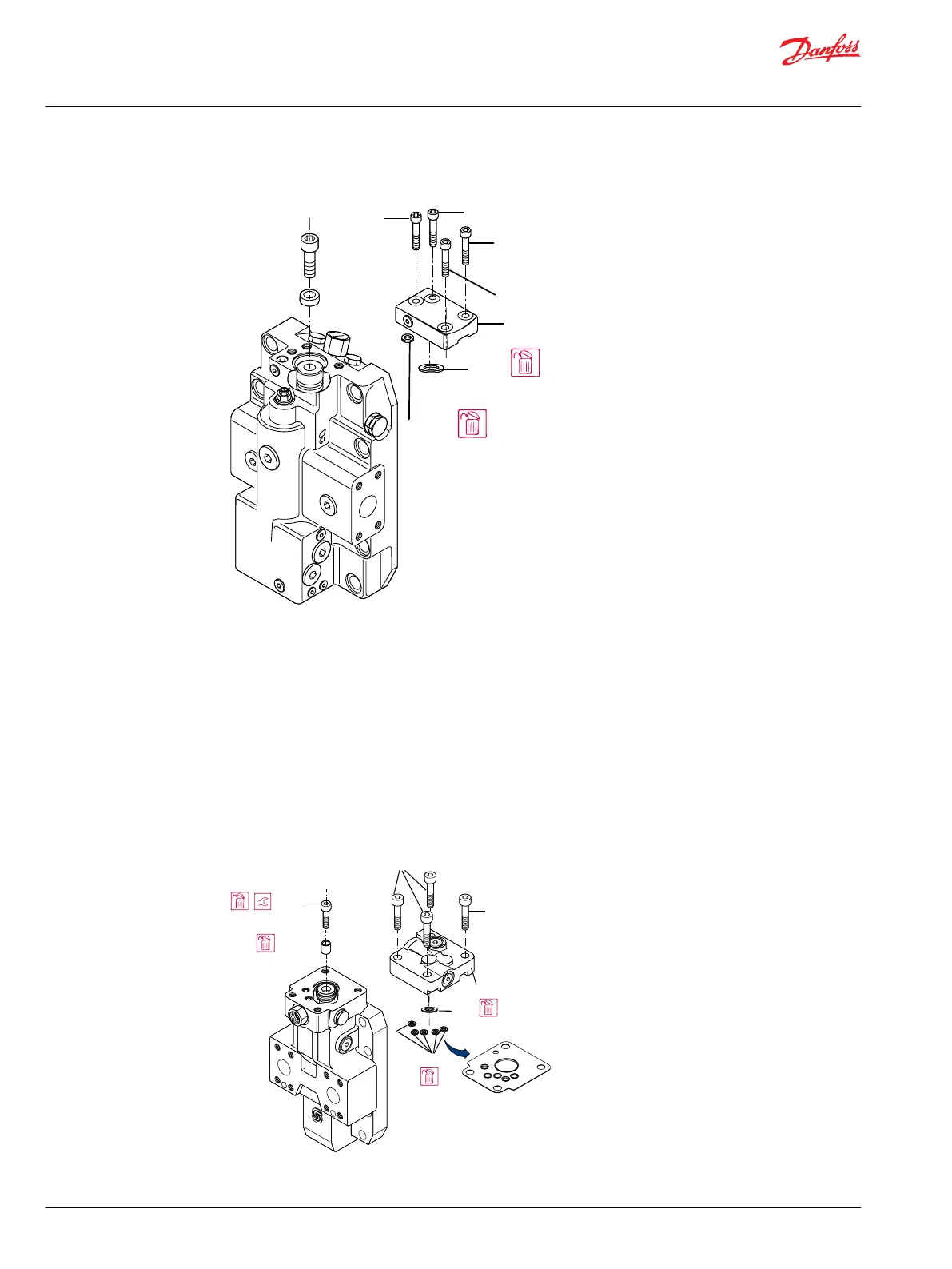

Series 51 motors
F10*
F20*
G24
G24
G24
G24
G260
G36
G100
P101 223E
1. Remove the 4 screws (G24) retaining the servo cover (G260) using:
•
an 8mm hex wrench (060cm³, 080cm³, 110cm³, and 160cm³ motors),
or
•
a 10 mm hex wrench (250cm³ motors).
2. Remove the servo cover (G260) and O-rings (G36) and (G100).
3. Remove the displacement limiter screw (F10) and spacer (F20)(if used) with a 10 mm hex wrench for
60cm³, 80 cm³, 110 cm³, 160 cm³ and 250 cm³ motors.
4. Save original spacer, replacing each with the appropriate spacer and screw to achieve the desired
maximum displacement. (See the chart on the next page).
Series 51-1 motors
F10*
F20*
M16
M16
G42
G36
Control
P101 222E
or
1. Remove the 4 screws (M16) retaining the control assembly using an 8 mm hex wrench.
Service Manual
Series 51 and 51-1 Motors
Adjustments
36 |
©
Danfoss | March 2016 11008567 | AX00000013en-US0202
