7. Check and adjust the charge relief valve to the proper setting.

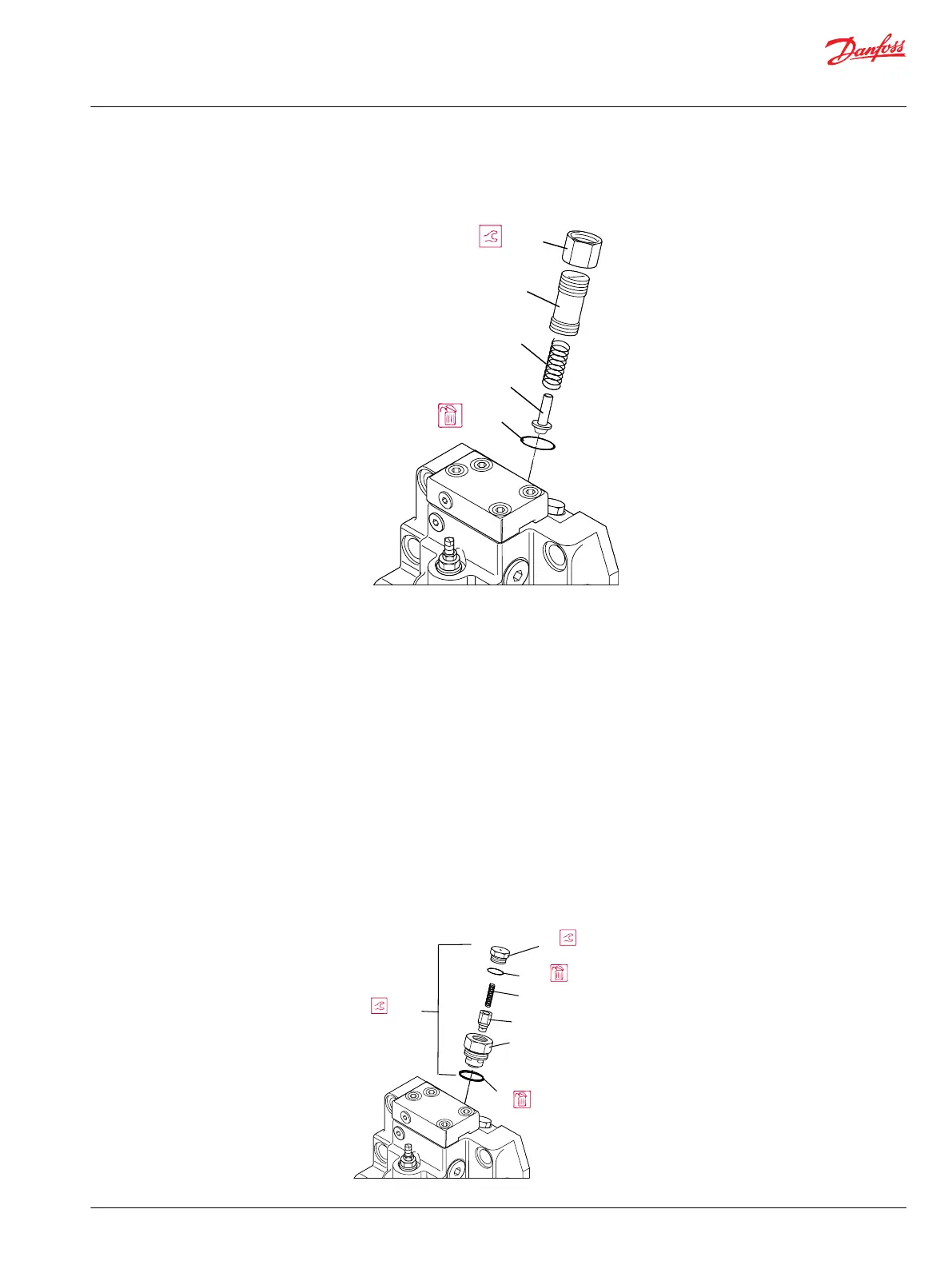

Poppet charge relief valve
K90
K50
K80
K70
K10
P101 227
Orificed style
Disassembly
1. Thoroughly clean all external surfaces before disassembly.
2. Remove cartridge (K000) from the cavity in the endcap using a 1 inch hex wrench.
3. Remove O-ring (K50) from the cartridge.
4. Discard O-ring after inspecting the new one to make certain that it fits.
5. Disassemble cartridge (K000) using 1 inch and 11/16 inch hex wrenches.
6. Remove plug (K95).
7. Remove O-ring (K95A).
8. Discard the O-ring after inspecting the new one to make certain that it fits.
9. Remove spring (K70).
10. Remove poppet (K80).
Orificed charge relief valve
K50
K80
K70
K10
K95A
K95
K000
P101 227
Service Manual
Series 51 and 51-1 Motors
Minor repair
©
Danfoss | March 2016 11008567 | AX00000013en-US0202 | 45
