User Guide Danfoss Ally™ Power Module 24V

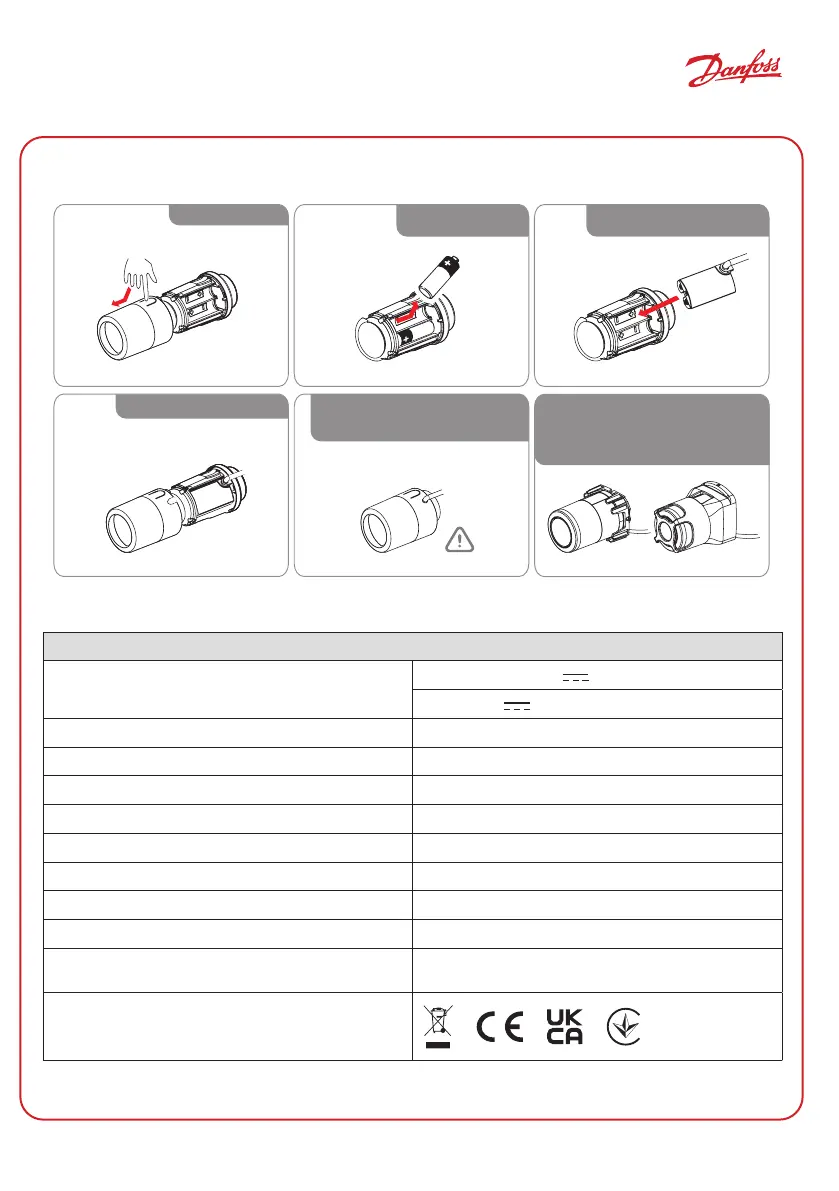

13.1 Installation
5
Connect the cable to the existing 24 V supply
from a safe source with class II insulation
level (see quick guide attached for details)
4
Use the cover provided in the box
1
Remove the cover
2
Remove the batteries
(if tted)
3
Insert the Danfoss Ally™
Power Module 24V in the same place
When using Danfoss Ally™ Protect RA it
is important to install Danfoss Ally™ Power
Module 24V before completing the installation
of Danfoss Ally™ Protect RA. The cable should
go inside one of the cable tracks.
6
13.2 Technical Specifications
Danfoss Ally™ Power Module 24V
Power supply
Input: 24V~ or 24V SELV +/-25
Output: 3V -5%/+25%
Power cable 2 m 0.75 mm2 H05VVH2-F
Ambient temperature range 0 to 40 °C
Transportation temperature range -20 to 65 °C
Safety classification Type 1
Pollution degree 2 PD2
Overvoltage category I OVI 1,5 kV
Color RAL 9016
Weight 100 g
IP class
20 (not to be used in hazardous installations or in
places where it will be exposed to water)
Approvals, markings etc.

Danfoss Ally Specifications

General

Accuracy	50 sec/month
Noise level	30 dB
Product color	White
Smart thermostat	Yes
Operating frequency	2400 MHz
Suitable for indoor use	-
Maximum water temperature	90 °C
Storage temperature (T-T)	-20 - 65 °C
Temperature control range	5 - 35 °C
Operating temperature (T-T)	0 - 40 °C
International Protection (IP) code	IP20
Package weight	250 g
Display type	LCD
Battery type	AA
Power consumption (typical)	1.2 W

Weight and Dimensions

Weight	198 g
Diameter	55 mm
