User Guide Danfoss Icon™/Icon2™
14.3 How to install Danfoss Icon™
Danfoss Icon™ Display is a room thermostat especially designed for floor heating systems.
It comes in four different designs to suit markets worldwide. Danfoss Icon™ Display is very intui-
tive and easy to use. Just set your desired comfort temperature, and the thermostat will control
the room temperature in accordance with your setting.

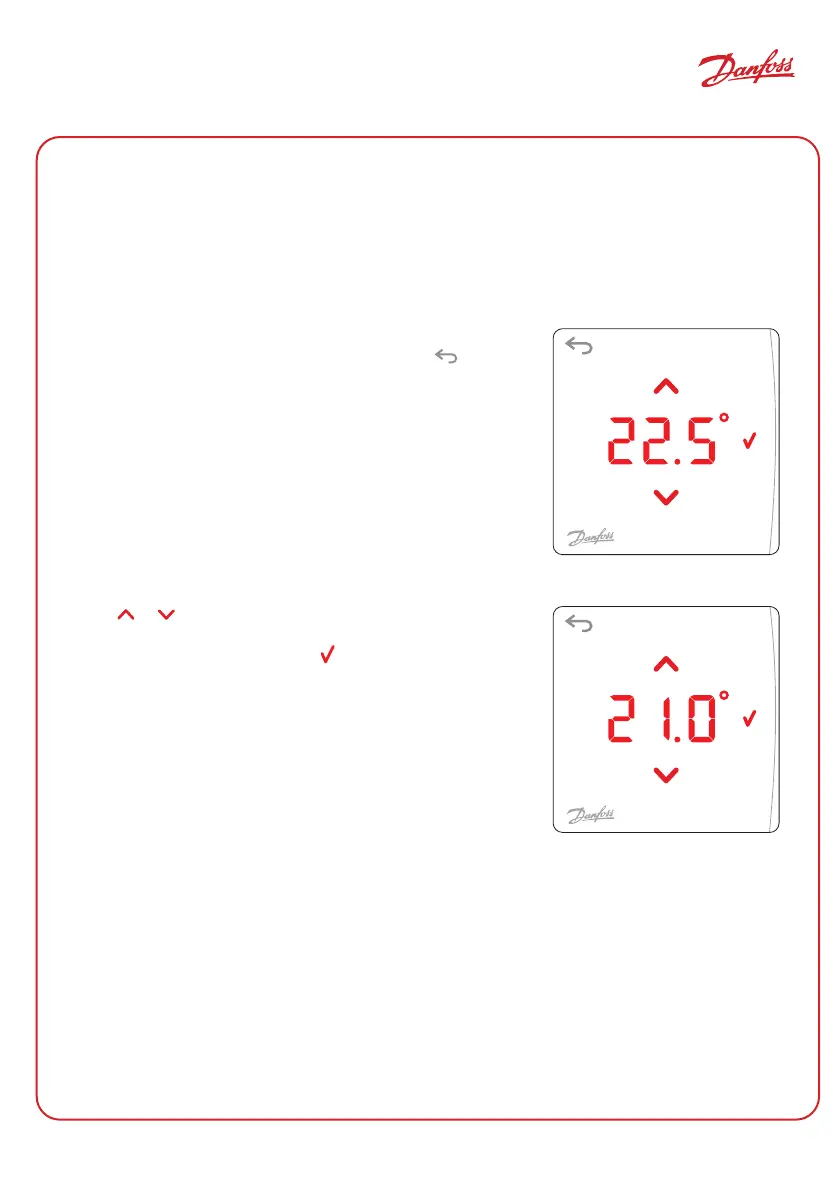

Wake up the thermostat
Touch the screen to wake up Danfoss Icon™ Display.
The actual room temperature is displayed. Touch
to return to the previous screen. The screen turns off after
10 seconds without any action.
Set the temperature
Touch or to set the desired room temperature.
The temperature flashes to indicate setting is in progress.
Confirm your setting by touching

Danfoss Ally Specifications

General

Accuracy	50 sec/month
Noise level	30 dB
Product color	White
Smart thermostat	Yes
Operating frequency	2400 MHz
Suitable for indoor use	-
Maximum water temperature	90 °C
Storage temperature (T-T)	-20 - 65 °C
Temperature control range	5 - 35 °C
Operating temperature (T-T)	0 - 40 °C
International Protection (IP) code	IP20
Package weight	250 g
Display type	LCD
Battery type	AA
Power consumption (typical)	1.2 W

Weight and Dimensions

Weight	198 g
Diameter	55 mm
