Danfoss Ally - 14.4 Connecting Danfoss Icon to Danfoss Ally

34
| © Danfoss | FEC | 2023.06 BC349733524454en-010401
User Guide Danfoss Icon™/Icon2™
14.4 Connecting Danfoss Icon™ to Danfoss Ally™
Before you try to connect them, please mount all wires and install all thermostats to the Icon™
system! The zigbee Module must be connected before power the Master Controller.

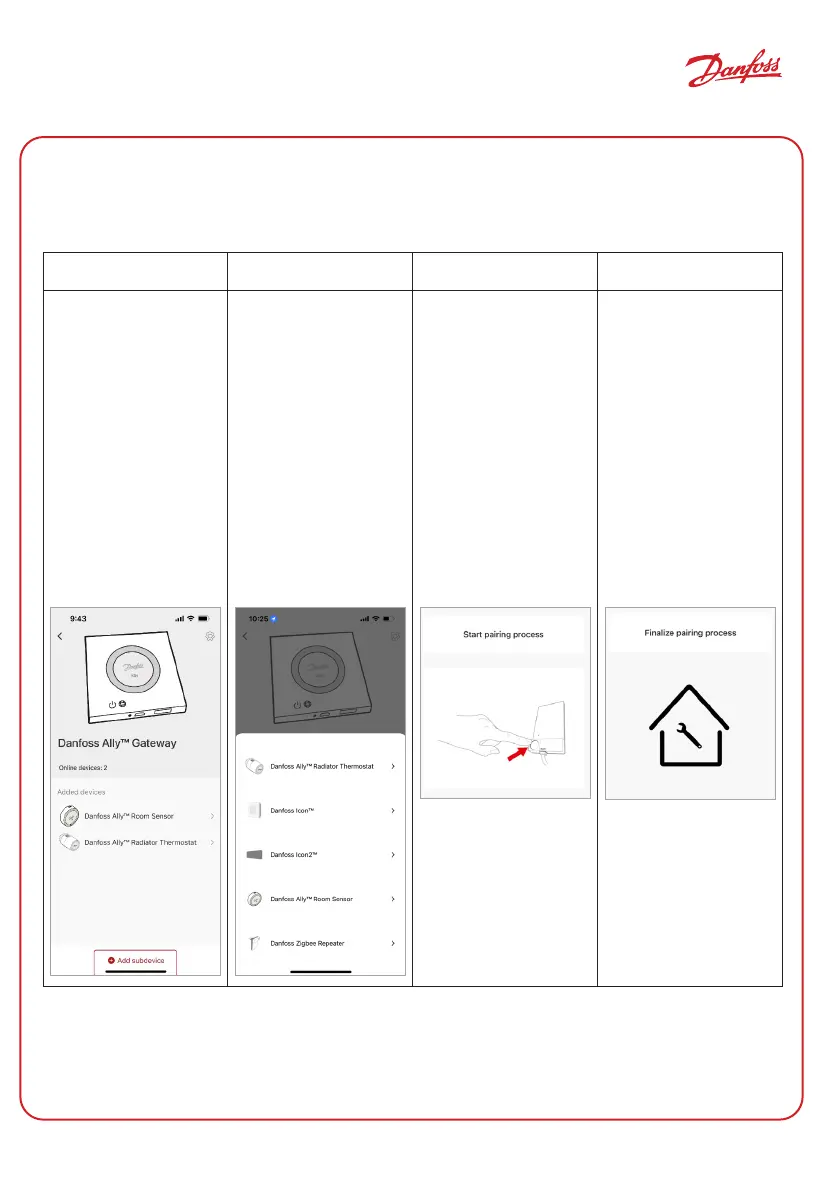

Step 1. Step 2. Step 3. Step 4.
In the Ally™ appli-
cation, click on your
Gateway tile, then
‘Add subdevice’.
Choose Danfoss
Icon™ from the list.
Start the pairing
process. When pow-
ered, the led will be
flashing green slowly
to indicate it is ready
for pairing. Press the
button on the Zigbee
module to continue
pairing process.
Finalize pairing
process. The LED will
be flashing quickly
during the pairing
process. Locate and
select the Icon™
Zigbee module in the
‘search device’ screen
to finalize pairing
process. When Zig-
bee module is paired
to the Ally™ Gateway,
the LED will be on for
2 minutes.
